This 20A Brushed Electronic Speed Controller is a small-sized ESC that can supply a current up to 20A by using a 2S lipo battery as an input. The ESC accepts a standard RC signal as input and offers functions as forward, reverse, and breaking. This ESC has high-quality silicone cables for the battery input and the motor output.


Features:

  1. Continuous Current :20A
  2. Battery Input: 2S Lipo
  3. Can be used with 130/180/260/380 brushed motor
  4. Three Functions: Forward/Reverse/Breaking

Package Includes:

1 x 20A Brushed Electronic Speed Controller


Specifications:

Operating Voltage (VDC)

3 ~ 9

Constant Current

20A

Maximum Current

25A

Battery Input

Li-Po 2S

Driver Frequency

2KHz

Length (mm)

35

Width (mm)

22

Height (mm)

6

Weight (gm)

13

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 529.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

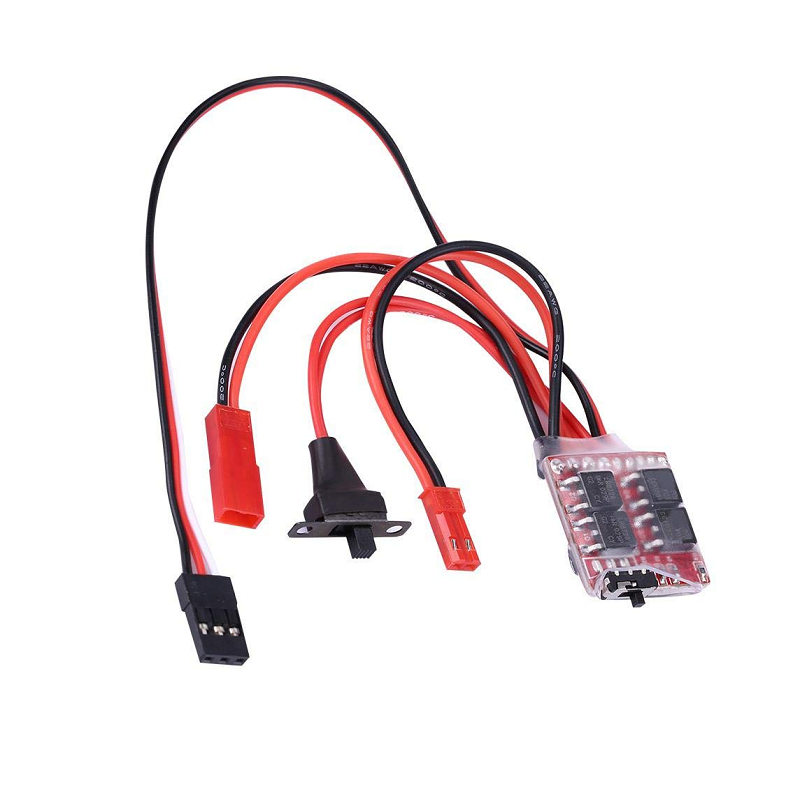

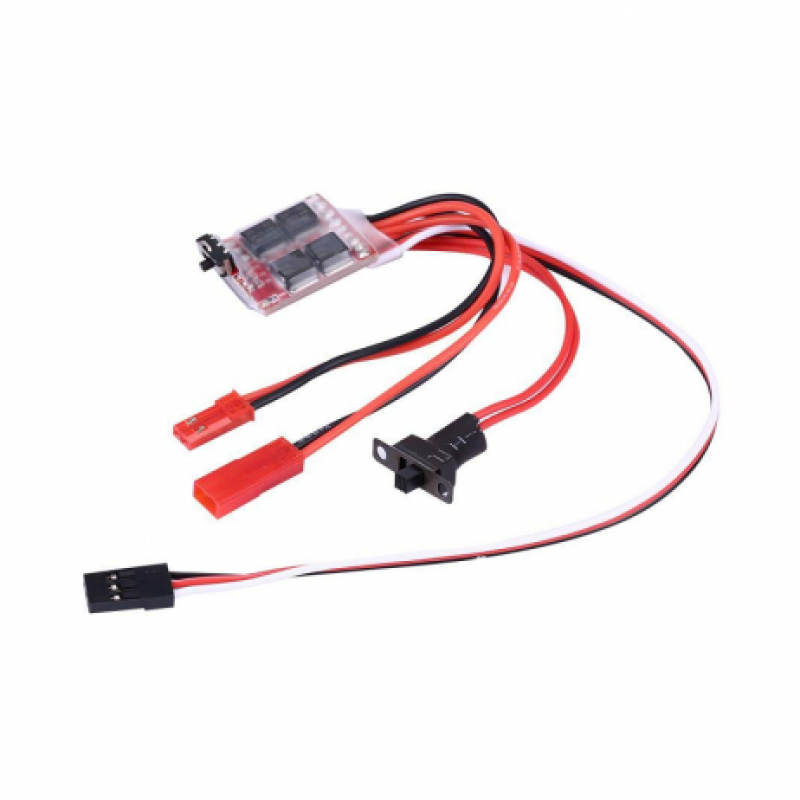

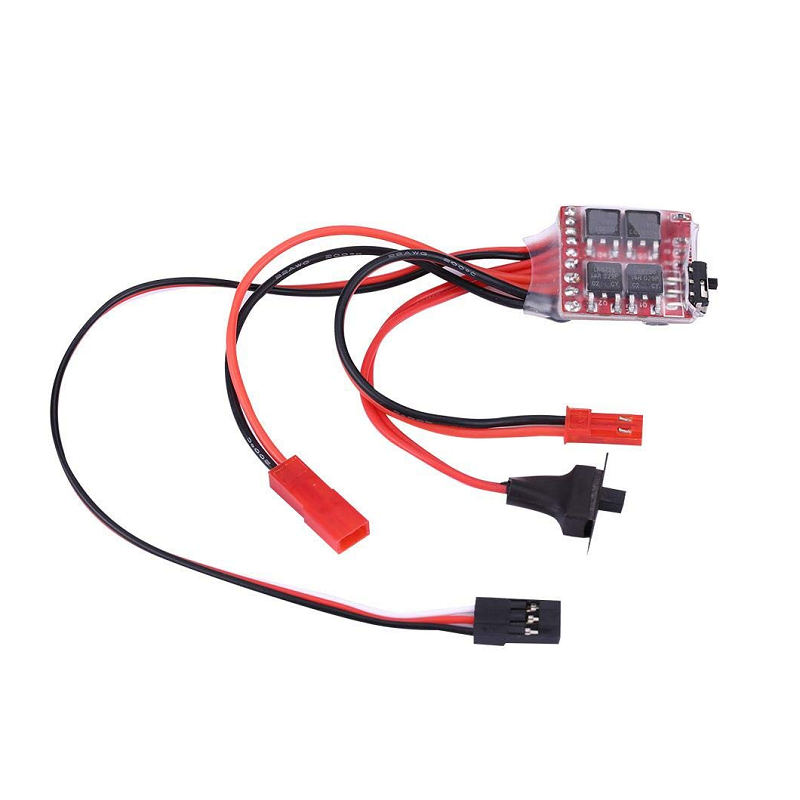

20A Brushed Electronic Speed Controller
