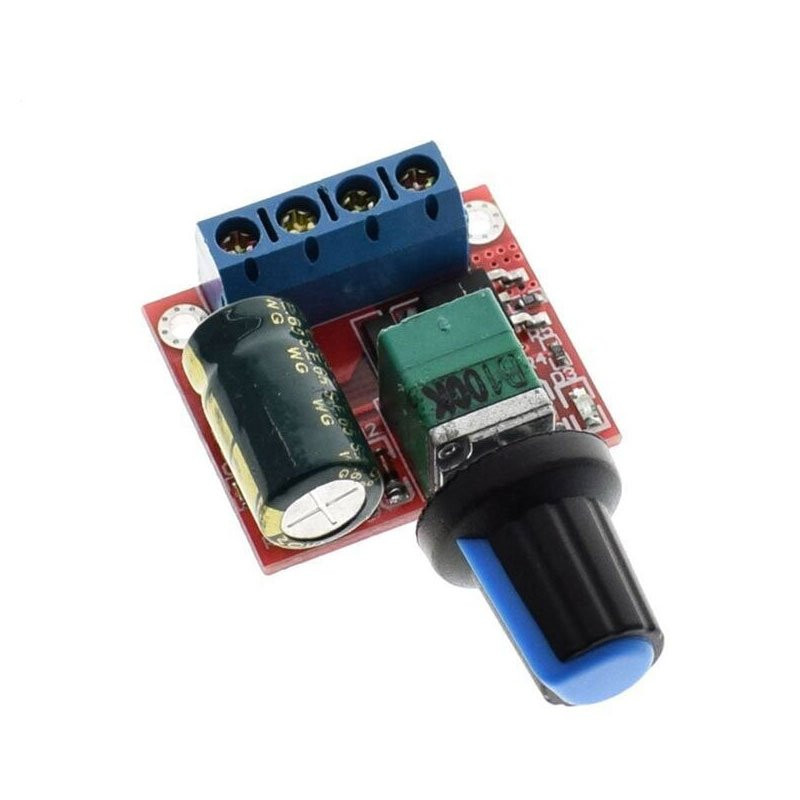

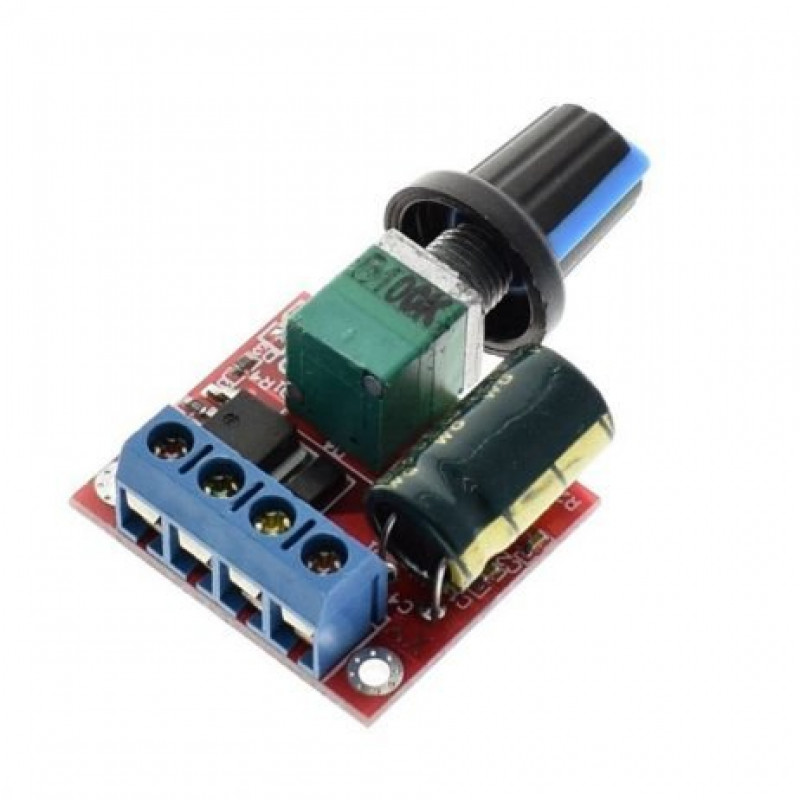

3V 6V 12V 24V 35V PWM 5A DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

Precautions:
  1. DC motor governor input is DC, can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
  2. DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
  3. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
  4. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

Features:

  1. Mini DC 4.5-35V 5A PWM Motor Speed Controller.
  2. Wide voltage DC motor speed controller.
  3. Operating voltage: DC4.5V-35V
  4. Output current: 0-5A
  5. Output power: 90W (max)
  6. PWM duty cycle: 1% -100%.

Package Includes:

1 x 3V 6V 12V 24V 35V PWM DC Motor Speed Regulator


Specifications:

Operating voltage

DC 4.5V-35V

Output current

0-5A

Output power

90W (max)

Quiescent current

7uA (standby)

PWM duty cycle

1% -100%

PWM frequency

20khz

Dimension(mm)

30mm x 26mm x 14mm (Without Handle)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 223.02 (Inclusive of all Taxes)
