This Dual 5A Brushed ESC can be used in small RC projects where small size motors are used. This brushed ESC can be directly connected to the RC receiver. The ESC features two modes i.e. independent and mixed which means this ESC can be used in two ways one is an independent RC channel to control independent motors and the other is one RC channel to control the speed of the motor and another RC channel to control the direction of the motors.
Applications:
- RC Toys
- Small Robots
Features:
- Input voltage: 2-3S
- Output current: 2*5A
- High-quality motor driver IC
- High-quality silicone wires for the motors as well as battery connectors
Package Includes:
1 x Dual 5A Brushed ESC
Specifications:
| Battery Input | 2S 3S Battery |
| Output Current Per Channel | upto 5A |
| Battery Connector | JST Male |
| Motor Connector | JST Female |
| Length (mm) | 35 |
| Width (mm) | 27 |
| Height (mm) | 3 |
| Weight (gm) | 12 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 907.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

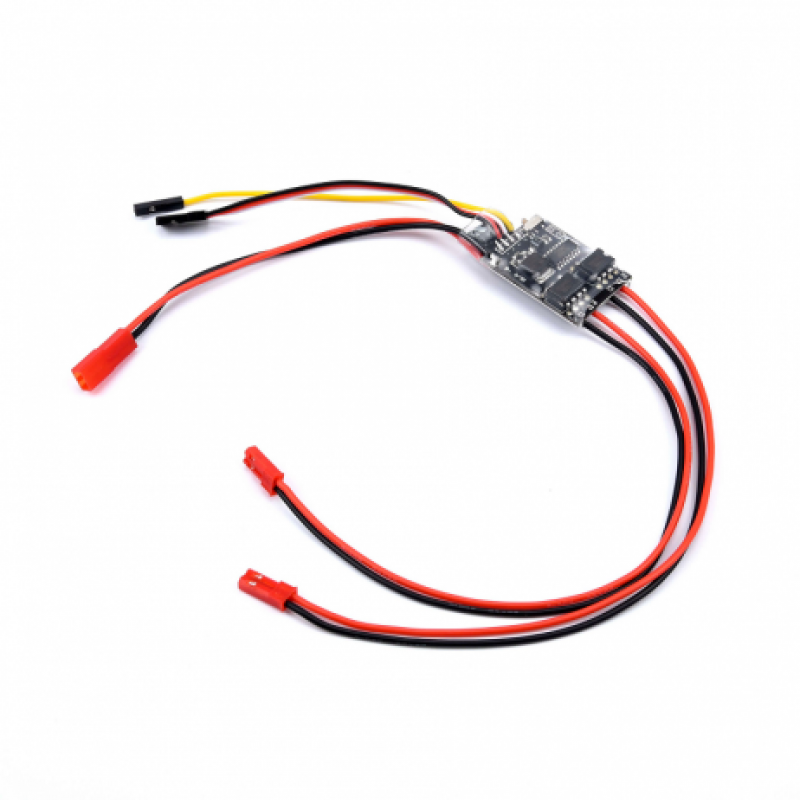

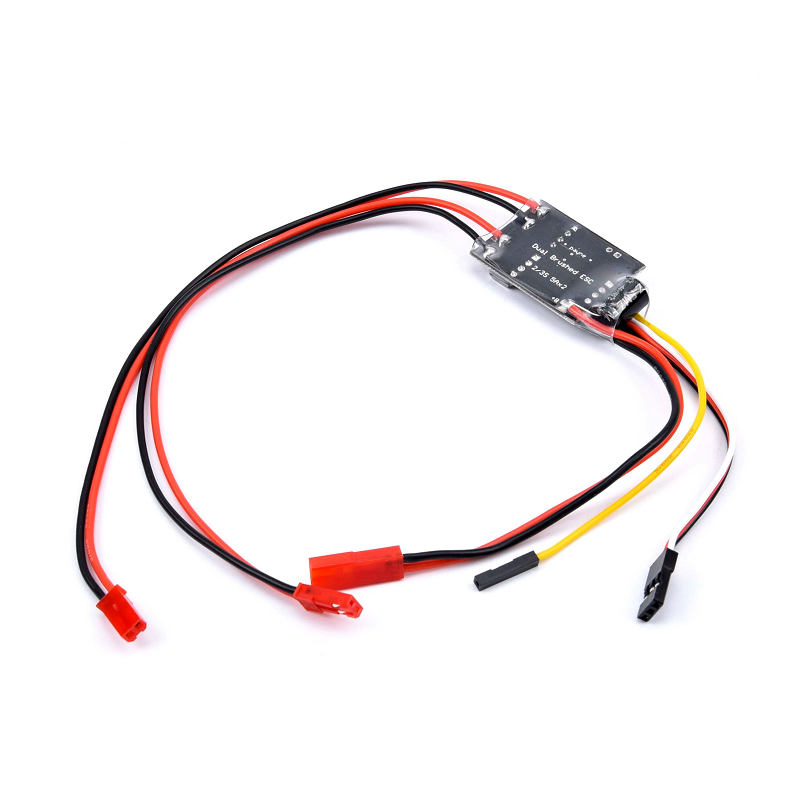

Dual 5A Brushed ESC
- Product Code: EC-5639
- Availability: 16
-
Rs.587.00
- (Excluding 18% GST)
