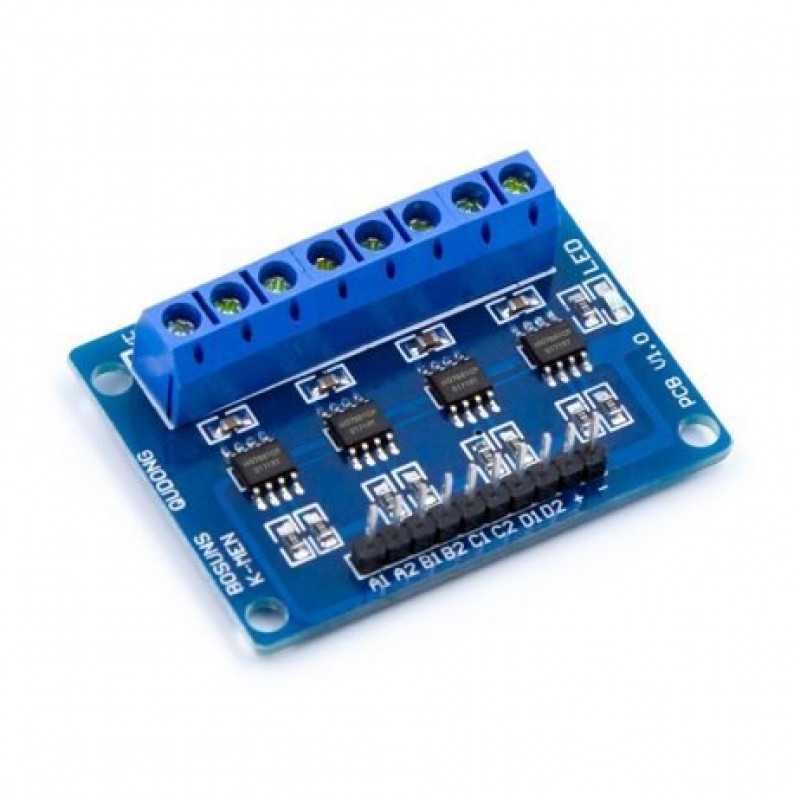

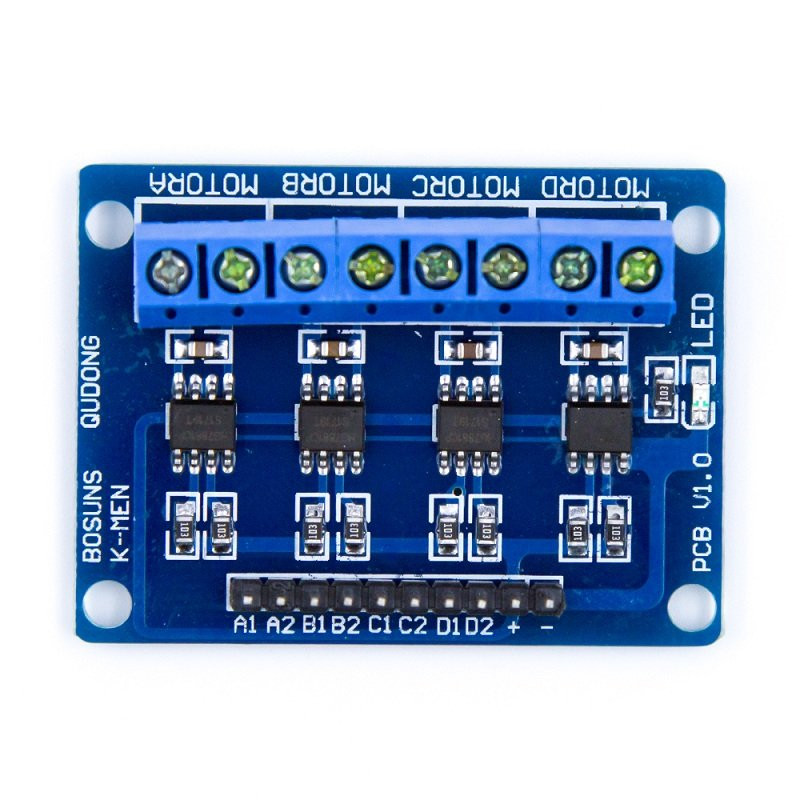

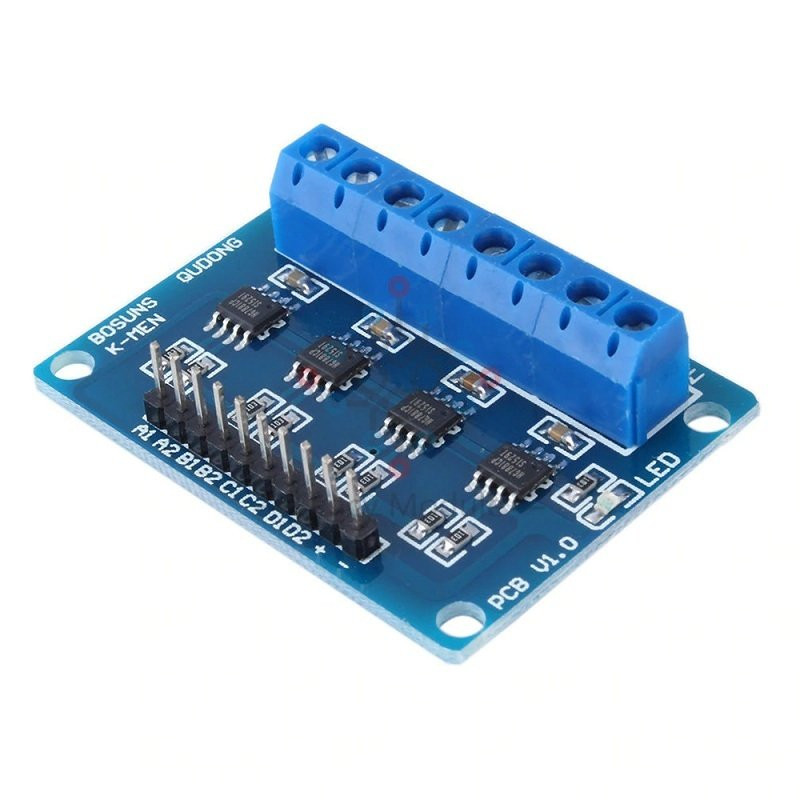

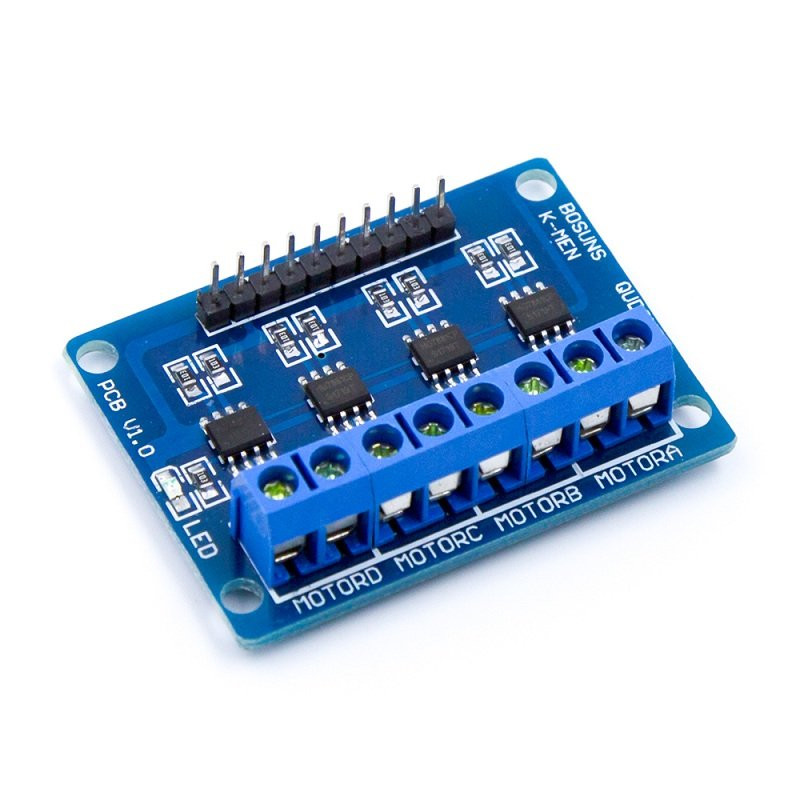

This HG7881 4-Channel dc motor driver module comes with its own four L9110S chip. It can drive 4 DC or Can drive two 4-wire 2-phase stepping motor.
Features:
- Perfect for driving DIY smart car robot motor.
- You can drive 4 DC motors or two 4-wire 2-phase stepping motor.
- Suitable Motor range: between motor operating voltage 2.5v-12V, the maximum operating current of 0.8A.
Package Includes:
1 x HG7881 4-Channel DC 2.4-10V Motor Driver Broad
Specifications:
| Model | HG7881. |
| Module supply voltage | DC 2.5-12V. |
| Compatible Motor | DC motor or stepper motor (working voltage 2.5-12V maximum current 0.8A). |
| No. of Channels | 4 |

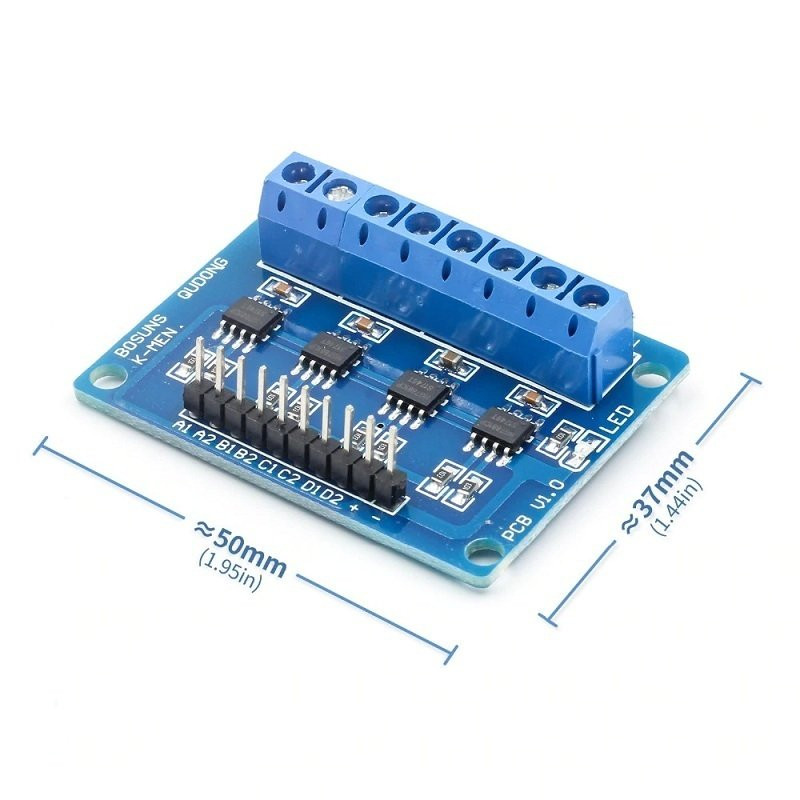

| Length (mm) | 48 |
| Width (mm) | 37 |
| Height (mm) | 10 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HG7881 4-Channel DC 2.4-10V Motor Driver Broad
- Product Code: EC-5640
- Availability: 5
-
Rs.325.68
