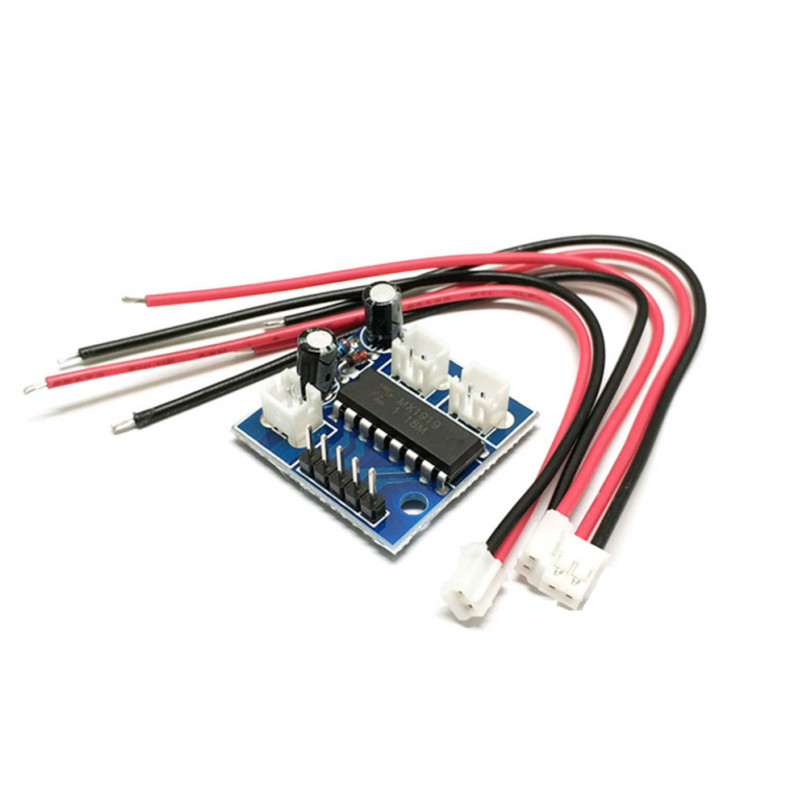

This MX1919 Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular MX1919 motor driver IC. It can control up to 2 DC motors with directional and speed control.
This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.

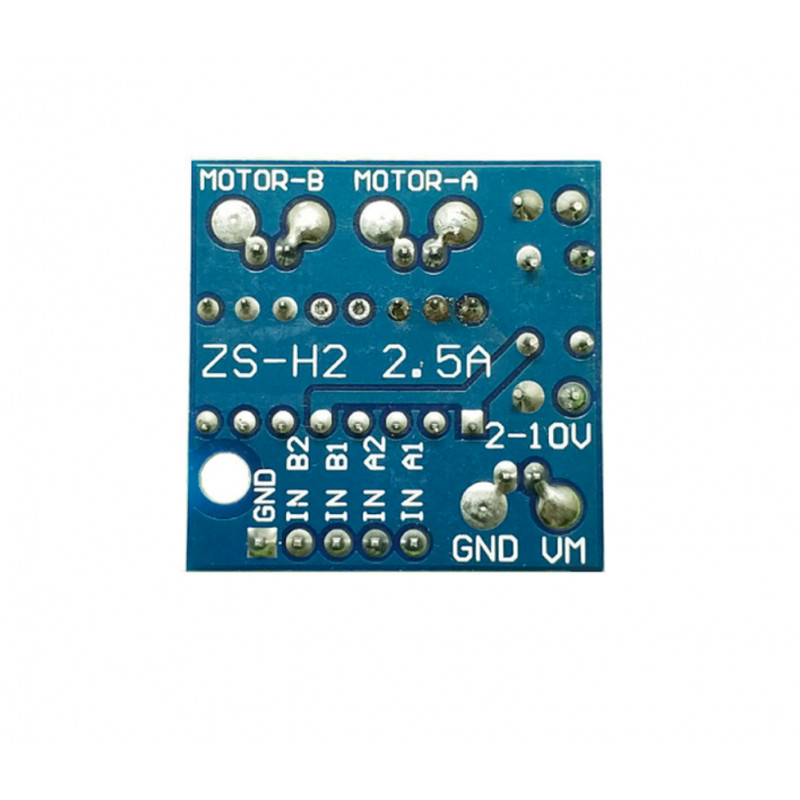

Pins:
  1. MOTOR-A: Motor A output
  2. MOTOR-B: Motor B output
  3. IN A1: 1st input for Motor A
  4. IN A2: 2nd input for Motor A
  5. IN B1: 1st input for Motor A
  6. IN B2: 2nd input for Motor B
Usage:

H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

Arduino Sketch Considerations:

The Arduino code sketch is pretty straightforward. Since there isn't a library for the MX1919 Motor Controller you just have to declare which pins the controller is hooked to.


Features:

  1. 2 Pin Connector For Motors and Power
  2. High-Quality Construction
  3. Can drive up to 2.5A of current.
  4. Drives2 motors.

Package Includes:

1 x MX1919 Based Motor Driver Module 2.5A


Specifications:

Driver Model

MX1919 2.5A

Driver IC

MX1919

Operating Voltage (VDC)

2 ~ 10

Max. Operating Current (mA)

2.5A

Length (mm)

28

Width (mm)

28

Height (mm)

10

Weight (gm)

0.005

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 164.02 (Inclusive of all Taxes)
