It is a low cost and high quality digital servo with export quality and great servo for just about any application. MG945 is for 1/8 buggy monster and many RC model. Please refer to product configure table provided in the attachments.
Wire Description:-
RED Positive
Brown Negative
Orange Signal
Features:
- Gear Type: Metal gear
- Power Supply: Through External Adapter
- Servo wire length: 32cm
- Servo Plug: JR (Fits JR and Futaba)
- Stall Torque(Kg-Cm): 10kg/cm (4.8v); 12kg/cm (6v)
- CE & RoHS approved
- Servo gear set and shaft have been upgraded to aluminum 6061-T6,which is stronger and lighter than copper.
- Universal S type connector, fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
Package Includes:

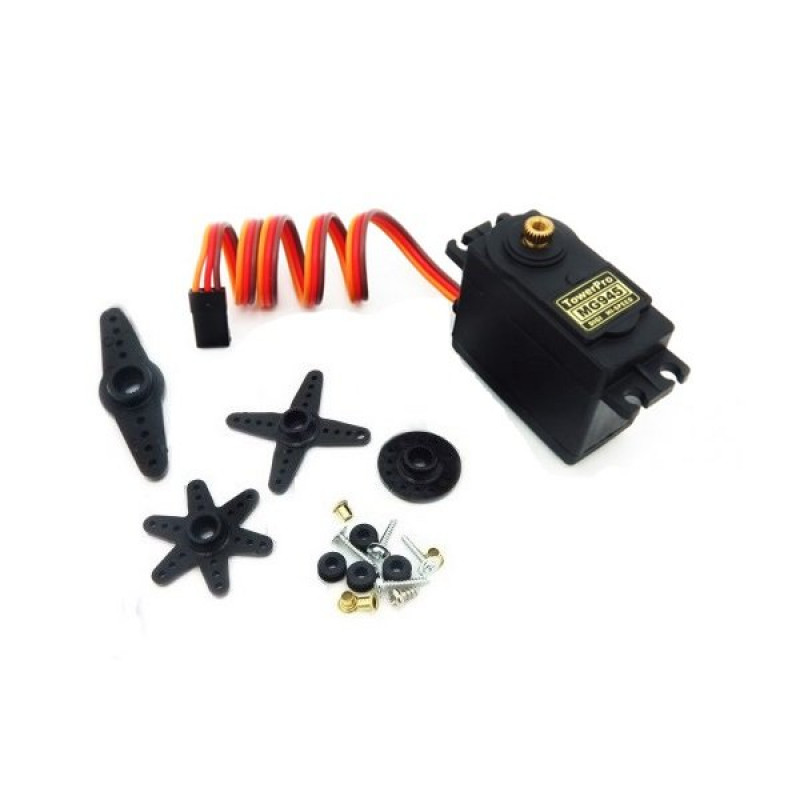

1 x Tower Pro MG945 Digital High Speed Servo Motor and Accessories Parts (as shown in the image)
Specifications :
| Operating Voltage (VDC) | 4.8~ 6.6 |
| Temperature range | 0- 55 |
| Stall Torque @ 4.8V (Kg-Cm) | 10 |
| Stall Torque @6.6V (Kg-Cm) | 12 |
| Operating Speed @4.8V | 0.23sec/60 |
| Operating Speed @6.6V | 0.2sec/60 |
| Degree of rotation | 180 |
| Dead band width | 1uS |
| Gear Type | Metal |
| Length (mm) | 40.7 |
| Width (mm) | 19.7 |
| Height (mm) | 42.9 |
| Weight (gm) | 66 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

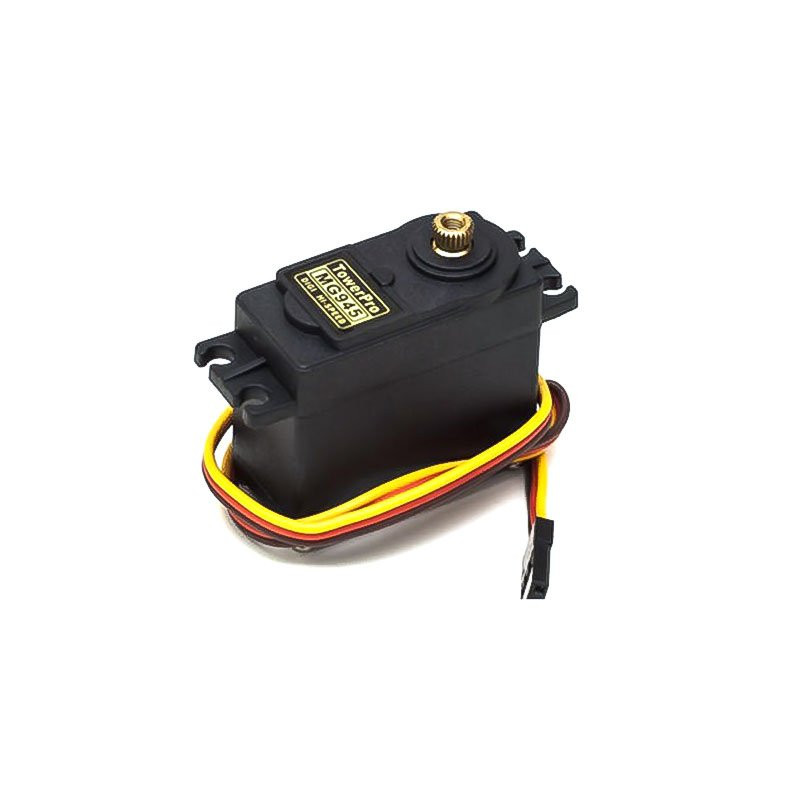

Tower Pro MG945 Digital High Speed Servo Motor
- Product Code: EC-5545
- Availability: 74
-
Rs.612.42
