They are the special choice for heavy duty CNC machines. They overpass the NEMA17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds.This NEMA 23 Stepper Motor is a powerhouse when it comes to larger machines that require extra torque.The NEMA 23 18.9 kg-cm Step Hybrid Stepper Motor can provide 18.9 kg-cm of torque at 2.8A current per phase.

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 23 18.9 kg-cm Hybrid Stepper Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

One can equip them on CNC Milling, CNC Router like application which demands extra torque than provided by NEMA17 Stepper Motors.

It is a brushless DC motor, so the life of this motor is dependent upon life ofthe bearings. The position control is achieved by a simple Open Loop control mechanism so doesn't require complex electronic control circuitry.

The motor shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip.


Note:

  1. The NEMA 23 18.9 kg-cm Hybrid Stepper Motor dimensions and weight may have 2% error.
  2. Resonances can occur because of improper installment.
  3. Not easy to operate at extremely high speeds.


Features :

  1. Comparably more powerful than NEMA17 motors.
  2. Input pulse decides the rotation angle of the motor.
  3. High accuracy of around 3 to 5% a step.
  4. Provides good starting, stopping and reversing.
  5. Control of this motor is less costly because of exclusion of complex control circuitry.
  6. The speed is proportional to the frequency of the input pulses.


Package includes :

1 x NEMA 23 18.9 kg-cm Hybrid Stepper Motor


Specifications:

Step Angle

1.8 degree

Holding Torque (Kg-Cm)

18.9

Operating Voltage (VDC)

3.2

Supply Current (A)

2.8 A/Phase

No. of Leads

6

Inductance (mH/Phase)

3.6

Resistance

1.13 ohmss

Rotor Inertia (gm-cm2)

480

Weight (gm)

900

Dimensions (mm) LxWxH

57x57x52

Frame Size (mm)

57 x 57

Inductance Accuracy

±20%

Resistance Accuracy

10%

Shaft Diameter (mm)

6.35

Shaft Length (mm)

20.6

Step Angle Accuracy

±5%

Cable Length (cm)

30


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2170.02 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

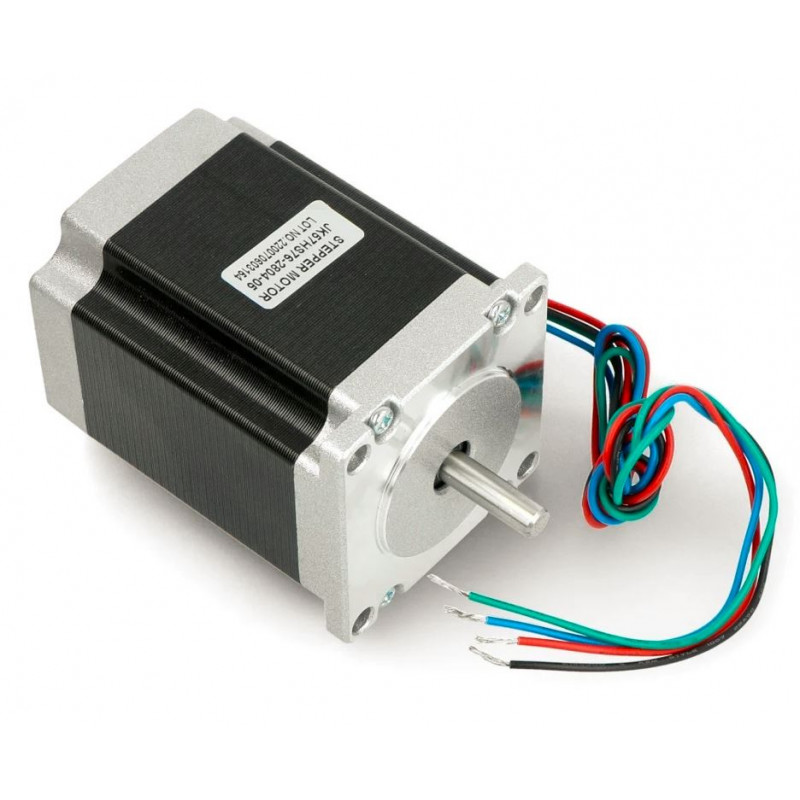

NEMA23 18.9 kg-cm Hybrid Stepper Motor
