This is Magnetic Mount Antenna having a frequency of 2400 2483 MHz and gain of 3 dBi. This is very helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antennas magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.

Application: 2.4 GHz Applications, Smart Meters

Features:

  1. Compact Size
  2. Low Cost
  3. Anodized Aluminium

Package Includes:

1 x 2400 2483 MHz 3 dBi Magnetic Mount Antenna



Specifications :-

Frequency (MHz)

2400 2500 MHz

Gain

3 dBi

Impedance ()

50

VSWR

< 2.0

Polarization

Linear

Power Handling (W)

10

HPBW

H: 3600; V: 400

Operational Temperature

-30 to 60 C

Humidity

5 95%

Housing

Aluminum- Commercial Grade

Dimension (mm)

50 x 32

Weight( g )

50

Cable Length (Meter)

3



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 172.28 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

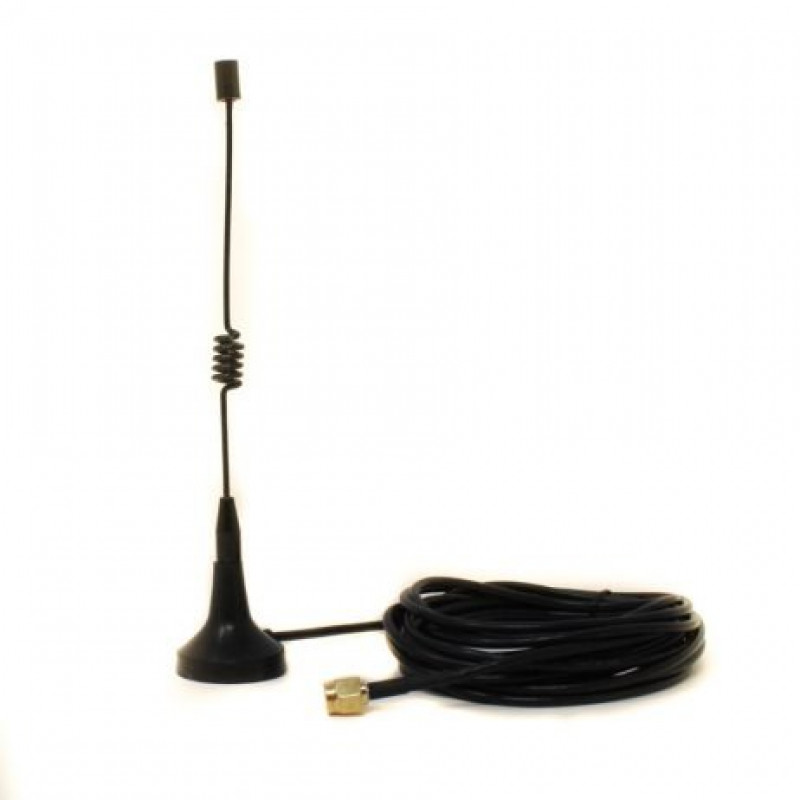

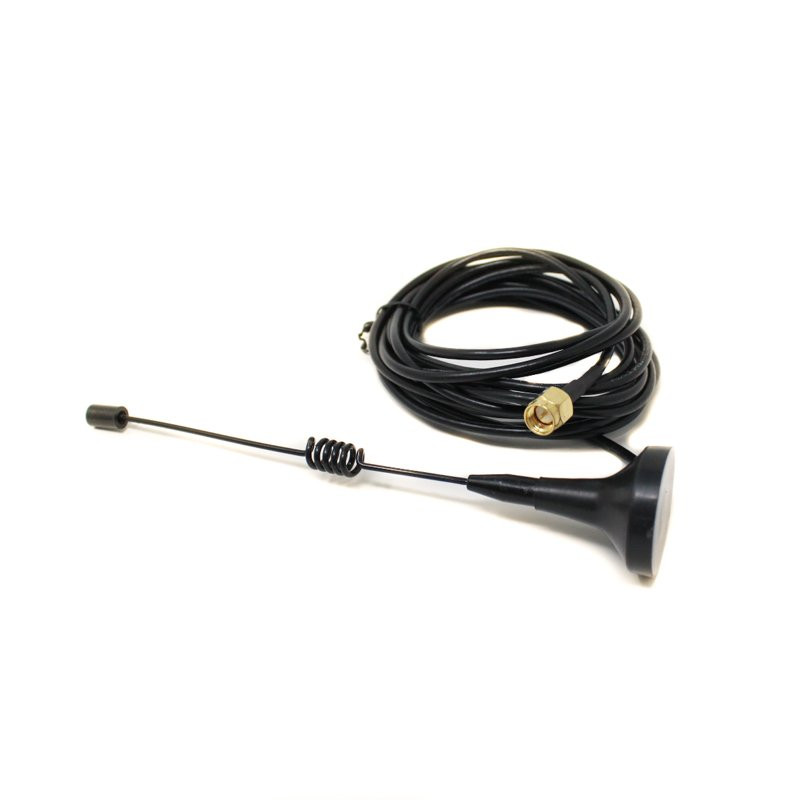

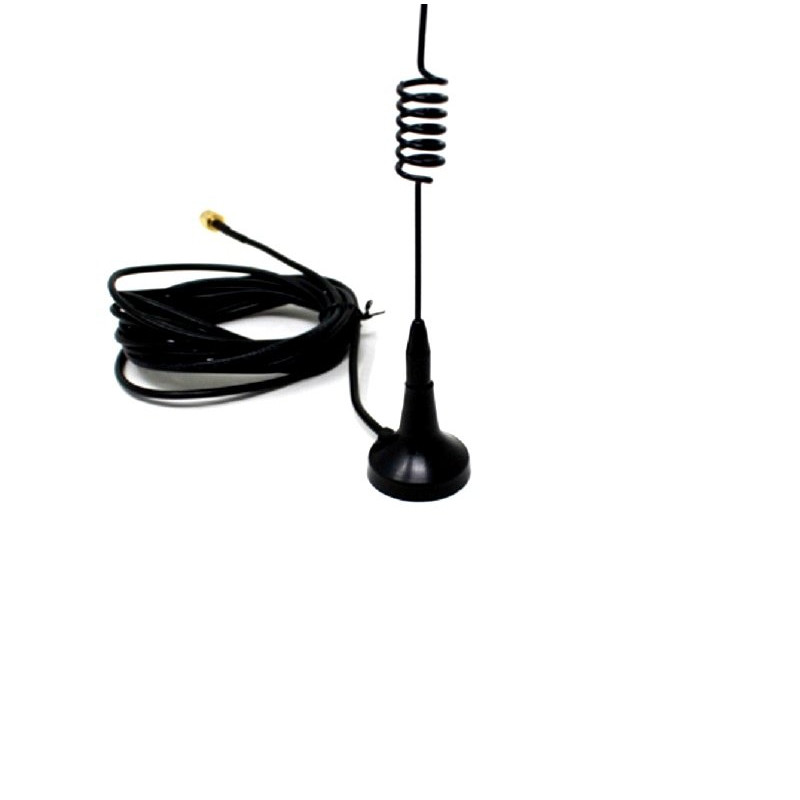

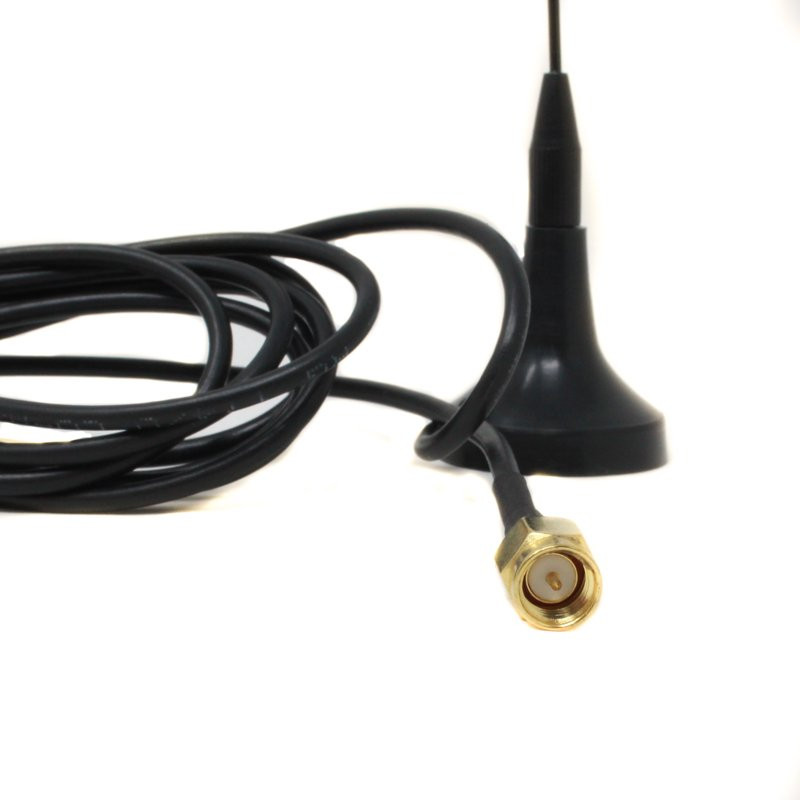

2400 - 2483 MHz 3dBi Magnetic Mount Antenna

  • Product Code: EC-5958
  • Availability: 351
  • Rs.119.00
  • (Excluding 18% GST)
