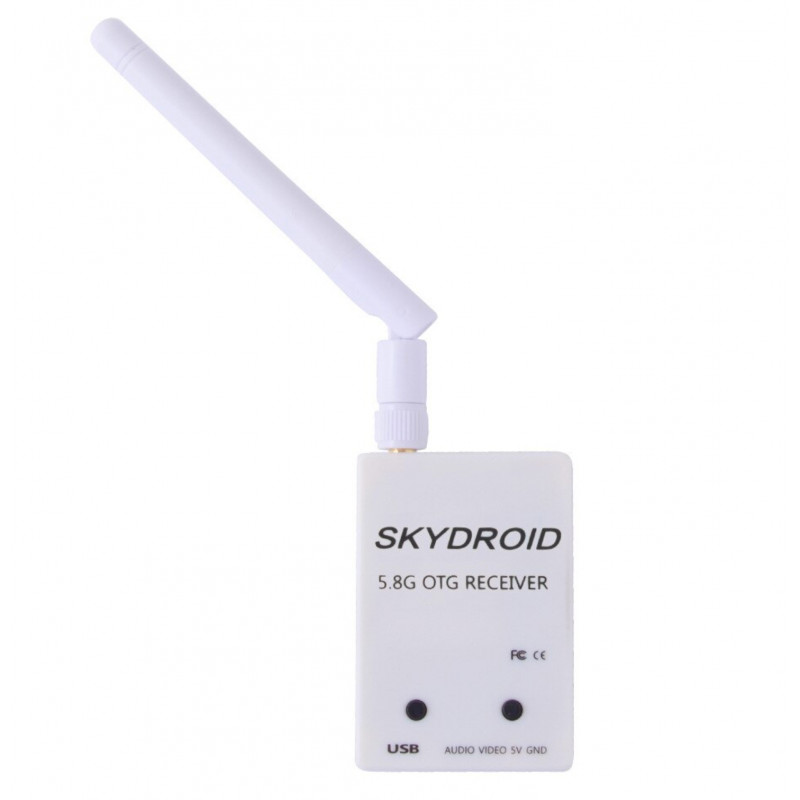

5.8G UVC OTG Android Phone Receiver is a new receiver that you can connect to your smartphone directly instead of a heavy monitor and good for those who feel dizzy when wearing FPV goggles.
It has low latency around 100ms 150CH auto searchallows covering all 5.8G frequency bands.
Note:
- There are 2 same connectors on USB cable but in a different function. One side is special for mobile, the other is special for a receiver. Please connect them correctly.If it doesn't work, please try to plug them in reverse.
- All Android phone/tablet has 6.0 or above version with OTG Support hardware is compatible with this receiver module.
Package Includes:
1 x 5.8G UVC Receiver with a White shell.
1 x SMA antenna.
1x Micro USB cable.
Specifications:
| Model | ROTG01 (UVC OTG FPV Receiver) |
| No. of Channels | 150 |
| RF Range | 5645~5945 GHz |
| Rx Sensitivity (dBm) | -90 |
| Operating Voltage (VDC) | 5 |
| Current Consumption (mA) | 200 |
| Operating Temperature Range (C) | -10 to 60 |
| Connector to connect Antenna | SMA Female |
| Antenna Length (mm) | 110 |
| Video Format Supported | NTSC/PAL |
| Color | White |
| Net weight (gm) | 28 |
| Dimensions (mm) LxWxH | 61 x 33 x 0.9 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5.8G UVC OTG Android AV Phone Receiver
- Product Code: EC-6128
- Availability: 7
-
Rs.2830.82
