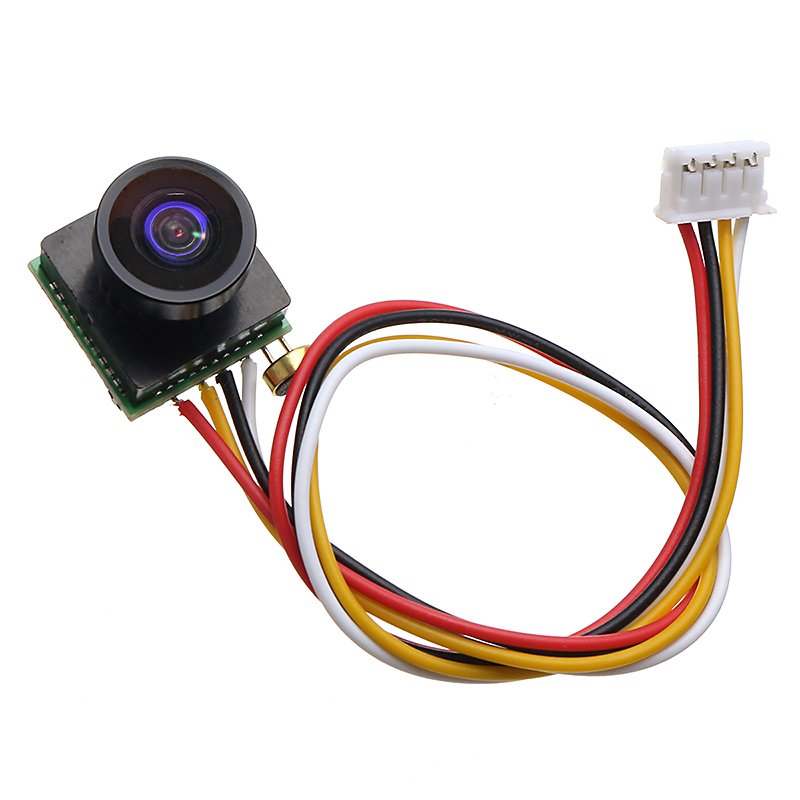

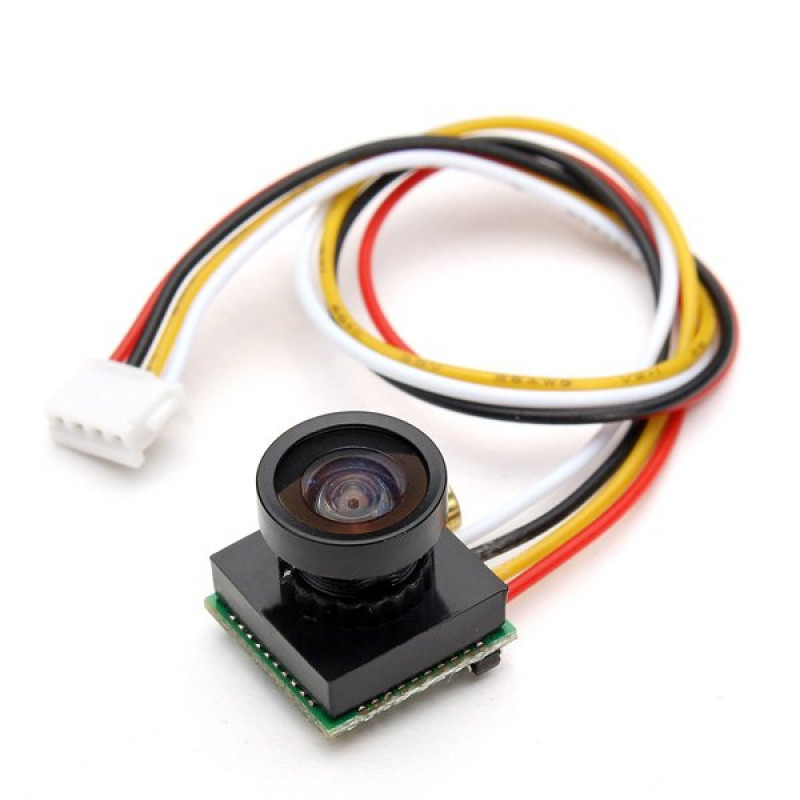

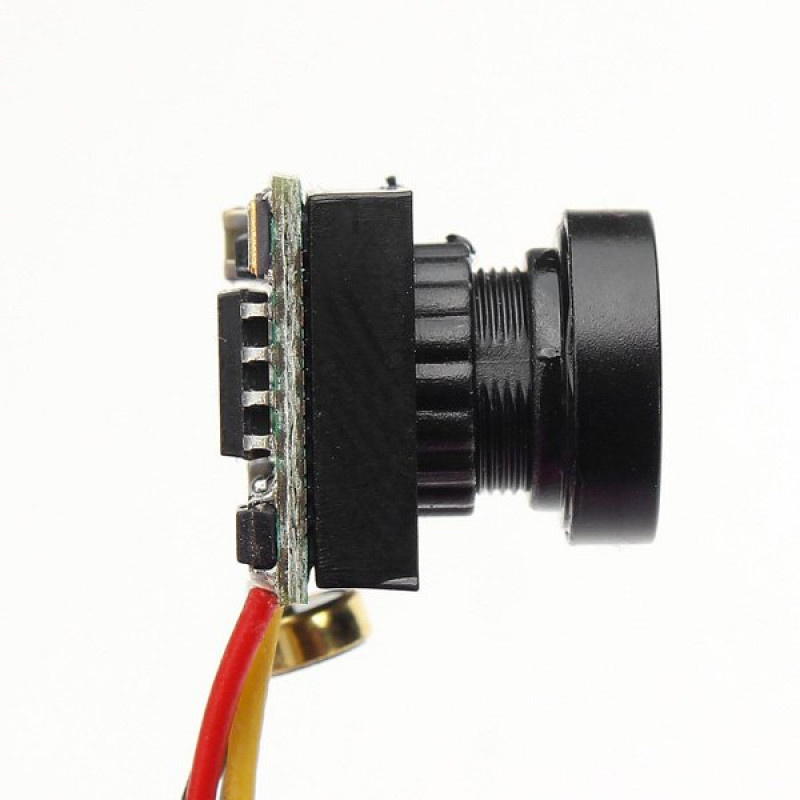

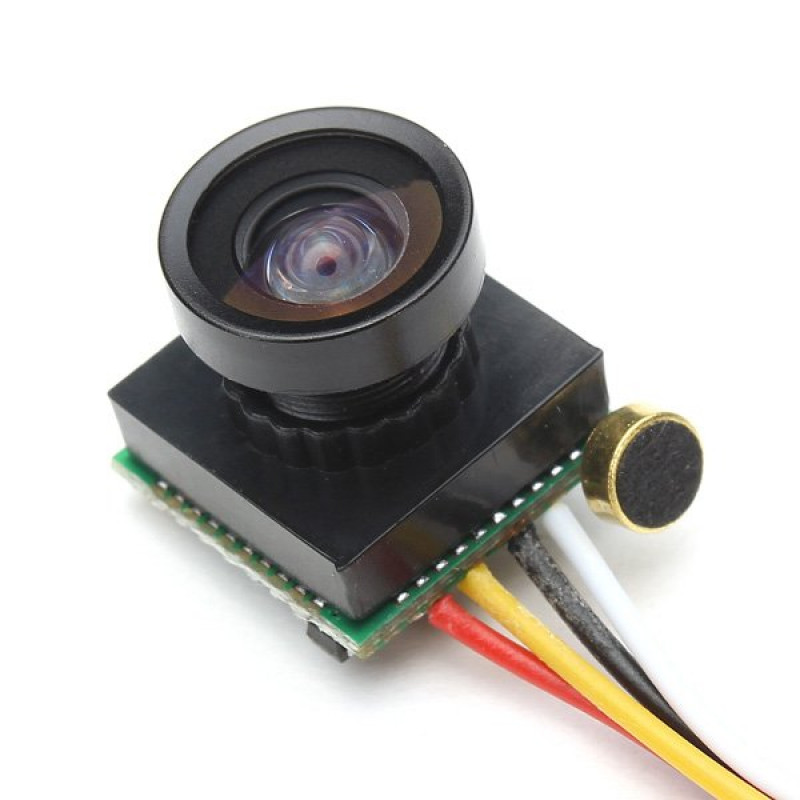

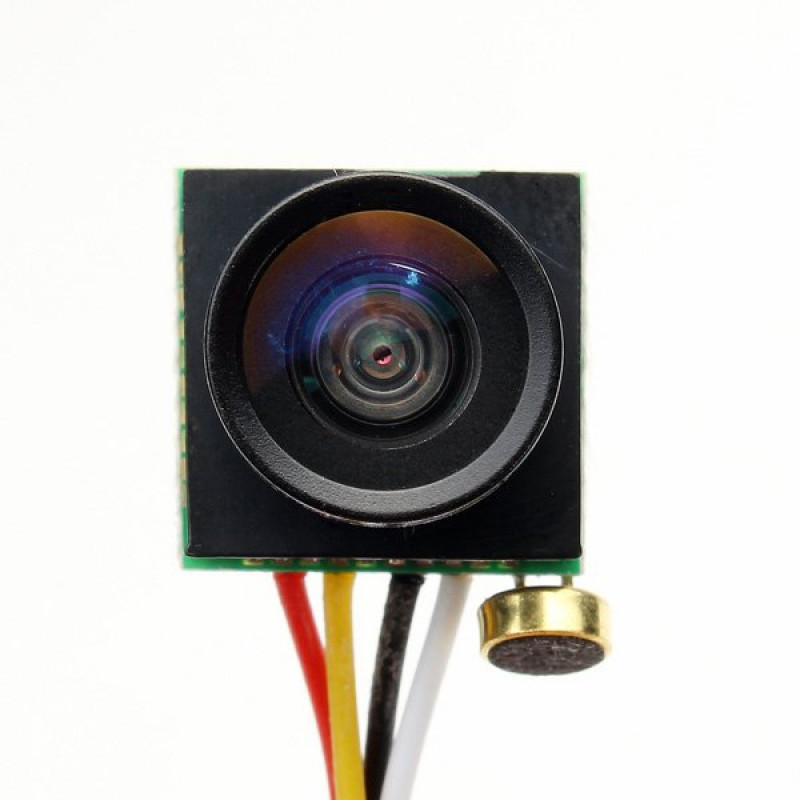

This 600TVL 170 degree super small colour video mini FPV camera with audio can be used for Mini 200 250 300 Quad-copter. Its tiny and lightweight size with best features in the class like 3.7-5V 100mA operating power requirement, 1280 x 960 recording resolution, and great capturing capability even in low light conditions makes it suitable for your quad-copter Application and many more mark able features are listed below.

Note:

This FPV supports 3.7-5V voltage range only

Image may vary from actual product in terms of IC branding and PCB design

Features :
  1. Illumination: 0.5LUX
  2. Format:PAL / NTSC
  3. Audio Lens: Wide-angle 1.8mm (170 degree)
  4. Sensitive area: 3.5964mm x 2.7084mm
  5. 648 pixels (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
  6. Scanning Frequency Horizontal: 15.625KHz
  7. Vertical: 50Hz
  8. level: 15.7343KHz
  9. Vertical: 60Hz
  10. Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
  11. Standard Lens : 1.8 mm
  12. Size of the lens : M10
  13. Power: DC5V 10% 70mA 10%
  14. Operating temperature Range: -10 C ~ 60 CRH95% Max

Package Includes :

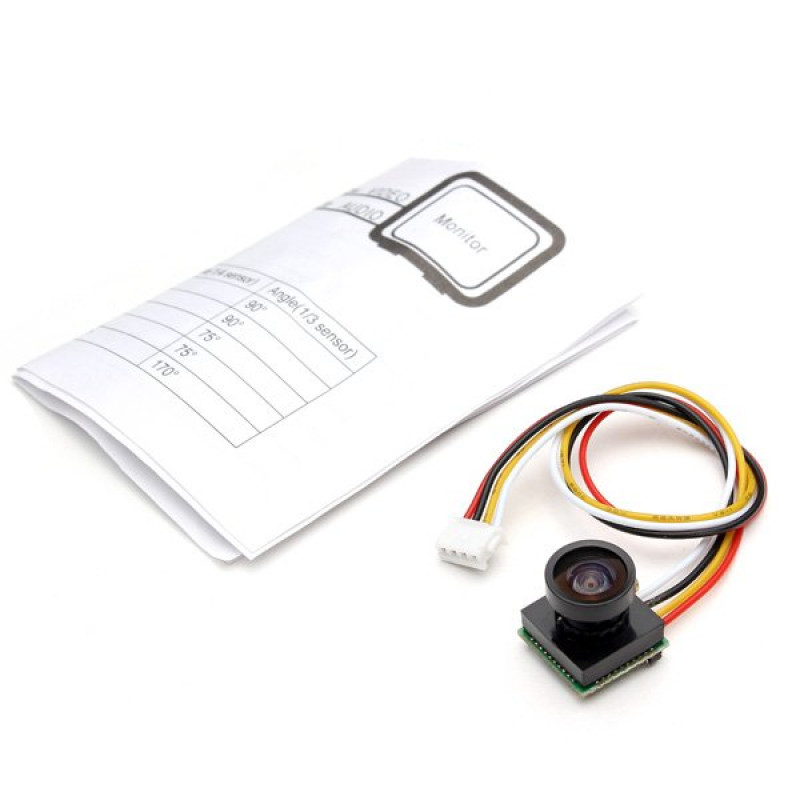

1 x 600TVL Wide Angle Lens Camera with a Mic.


Specifications :-

Lense Viewing Angle (FOV)

170

Gamma Correction

0.45.

Horizontal Resolution (TVL)

600

Image Sensor

1/4 CMOS image sensor

Minimum Illumination

0.1 Lux / F1.2

Operating Temperature Range (C)

-10 to 50

Operating Voltage (VDC)

3.7 ~ 5

Pixel Resolution

1280 x 960

S/N Ratio (dB)

48

Video Output

1.0Vp P75.

Working Current

100 mA

Dimensions in mm (LxWxH)

12.5 x 12.5 x 17

Weight (gm)

4



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1033.68 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone

  • Product Code: EC-5926
  • Availability: 4
  • Rs.876.00
  • (Excluding 18% GST)
