This is Magnetic Dual-Band Mount Antenna having a frequency of 824 960 MHz & 1710 2170 MHz and gain of 4/6 dBi. This antenna is supported to GSM FCT and other GSM Module/Modems. The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations. For this reason, they are often used in devices such as cellular or dual-band wireless access points.
Application: GSM, 3G
Features:
- Compact Size
- Low Cost
- SMA Male
- Any cable length (suggested <5m)
Package Includes:
1 x 824 960 MHz & 1710 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna
Specifications :-
| Frequency (MHz) | 824 960 MHz & 1710 2170 MHz |
| Gain | 4 / 6 dBi |
| Impedance () | 50 |
| VSWR | < 2.0 |
| Polarization | Linear |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Cable | RG174 |
| Connector | SMA Male Plug |
| Operational Temperature | -30 to 60 C |
| Humidity | 5 75% |
| Housing | Carbon Steel Powder Coated |
| Dimension (mm) | 280 x 27 |
| Weight | 100gm |
| Cable Length (Meter) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 172.28 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

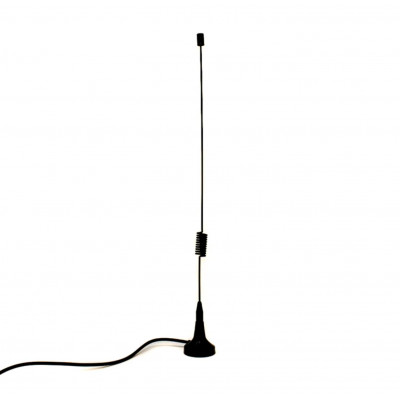

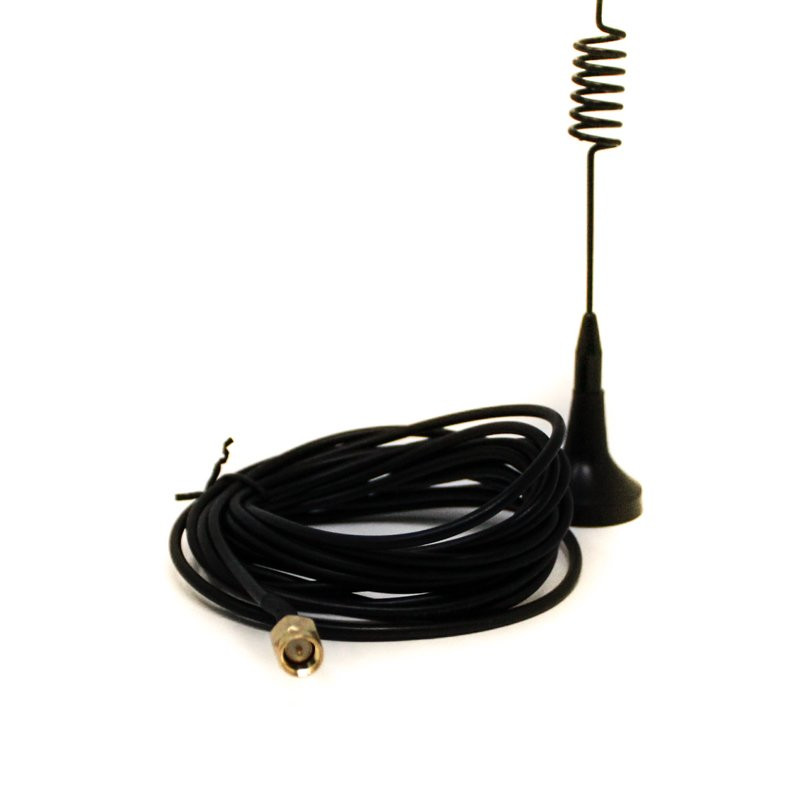

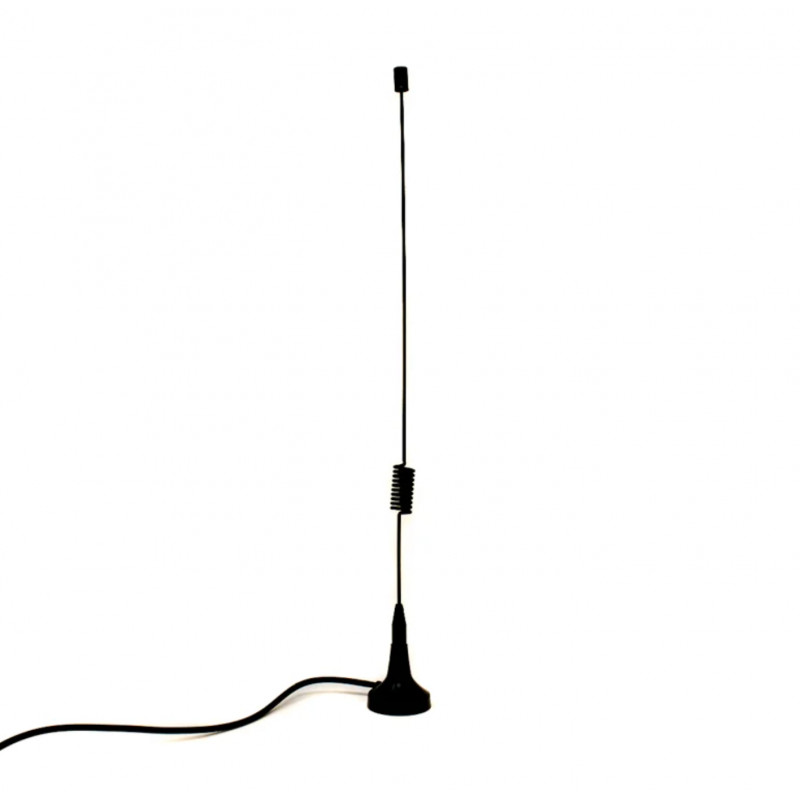

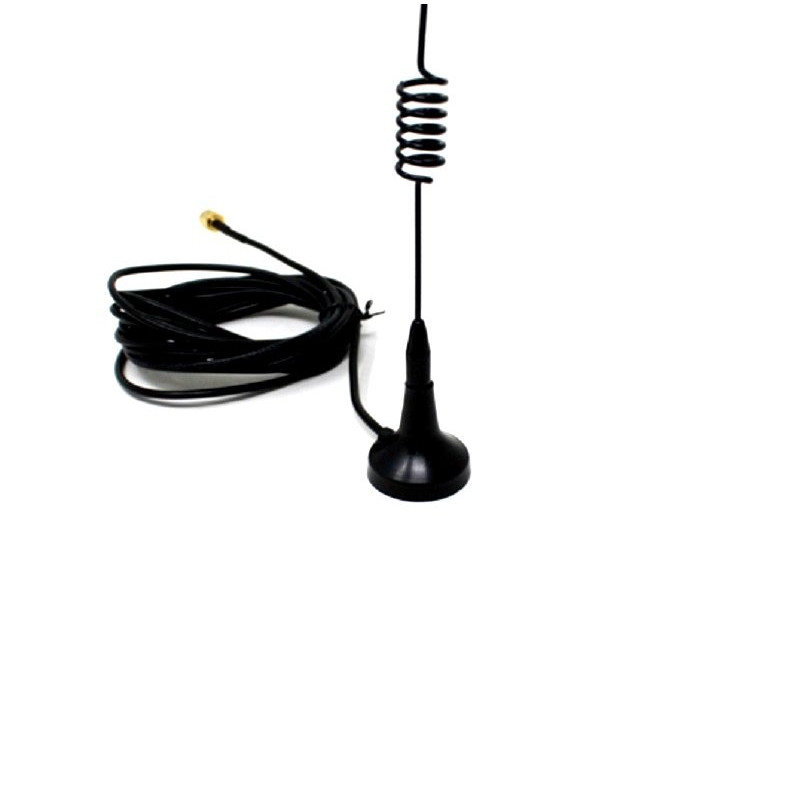

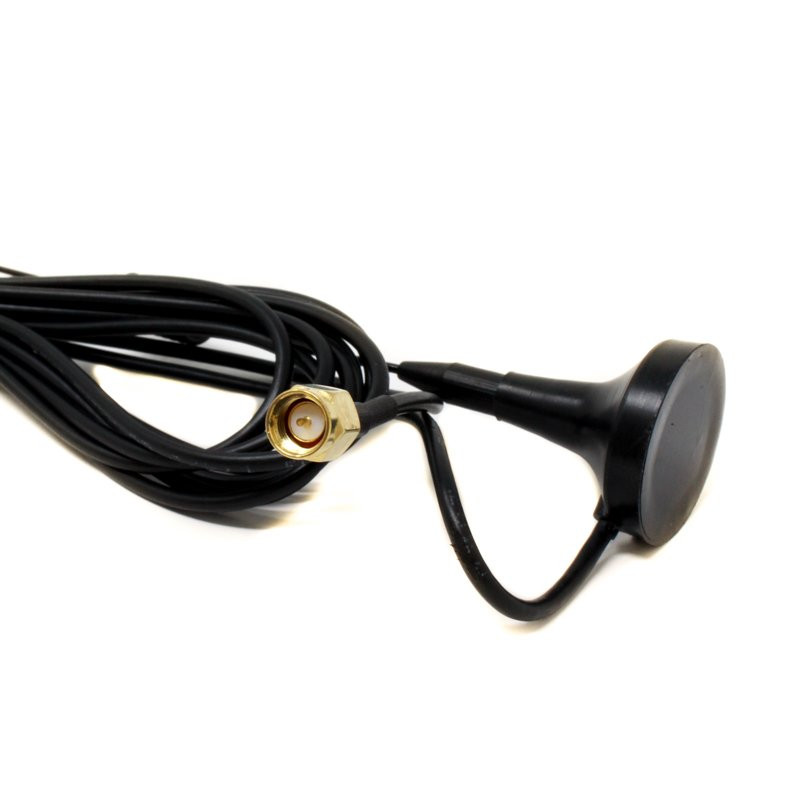

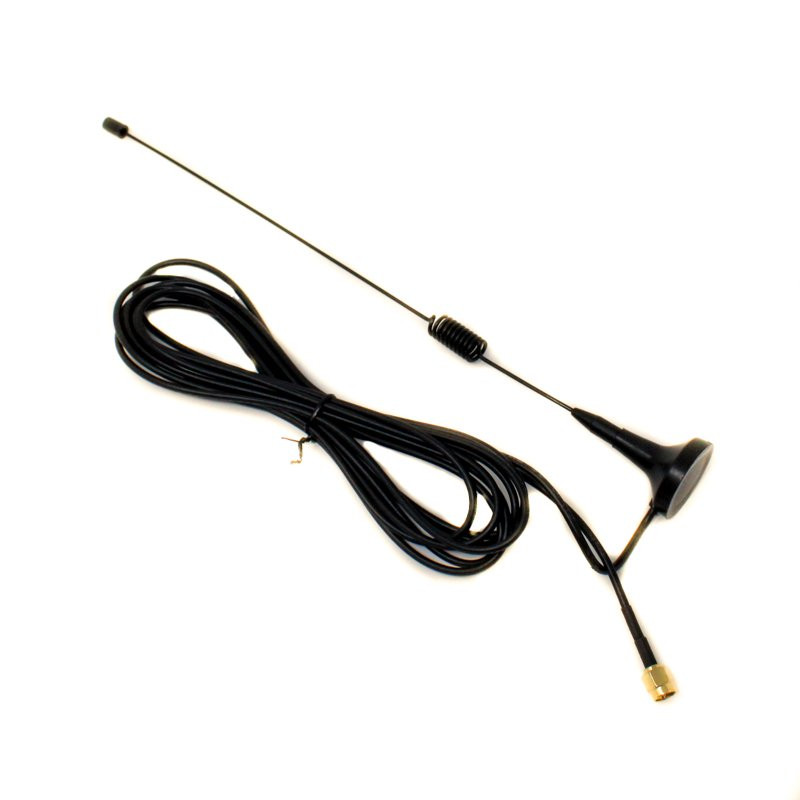

824 – 960 MHz And 1710 – 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna
- Product Code: EC-5973
- Availability: 156
-
Rs.115.00
- (Excluding 18% GST)
