The Foxeer Arrow V2 HS1190 is the advanced version of the Foxeer HS1177. It features an excellent wide dynamic range and supports a 5-35v input voltage range. It also has an inbuilt OSD and MIC. The OSD will display battery voltage, flight time, and customizable user name.

This is Version 2 (V2) of the Foxeer Arrow, and as a result, boasts multiple improvements over the V1. Those improvements are:

  • Three independently controlled OSD parameters: User name, timer, and voltage. Their positions can be moved.
  • OSD flashing issue has been fixed.
  • Upgrade to a better power module features up to 35v direct plug-in.
  • Upgrade to 7-Pin to monitor battery consumption.
  • Voltage calibration function. If the voltage is not the same as real power, it can be adjusted by OSD.
  • The cable connector (2-Pin) is short and matches an extended cable (could be removed), which makes OSD setup a breeze.

This Foxeer Arrow V2 HS1190 FPV Camera comes standard with a high-quality 2.5mm lens and IR Block filter.


Features:

  1. 600TVL
  2. 1/3 Sony Super HAD II CCD
  3. Built-in FPV OSD (Voltage, Flight Time, Name)
  4. Built-in Audio
  5. Wide Dynamic Range (D-WDR)
  6. Wide Voltage Range DC5V-35V
  7. Various Installation Options
  8. 2.5mm lens
  9. IR-Block NTSC
  10. Color: Black / Orange (Optional)

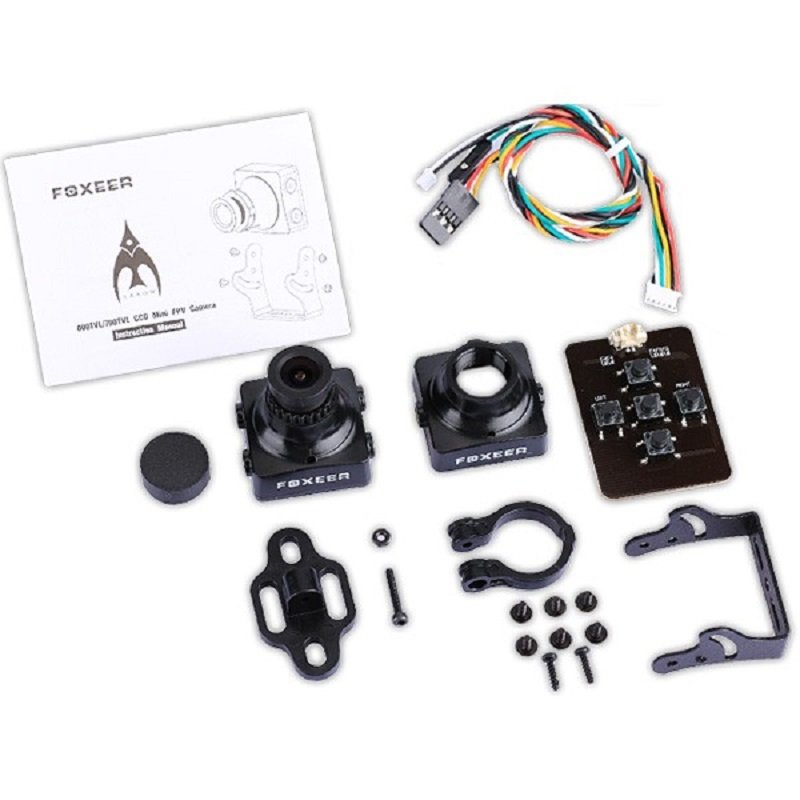

Package Includes:

1 x HS1190 Foxeer Arrow Camera w/ OSD

1 x Metal bracket

1 x OSD control board

1 x Plastic rings set

1 x 7pin servo cable

1 x Spare Camera case



Specifications :-

Horizontal Resolution (TVL)

600

Lens

2.1mm

Minimum Illumination

0.01Lux/1.2F

Electronic Shutter Speed

PAL

Pixel Resolution

1024 x 600

Input Voltage Range(VDC)

5

S/N Ratio (dB)

>60

Dimensions in mm (LxWxH)

26x26x32

Weight (gm)

13

Image Sensor

1/3" SONY Super HAD II CCD



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2122.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Foxeer HS1190 Arrow 2.8mm 600TVL CCD OSD NTSC/PAL IR Block/IR Sensitive FPV Camera with Bracket Black PAL

  • Product Code: EC-5930
  • Availability: Out Of Stock
  • Rs.1850.00
  • (Excluding 18% GST)
