The Runcam Phoenix Oscar Edition was a micro FPV camera equipped with an M12 lens. But, the Runcam Phoenix 2 Nano is both great daylight and low light FPV camera, equipped with an improved 1/2 WDR image sensor and high-quality M8 lens. The Phoenix 2 Nano features a high 1000 TVL picture with a 4:3 or 16:9 aspect ratio option, WDR CMOS, and fast image processing. This Nano camera has the same CPU and 1/2 high-performance image sensor as the RunCam Phoenix 2, however, the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.

Thanks to the 1/2 super global WDR image sensor and the /2.0 big aperture 7G glass lens, the Phoenix 2 Nanos low light performance is even better than the RunCam Eagle. The customized high-quality 7 layers of glass lens have a /2.0 aperture which brings less red lens flare and less purple fringing effect. These lenses are also used on the RunCam Split Nano3. Comparing to the RunCam Micro Eagle, the Phoenix 2 Nano has way less digital shimmer and a much clearer image.

This is one of the best nano FPV cameras on the market with top of the line performance at a competitive price.

Note: The Oscar version is now upgraded to new Phoenix 2 Nano and the old oscar version has been discontinued from the supplier.


Features:

  1. 7G /2.0 big aperture glass lens. Less red lens flare
  2. Excellent Image Quality in day or night!
  3. 1/2 big image sensor
  4. f/2.0 aperture for more light
  5. Excellent low light performance
  6. Less digital image shimmer
  7. New upgraded CPU for better performance
  8. Better low light performance than even the RunCam Eagle!
  9. High quality 6 layer glass lens for better picture
  10. PAL/NTSC & 4:3/16:9 Switchable
  11. Supports Image Mirror & Flip
  12. Low latency, high performance

Package Includes:

1 x RunCam Phoenix 2 Nano Edition 1000 TVL FPV Camera

1 x 1928 ABS Bracket
1 x 6pin FPV Silicone Cable
1 x Screw Set



Specifications :-

Model

RunCam Phoenix 2 Nano

Image Sensor

1/2" CMOS Sensor

Horizontal Resolution

1000TVL

Aspect Ratio

4:3 / 16:9 switchable

Signal System

PAL / NTSC switchable

Lens

2.1mm (M8), /2.0 aperture

Focal Length

2.5mm

Field of View

155

Minimum Illumination

0.001Lux@1.2F

Signal to Noise Ratio

>50dB (AGC OFF)

Input Voltage

5-36V DC

Current Drawn

190mA@5V 85mA@12V

Day/Night

Color/BW/EXT/Auto

Housing Material

ABS

Dimensions

14mm x 14mm x 22mm

Weight

5g


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3007.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

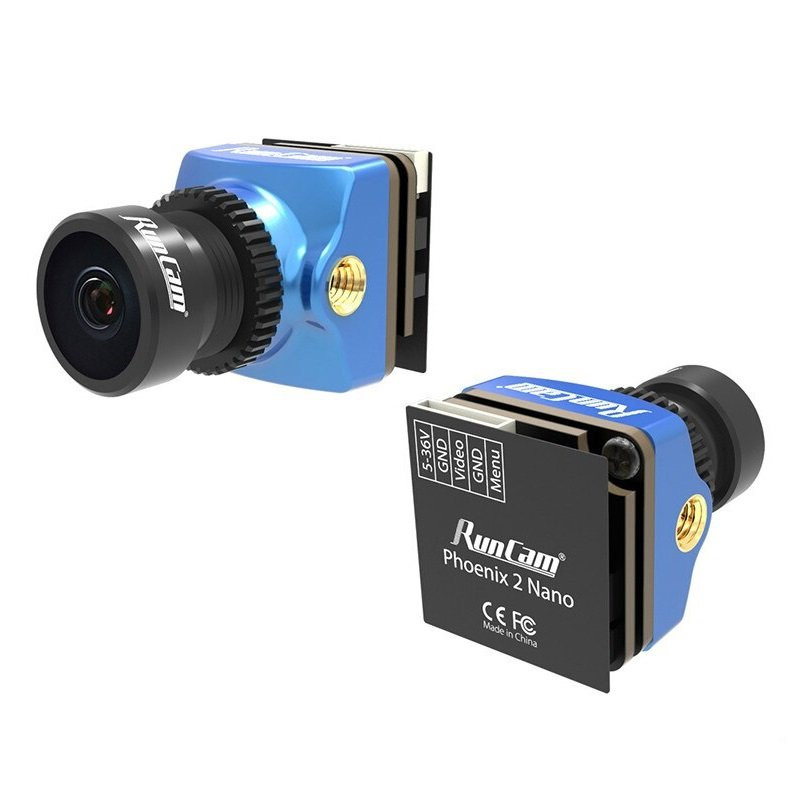

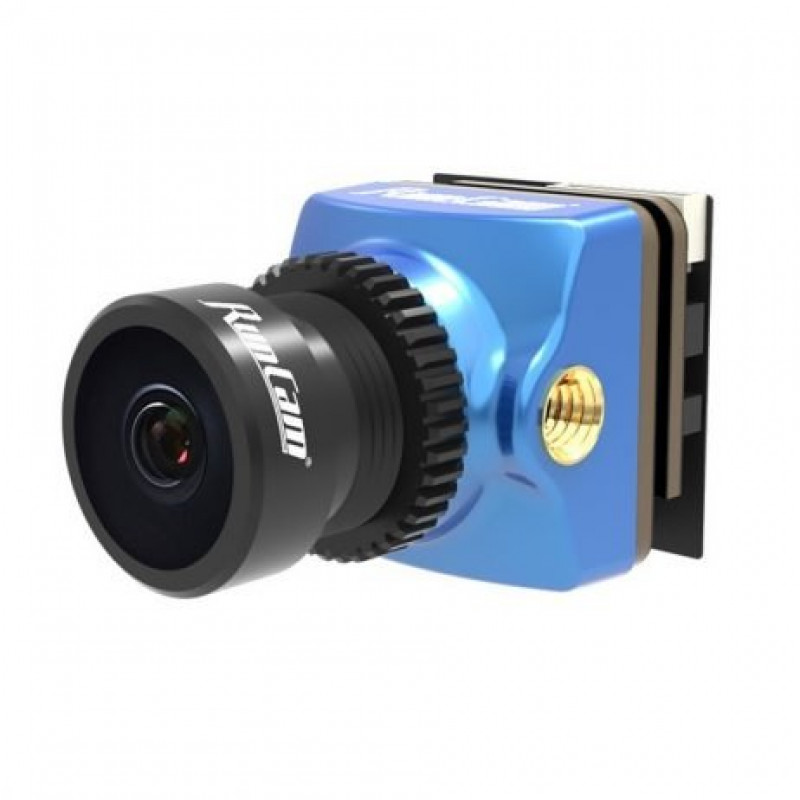

RunCam Phoenix 2 Nano Edition 1000 TVL FPV Camera
