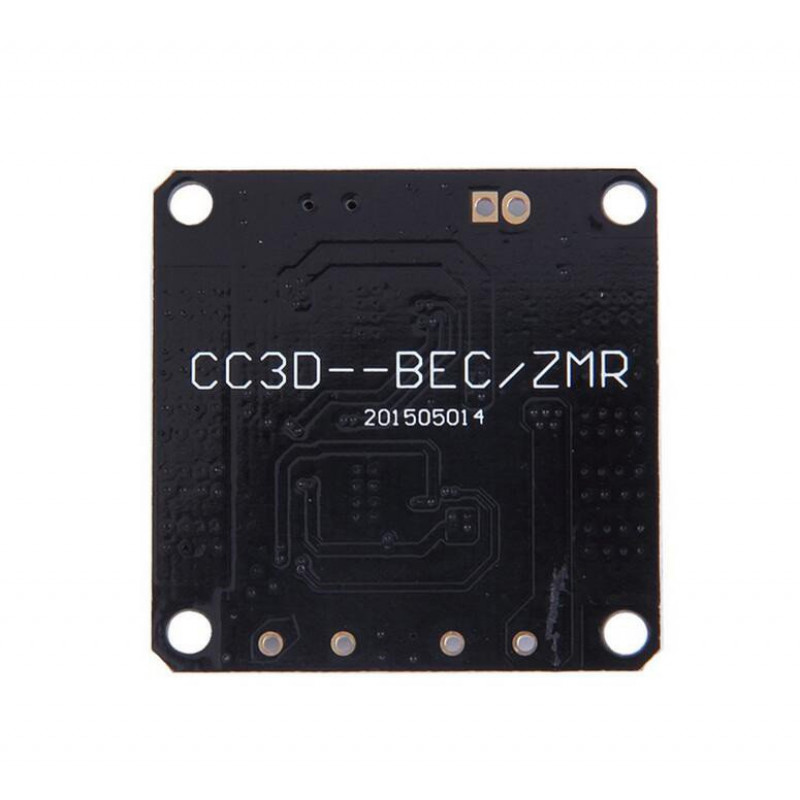

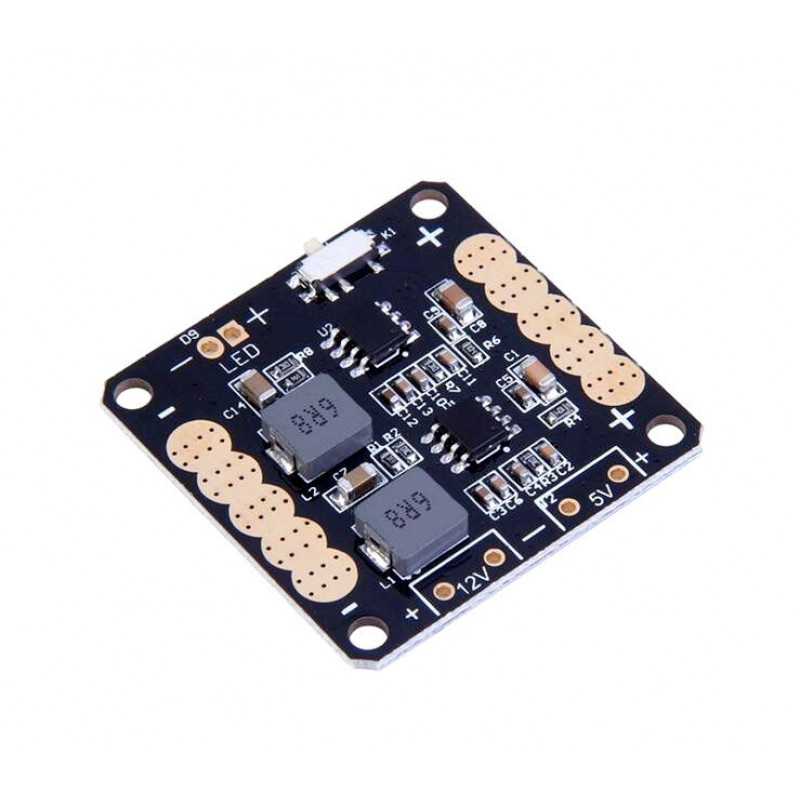

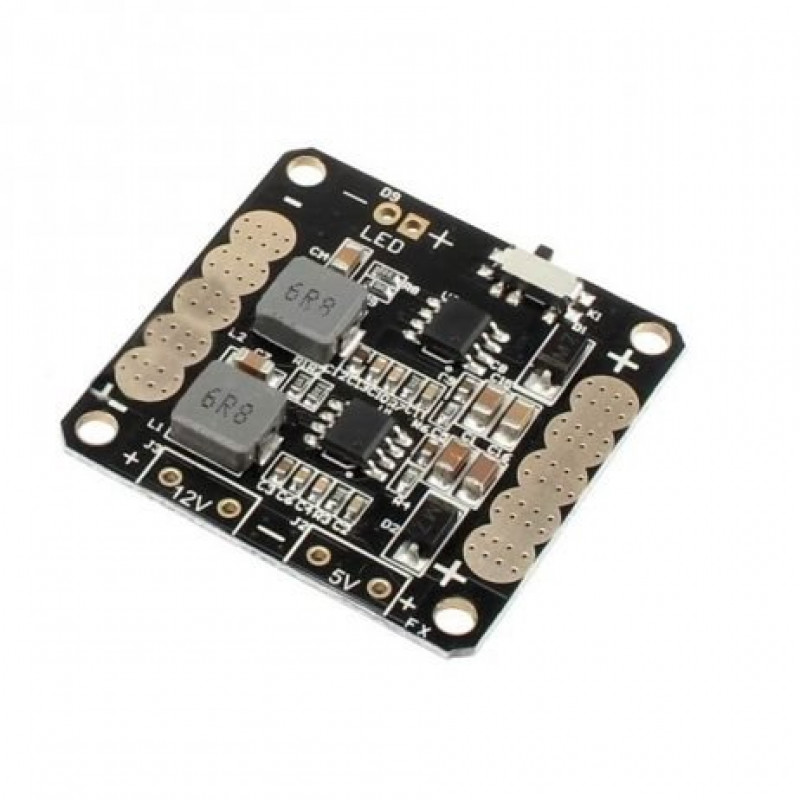

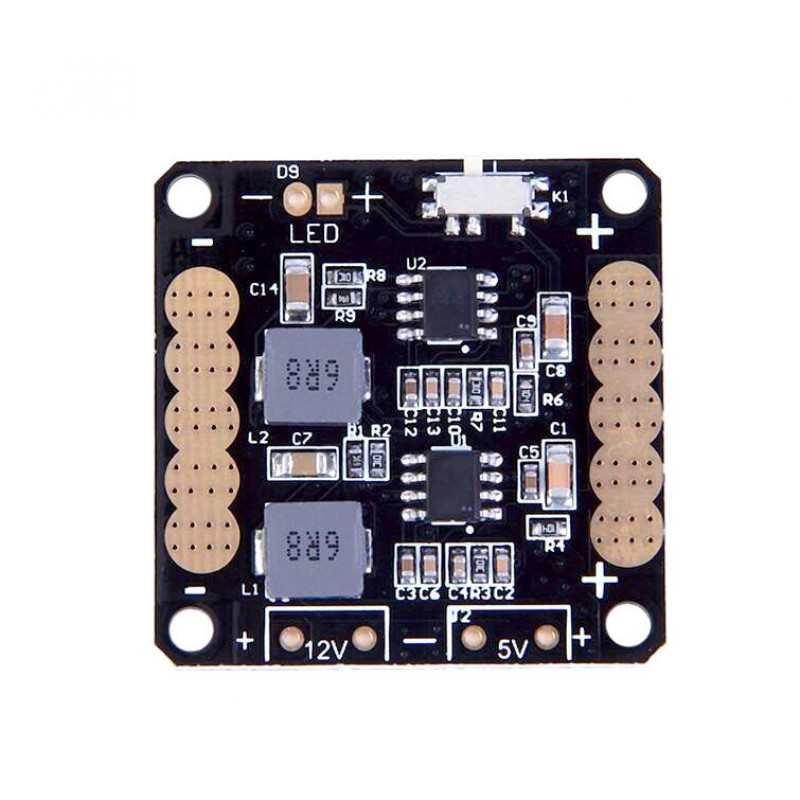

This CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch is the one of the latest version of the popular CC3D power distribution board (PDB) with 5 and 12-volt BECs.

The layout remains the same as the V1 PDB, but the BECs are now integrated into the PCB using surface-mount-technology, which makes them much more reliable.

The 5V BEC connection is ideal for powering your flight controller or RC receiver, while the 12V output could be used to power FPV components or lighting. Both BECs are compatible with 2-6S LiPo and can output up to 3A continuous. The board also features an unregulated output for powering LEDs, which is switchable so you can turn your lights off when you don't need them or to save power.

The board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze, and most other board type flight controllers.

This power distribution board is suitable for Naze32, CC3D, SP F3, APM, etc flight controller (36 * 36 hole distance).With OSD function, support KV team, MWOSD firmware etc., comes with FTDI. When OSD connect to PC, it will auto disconnect with flight controller, TX RX Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation(3A), come with LC filter.


Features :

  1. Latest UBEC, LC Filter
  2. Integrated filter circuit boards, more stable, make FPV further and clearer
  3. Compatible with CC3D/Naze32/F3 flight controller
  4. Slim design, lightweight, and easy to use


Package Includes :

1 x CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch



Specifications :-

Model

CC3D V2

BEC output

5V/12V 3A

Input Voltage

2-6S (max. 3A)

Length (mm)

36

Width (mm)

36

Mounting Distance(mm)

30.5

Weight (gm)

9

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 388.22 (Inclusive of all Taxes)
