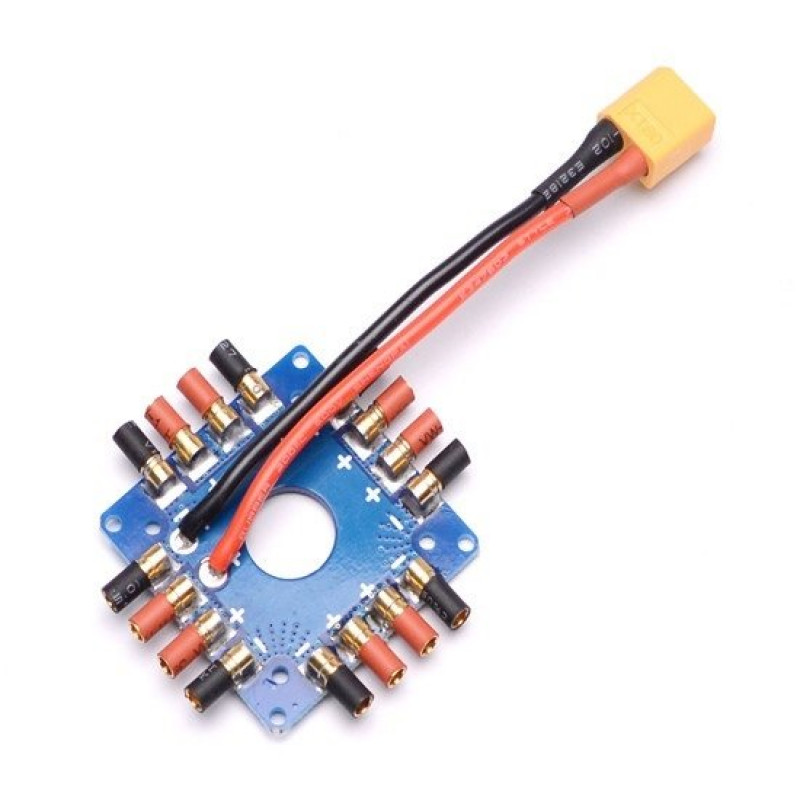

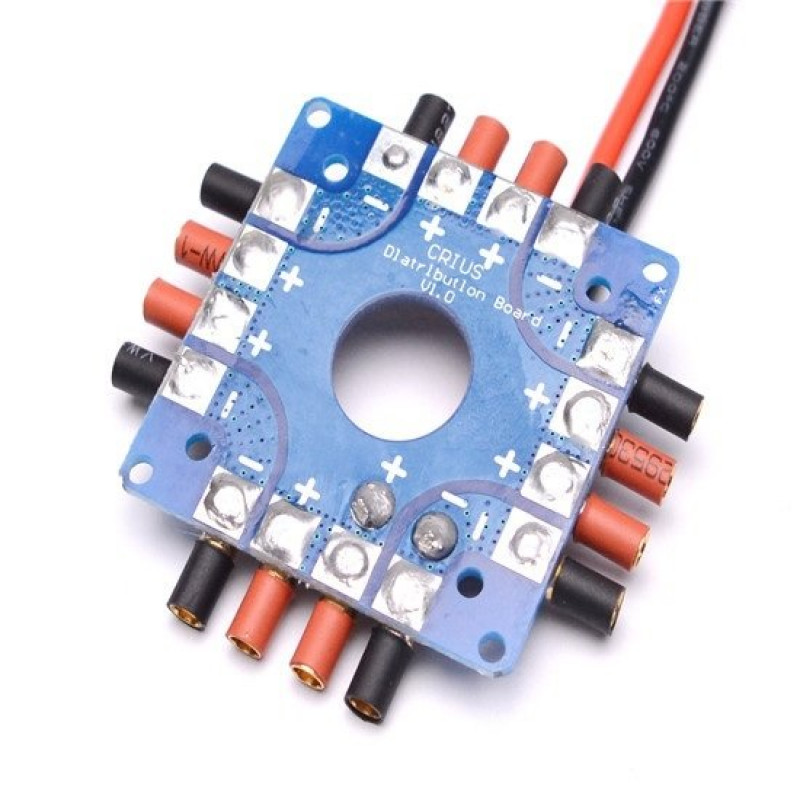

This is ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV. These lightweight distribution boards make powering multi-rotor aircraft easy.
Simply solder a battery connection onto the two central terminals, and you've got eight pairs of connections to use perfect for quadcopters, hexacopters, and even octocopters.
The ESC Power Distribution Board equips Soldered XT60 Plug & 3.5mm Banana Bullet Connectors is great for smaller multirotor builds. They're compact and lightweight and offer large solder pads making them easy to work with.
These boards can handle some serious current up to 20A per output for a quadcopter build or drop that down to 10A each for an octocopter.
Features :
- Material: glass fiber
- Compatible with MK KK flight control installment pitch of holes
- Compatible with MK KK flight control system
- Can connect 1-8 ESC.
- This has an XT60 plug to connect a battery.
- This Distribution board has 8 number of the channel to connect different ESCs with3.5mm Banana Bullet Connectors.
Package Includes :
1 x ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV
Specifications :-
| Material | Glass Fiber |
| Length (mm) | 50 |
| Width (mm) | 50 |
| Height (mm) | 2 |
| Weight (gm) | 25 |
| Mounting Holes(mm) | 4535 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 447.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
ESC Power Distribution Board Soldered XT60 Plug and 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV
- Product Code: EC-5807
- Availability: 18
-
Rs.432.00
- (Excluding 18% GST)
