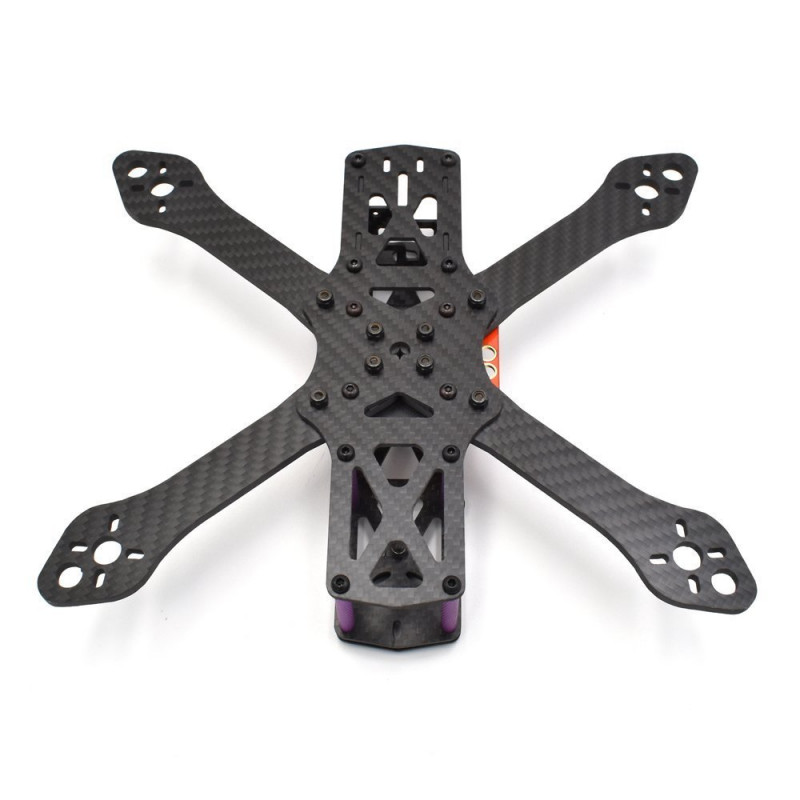

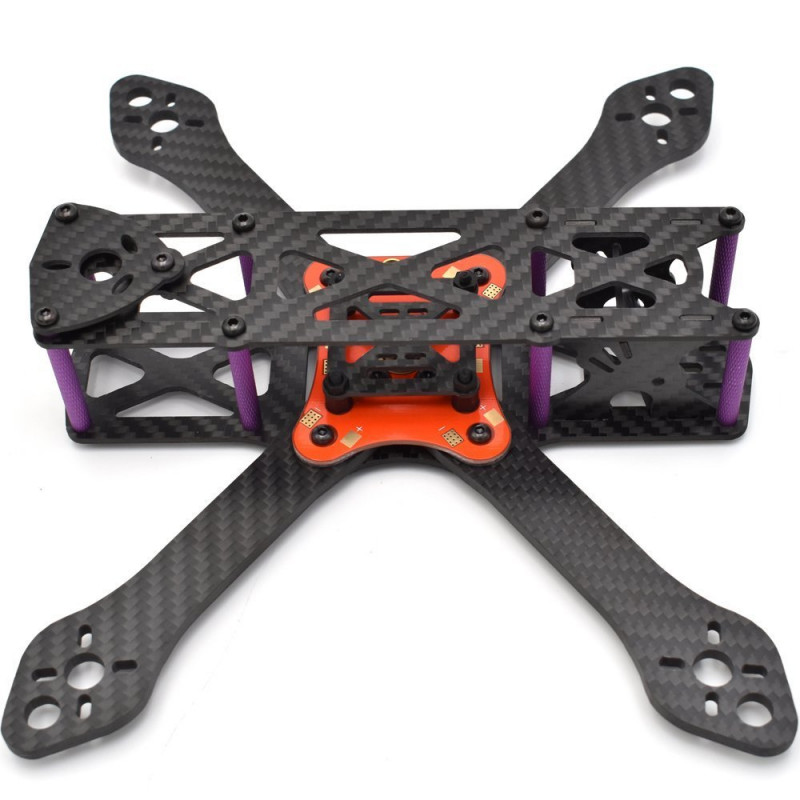

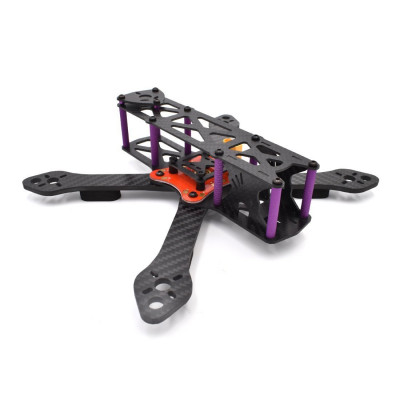

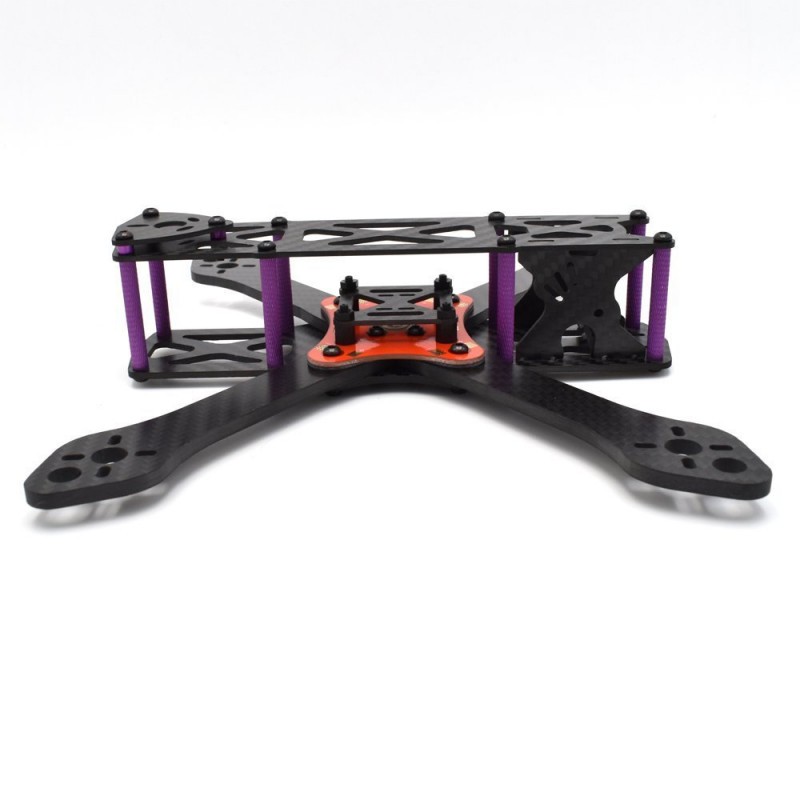

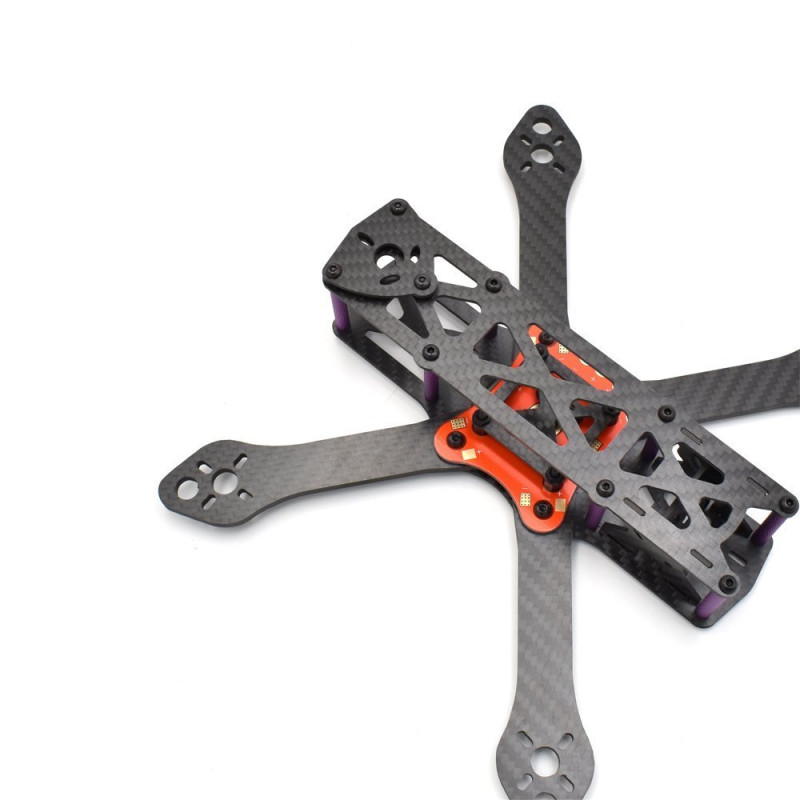

This Quadcopter Frame is the advanced version of the Martian-II reptile Quadcopter Frame. It keeps everything that has made the Martian-I Quadcopter frame successful. The MARTIAN-II REPTILE Quadcopter Frame is a mini-size quadcopter frame.

The MARTIAN-2 REPTILE 220mm Quadcopter Frame is manufactured with excellent quality 3K Carbon Fiber. Also, the arms of this frame are shorter than the previous one. In comparison between the Martian-I, Martian-II, and Martian-III it is found that the carbon fiber of the Martian-II frame is of the highest quality hence they are costlier in the class of Martian Quadcopter Frames.

This MARTIAN-II REPTILE 220mm Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. They have carbon fiber arms of thickness 4mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms equip dampers at the end, which protects motors during the crash. The frame enables quick swapping of arms in race pit settings.

The carbon fiber is mostly accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance.

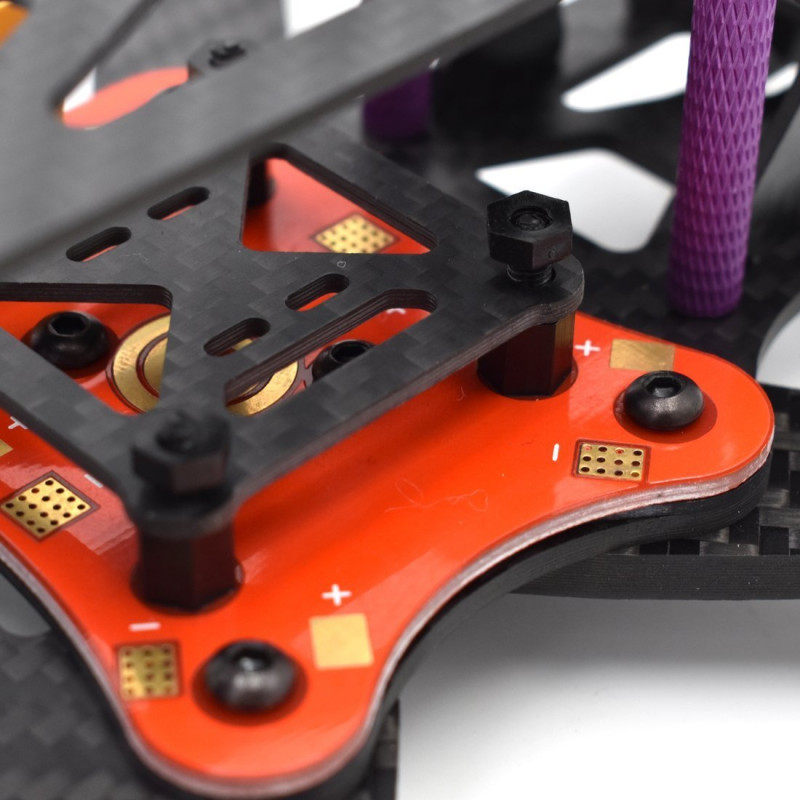

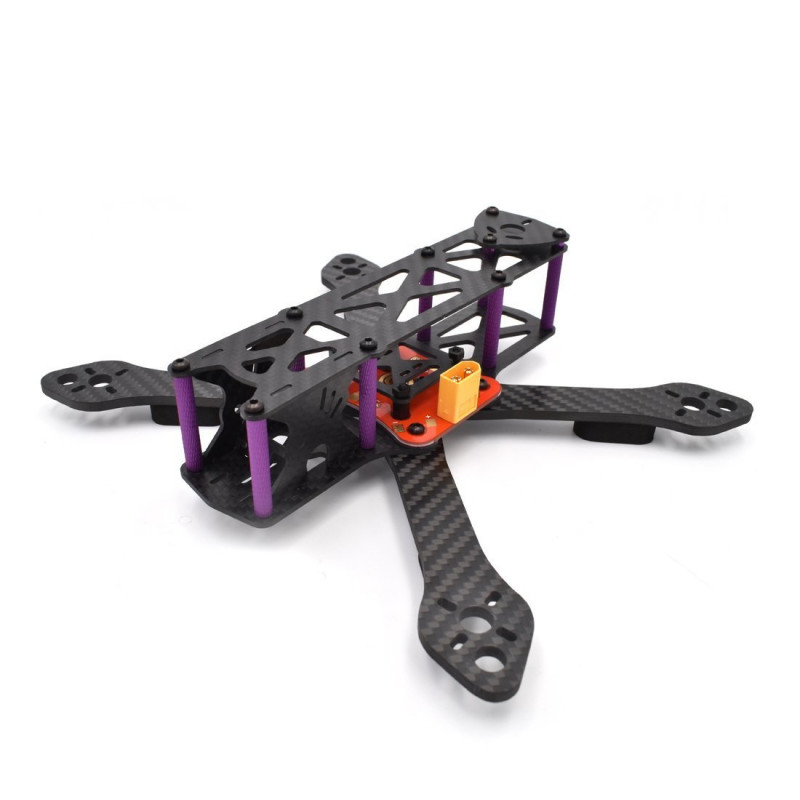

It comes with PDB(Power Distribution Board)and XT60 male connector to power up the Quadcopter. And is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The assembly is done with Black Oxide steel screws which are included in the pack.

The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover.

The frame has a wheelbase of 220mm and weighs around 140gm.This frame supports 37mm board cams as well as 26mmcams in cases with mounting brackets.

The MARTIAN-II REPTILE Quadcopter Frame equips anodized alloy spacers. The arms of this carbon fiber frame feature multiple motor mounting holes so as to fit a variety of motors.


Note: The dimensions and weight may have a 2% error.


Features :

  1. Lightweight and Durable.
  2. Made by super strong and advanced engineering material.
  3. The frame has excellent strength.
  4. The arm equips dampers for the safe landing.
  5. The arm has multiple motor mounting holes.


Package Includes :

1 x MARTIAN-II REPTILE 220mm Quadcopter Frame
1 x Power distribution board
4 x Vibration Dampers
1 x XT60 Connector
1 x Assembly Schematic Sheet
Set of Screws




Specifications :-

Model

Martian-II

Material

Carbon Fiber

Wheelbase (mm)

220

Weight (gm)

140

Arm Size (L x W) mm

132 x 30

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2047.3 (Inclusive of all Taxes)
