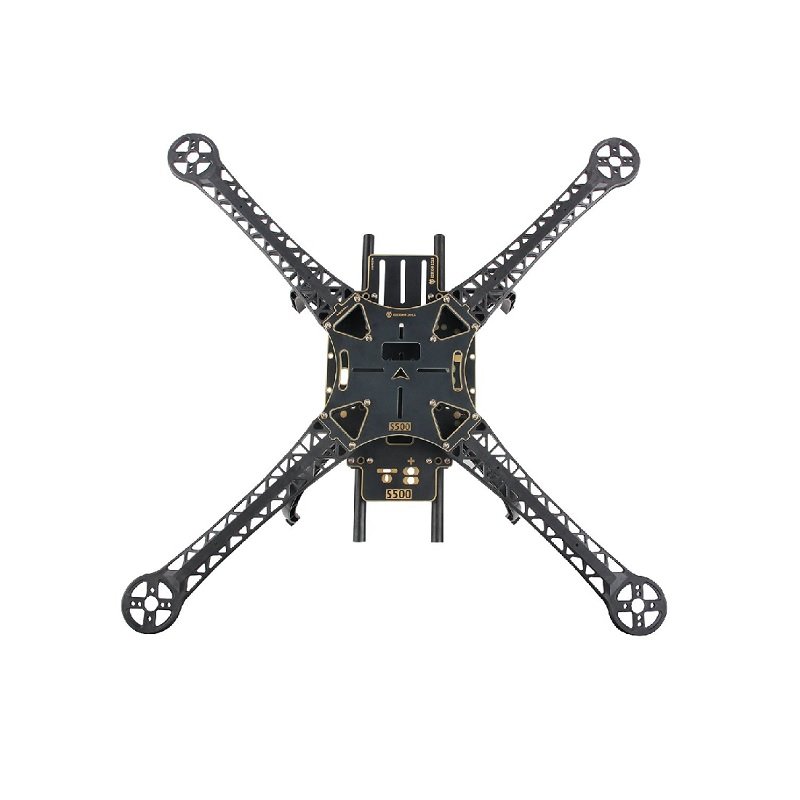

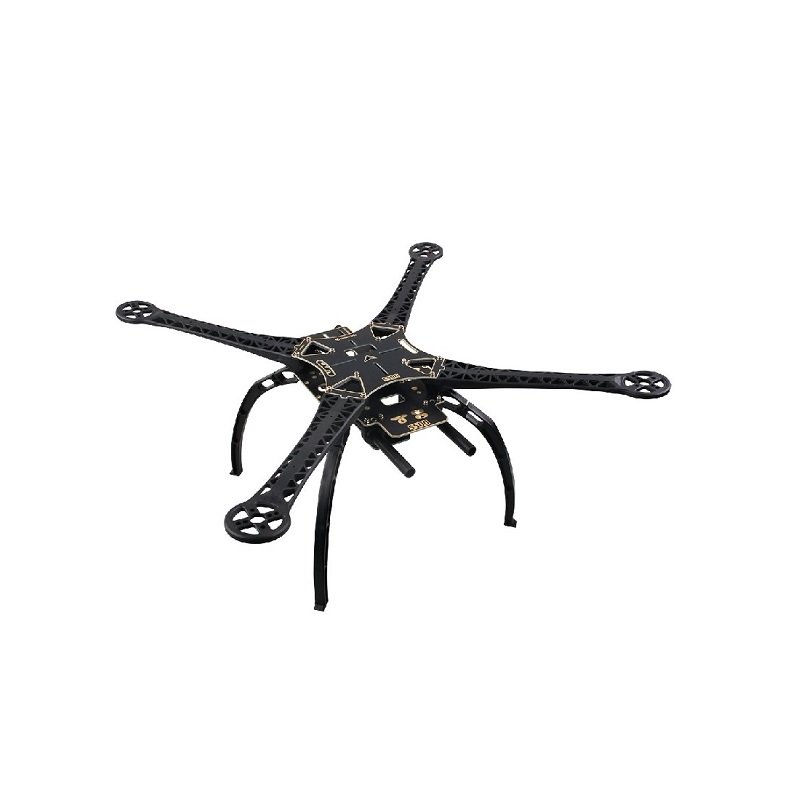

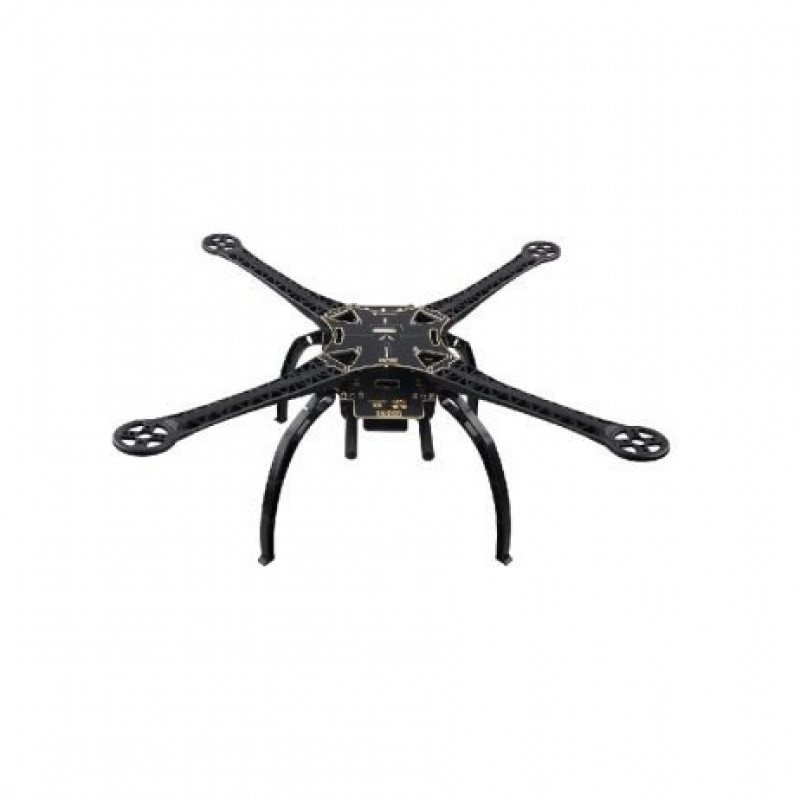

The S500 Multi-Rotor Air PCB Frame serves as the up-gradation of the F450 Quadcopter Frame. It keeps everything that has made the F450 Quadcopter frame successful.

The main great advantage of this frame is the arms have a slight upsweep, this gives the Quadcopter a dihedral effect which helps to make it very stable, especially when descending from altitude. The arms have a carbon fiber rod through the center for making the strongest arms we have seen to date in this style of frame. The Blue and black arms make orientation much easier and there is no need for different color props.

This S500Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

It has an adjustable battery mount to achieve the perfect weight distribution and the bottom frame is ready to take a whole host of camera mounts and gimbals making it perfect for FPV and filming projects.

The S500 has strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESCs to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S500Quadcopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.

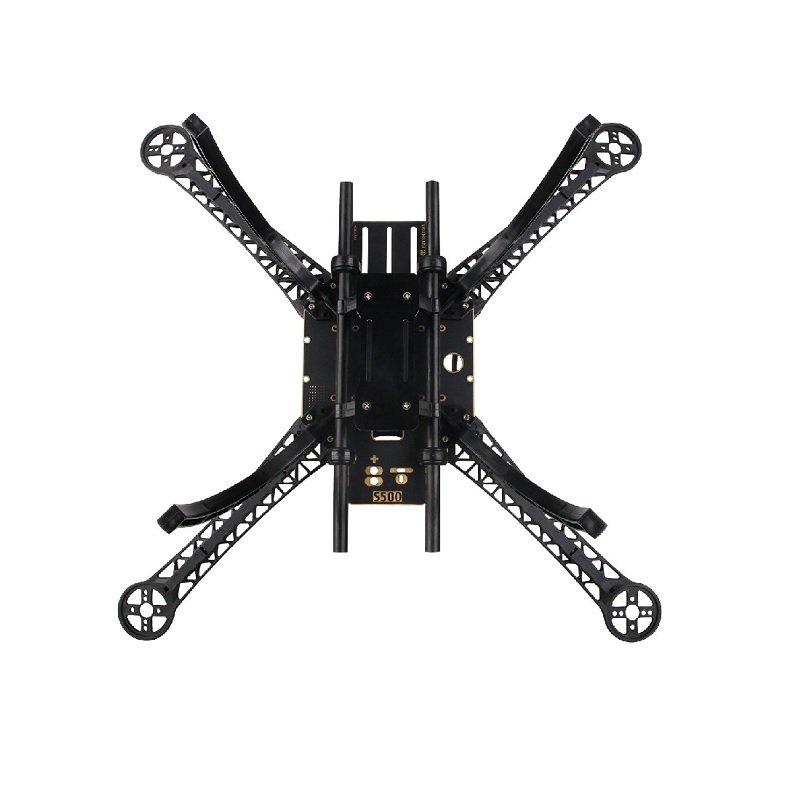

The frame has a wheelbase of 500mm and weighs around 400gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.

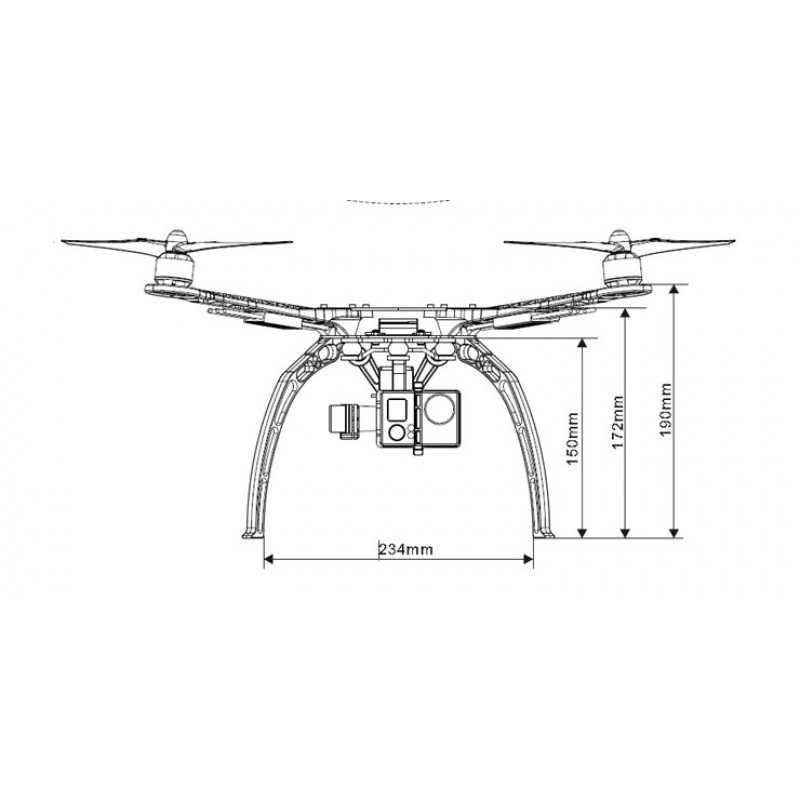

The landing gear has the ground clearance of 200mm and allows the mounting of the camera and other accessories at the bottom of the mainframe. The landing gear has plenty of height making it suitable for gimbals. The Plastic Landing Gear can with stand sudden crashes during flying of FPV Quadcopters.

The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and other electronic components.

The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of S500 Quadcopter Frames makes them so easy to assemble and disassemble.

Such lighter weight, higher strength Aerodynamic structure of this S500 frame featuring PA66 arms with glass fiber integrated frame make it the first choice of our customer.

Note: The dimensions and weight may have a 2% error.

Features :

1. Made by advanced engineering material, super strong & smooth
2. Easy to assemble and disassemble.
3. The frame is tough and durable.
4. The main glass fiber frame has good strength.
5. The arm equips support ridges for better and faster forward flight.
6. Features pre-threaded brass sleeves.
7. Large mounting tabs for camera mounting.
8. In-built power distribution board.

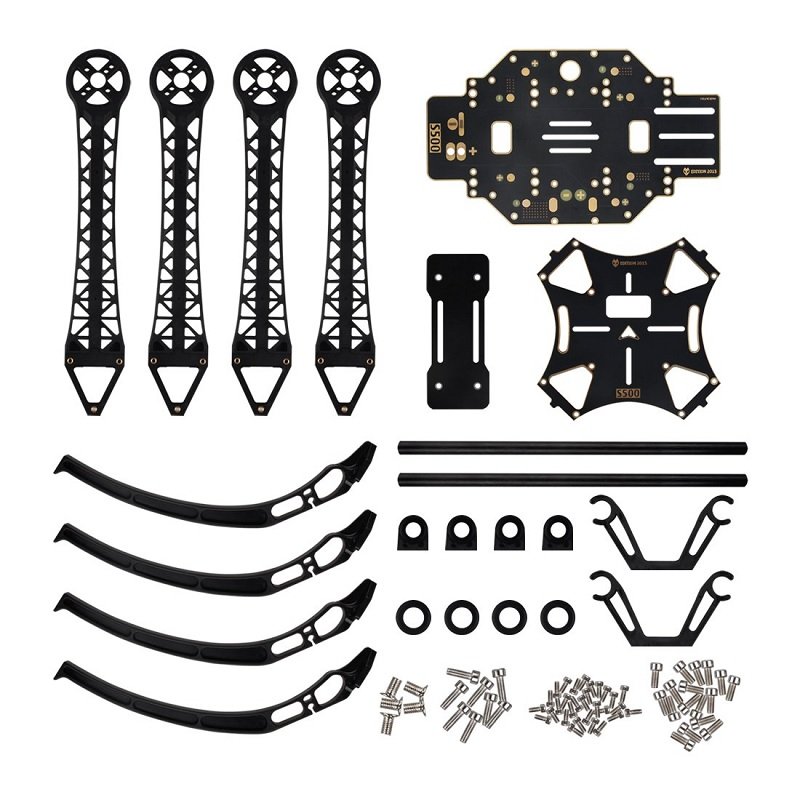

Package Includes :

1 x S500 quadcopter Frame(Top and Bottom) with Integrated PCB.
4 x S500 arms (Blue+White).
1 x Plastic Landing Gear for Quadcopter
2 x Special Pipes.
4 x Pipe Supports.
1 x Screw Accessories set. (Allen Head)
1 x A manual.

Specifications :-

Material	Glass Fiber + Polyamide Nylon
Wheelbase (mm)	500
Weight (gm)	405
Arm Size (L x W) mm	220 x 40
Motor Mounting Hole Dia. (mm)	3
Landing Gear Material	ABS Plastic
Landing Gear Height (mm)	200
Landing Gear Color	Black
Landing Gear Weight (gm)	75
