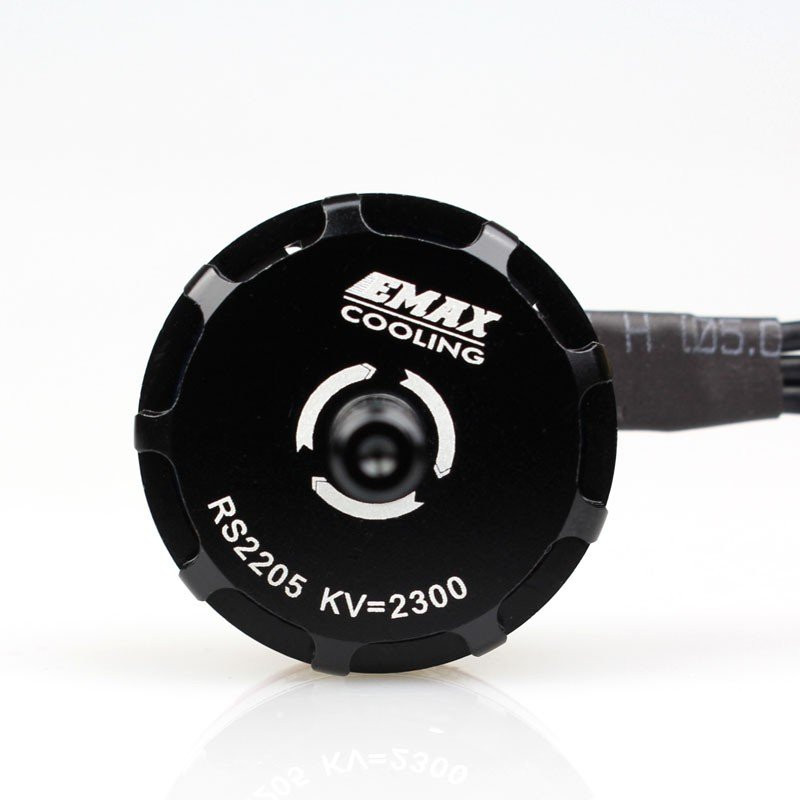

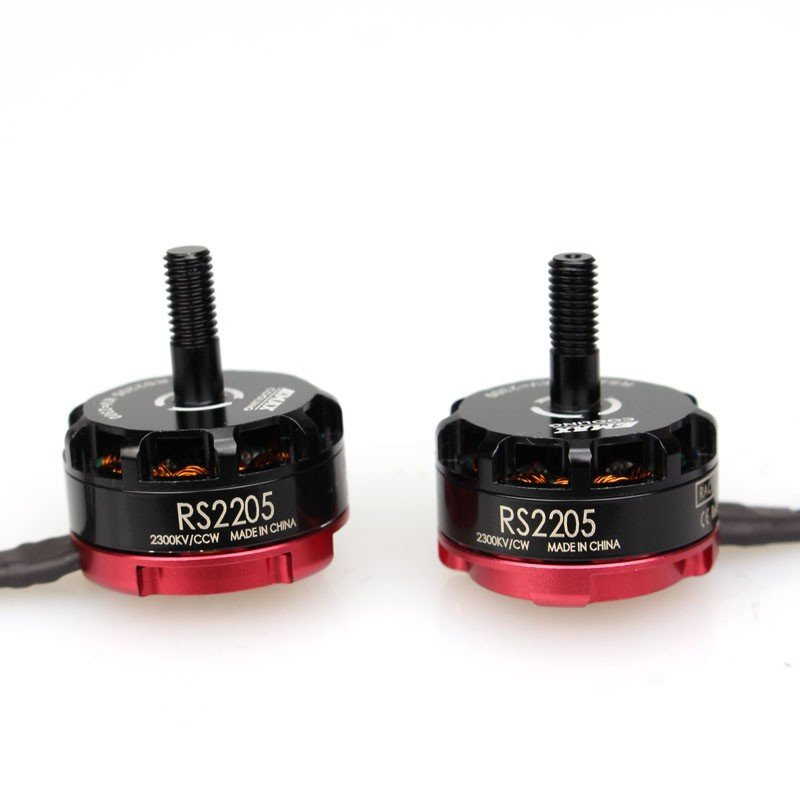

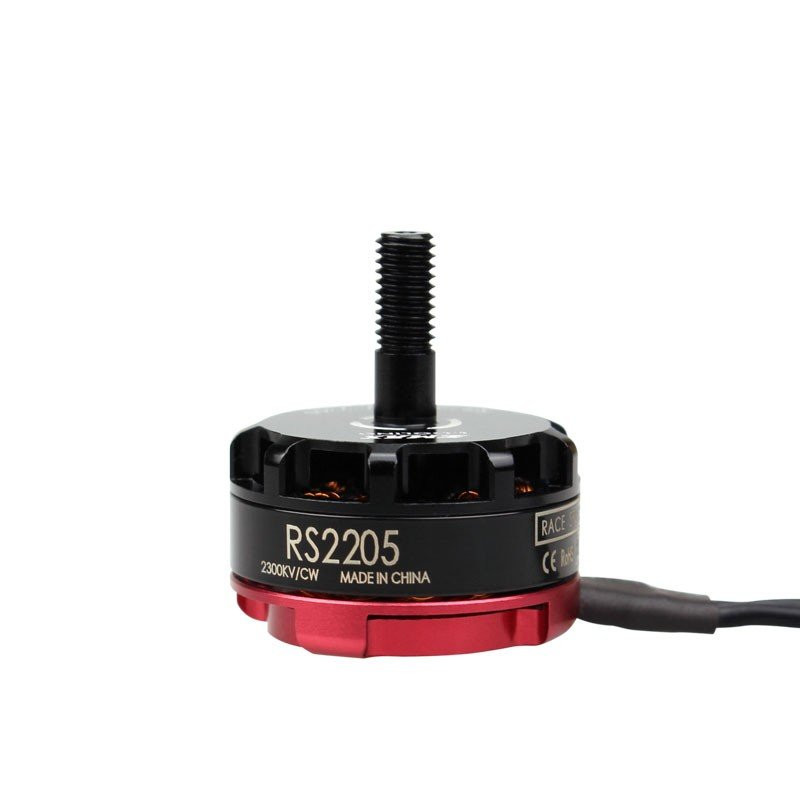

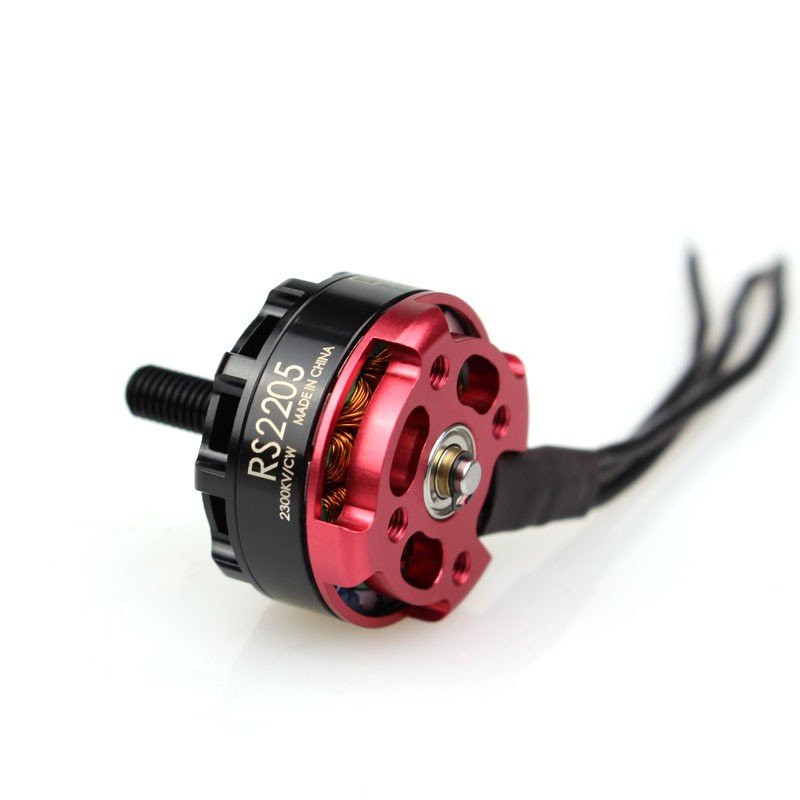

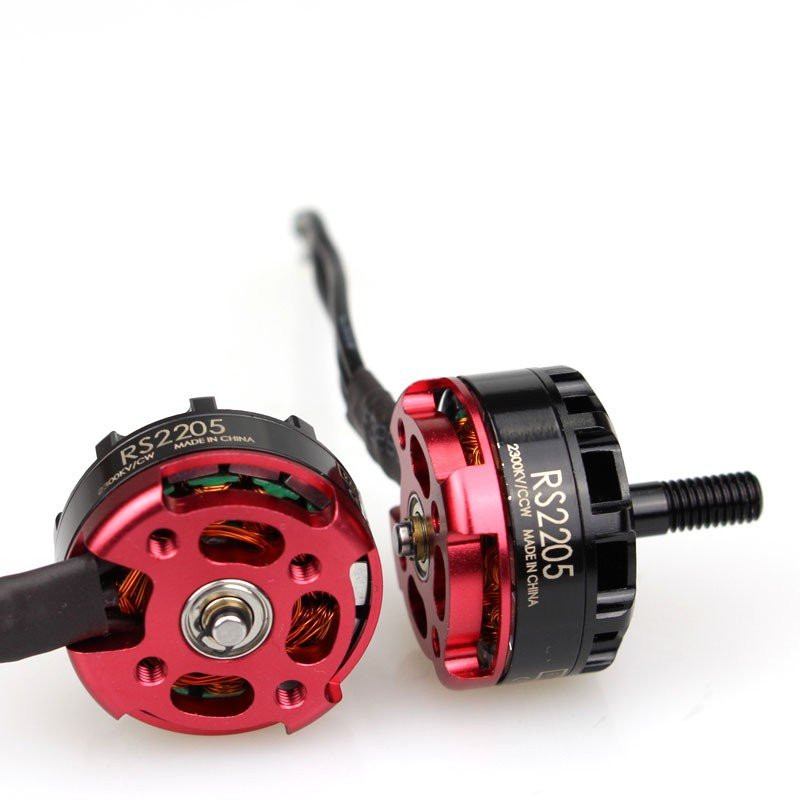

We like to introduce you Emax Motor with high-performance Race Spec series EMAX RS2205 2300KV Brushless DC Motor for FPV Racing Drone.

These EMAX Brushless DC Motor are imported from original Emax products manufacturers. The brand Emax is known for quality-oriented product manufacturing in the market.

It equips unique cooling fins. The faster this motor spins, the more air it moves and reduces the temperature up to 30%.

From the drawing board through to the production line, these motors have been designed and engineered to provide premium performance in their class. Every motor is precision crafted within tight tolerances.

When this EMAX Motor is paired with high-performance Orange Propellers they will deliver excellent thrust and awesome speed.

It houses highest grade N52 magnets and genuine Japanese NMB bearings.

Note:-

• The BLDC motor rotation is always opposite to the direction of Thread.
• As in this case, the motor rotation direction is CCW, so the Thread tightening direction will be CCW.

Features :

1. Up to 1024g thrust with 4sLiPO battery
2. Cooling design reduces motor temperature by up to 30%
3. Highest Grade N52 Neodymium magnets
4. Genuine Japanese NMB Bearings
5. Dynamically balanced in the factory.
6. 15mm Extended Prop Shaft allows virtually any prop with a 5mm hole.
7. 1 Lock nut and 2 sets of motor screws for 3mm and 4mm thick frames.
8. High purity copper windings

Package Includes :

1 x EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone

Specifications :-

Model	RS2205
Framework	12N14P
Motor KV (RPM/V)	2300
Maximum Thrust (gm)	1024
Compatible LiPO Batteries	3S ~ 4S
Shaft Diameter (mm)	3
Length (mm)	31.7
Width (mm)	27.9
Weight (gm)	30
Brand	EMAX
