Here is RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone. This Brushless motor for Drone is featuring self-cooling technique can reduce the temperature of the motor up to 30% which in turn increases the service life of this BLDC Motor.
The cooling fins and high-grade N52 Neodymium Magnets make them unique over other Drone DC Motors. Also, the genuine Japanese NMB Bearings and enhanced Anti Off U Ring bring more quality to the working of this motor.
When coupled with 3S LiPO Battery and Premium 5 Inch Propeller they can give you outstanding acceleration, good stopping power at high RPMs with thrust value around 1kg.
Features :
- High Strength N52 Neodymium Magnets
- Active Cooling Fins Greatly Reduces the operating motor temperature.
- Low CG and Light Weight Design.
- Japanese Bearing for providing quality performance.
- Enhance Anti Off U Ring For safe and stable operational characteristics.
Package Includes :
1 x RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone
1 x Mounting Screw set.
Specifications :-
| Model | RS2205 |
| Motor KV (RPM/V) | 2300 |
| Framework | 12N14P |
| Maximum Thrust (gm) | 1024 |
| Compatible LiPO Batteries | 3S ~ 4S |
| Shaft Diameter (mm) | 5 |
| Compatible Propellers Size (inch) | 5 |
| Length (mm) | 27.9 |
| Width (mm) | 27.9 |
| Height (mm) | 31.7 |
| Weight (gm) | 30 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1013.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

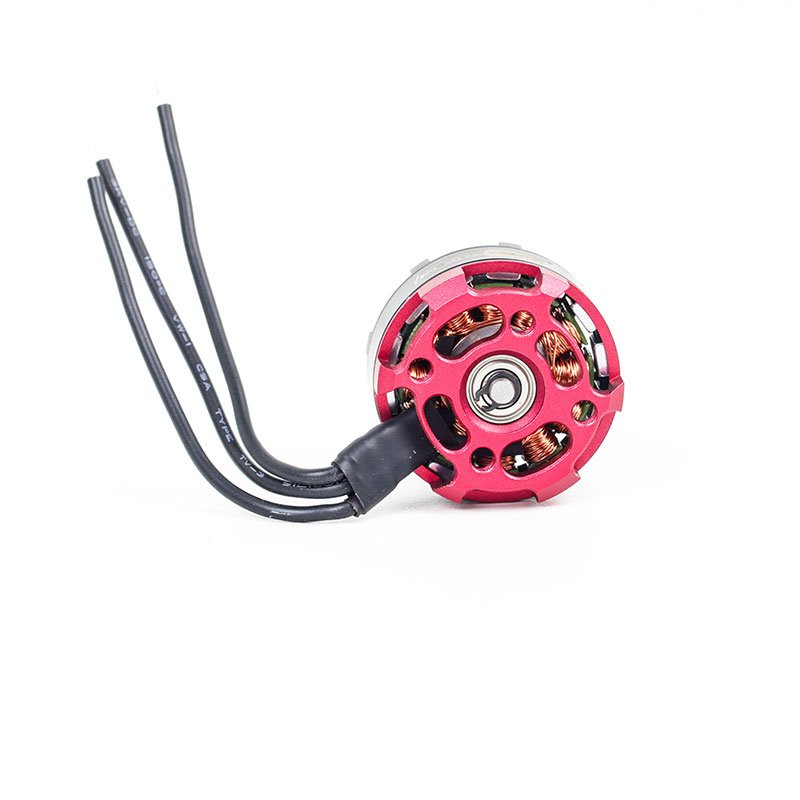

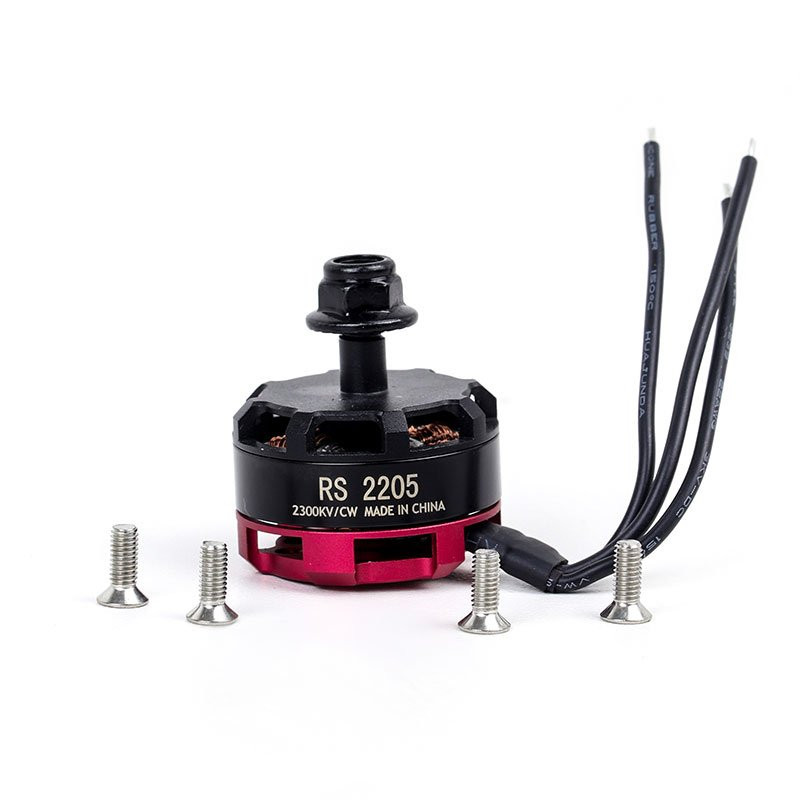

RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone - Black Cap (CW Motor Rotation)
- Product Code: EC-6067
- Availability: 27
-
Rs.859.00
- (Excluding 18% GST)
