Among a number of new entrants in the T-Motor Navigator range is the MN501-S series motors which are available in a number of RPM/V configurations to provide from approximately up to 5,000 grams of thrust. The new Navigator design provides borrows a number of features from the premium U-Power range and some developments from T-Motors ever-evolving lineup of FPV motors. The most striking change here is the more enclosed build, providing much better protection against dust and water ingress, which also incorporates a centrifugal fan, to draw air up through the motor and improve heat dissipation and overall cooling. Secondly, the new approach to winding motors with a high-temperature resistant winding gives more protection from burn-out caused by trapped propellers and other mishaps. There are not only important internal changes and external design changes, but the internal T-shaped shaft is now fixed with a clip and a screw to provide extra resilience, strength and reliability under load without developing a loose rotor.
MN501-S motors are designed for aerial photography platforms, monitoring systems and mapping/surveying aerial vehicles. These motors are compatible with T-Motor carbon-fiber propellers both fixed and folding.
Feature:
- Long Service Life
- Excellent Cooling Power
- Anti-High Temperature/Anti Overload
- Water- and Dust Resistance
- Anti Corrosion
Package includes :
1 x T MOTOR NAVIGATOR WATERPROOF MN501-S 300KV
Specifications :-
| Model | T MOTOR NAVIGATOR WATERPROOF MN501-S 300KV |
| Working Current(uA) | 3-37 |
| Maximum RPM | 5017 |
| Maximum Thrust (gm) | 5277 |
| Rated Power (W) | 916 MAX |
| Efficiency | 11-5 |
| Operating Temperature Range (C) | -40 to 85 |
| Internal Resistance(Ω) | 63 |
| Shaft Diameter (mm) | IN=6,OUT=4 |
| No. of Cells | 6-8 |
| Allowed Wire Size (AWG) | 16 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 12506.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

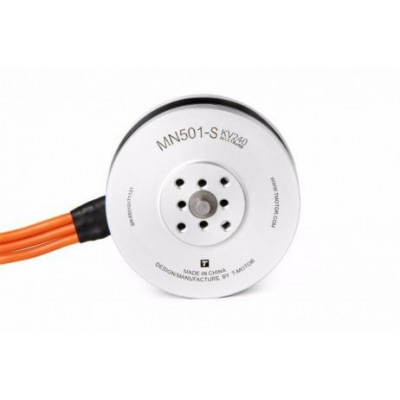

T MOTOR NAVIGATOR WATERPROOF MN501-S 300KV
- Product Code: EC-9429
- Availability: Out Of Stock
-
Rs.10599.00
- (Excluding 18% GST)
