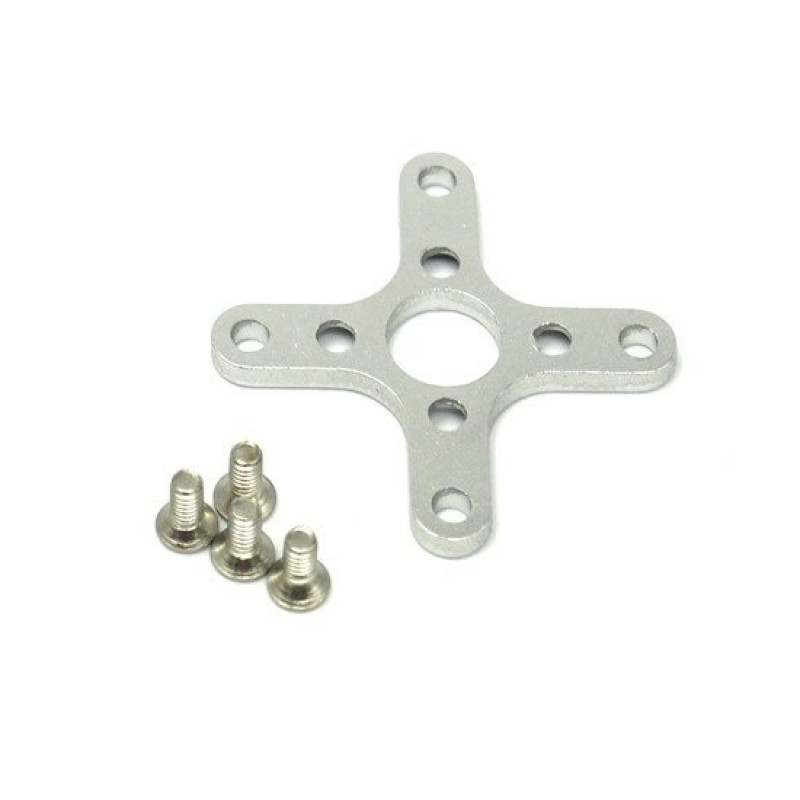

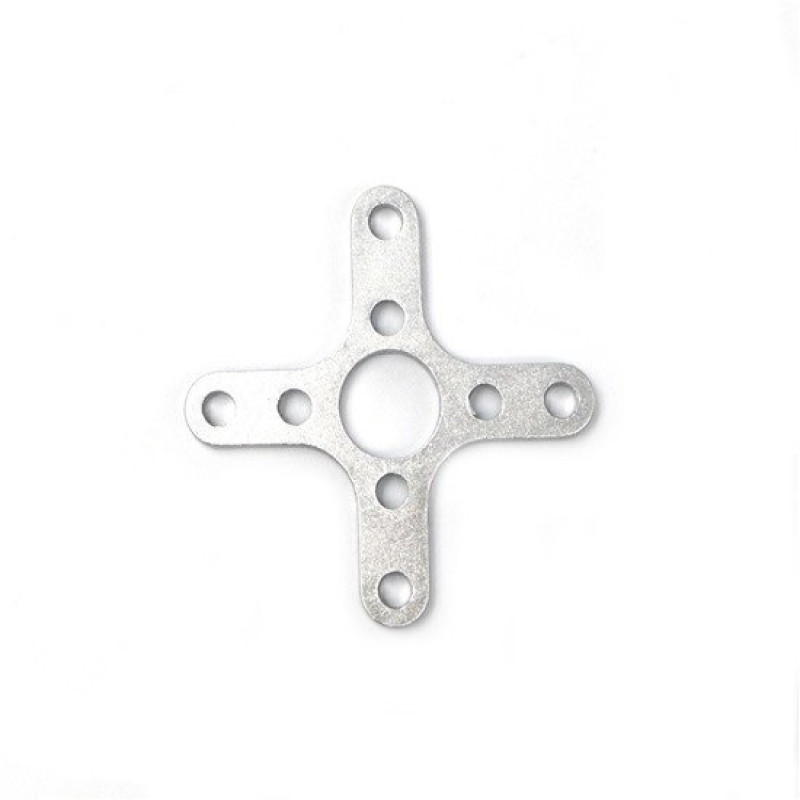

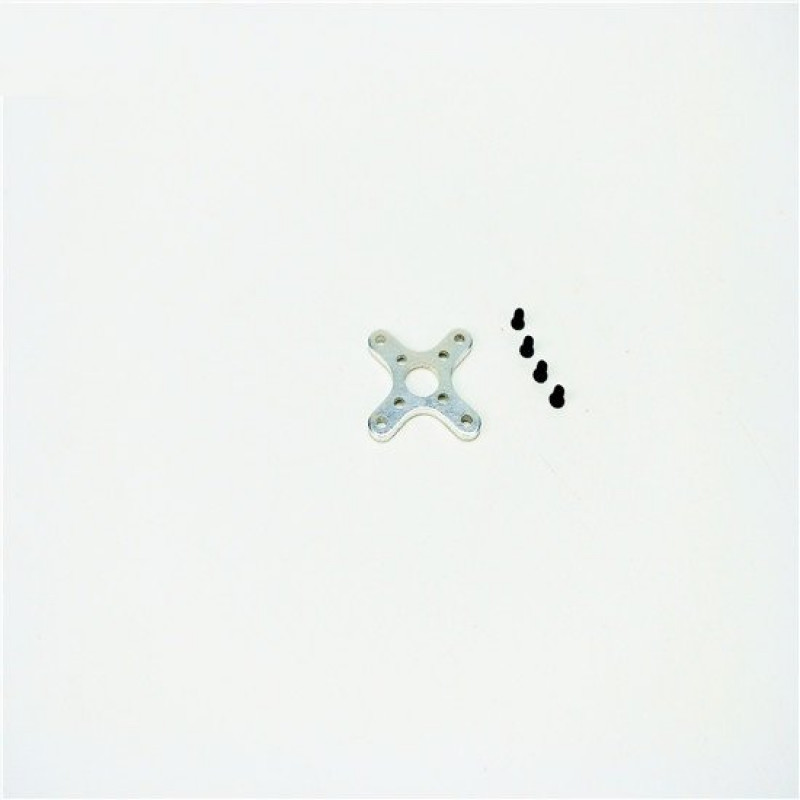

The X Type Cross Holder For 22xx series Brushless Motor is designed to fit the back of the 22 mm motors and provide a method of mounting the motor to a models firewall.
The 22 mm Cross Mount is made of strong aluminum alloy and finished in a durable and attractive black Electro-Coat finish. The mount comes packaged with four 3 mm machine screws to attach it to the back of your motor.
The mount weighs only 1.5 grams by itself; and with the 4 screws, it weighs 2.4 grams. The hole spacing on the back of the mount measures 16 mm center to center in one direction, and 19 mm center to center on the other.
With this standard hole spacing, the Scorpion 22 mm Cross mount will not only fit the Scorpion Motors; it will also fit the GWS 22mm out-runners, the Hacker A20 series out-runner. The Way point 22 mm Out-runners, the AXI 22 mm out-runners; or any other motor with a 16 or 19mm hole spacing.
Package Includes :
1 xX Type Cross Holder 22mm.
4 x Mounting Bolt.
Specifications :-
| Material | Aluminium |
| Color | silver |
| Weight (gm) | 4 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 57.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
X Type Cross Holder For 22xx series Brushless Motor
- Product Code: EC-6069
- Availability: 5
-
Rs.49.00
- (Excluding 18% GST)
