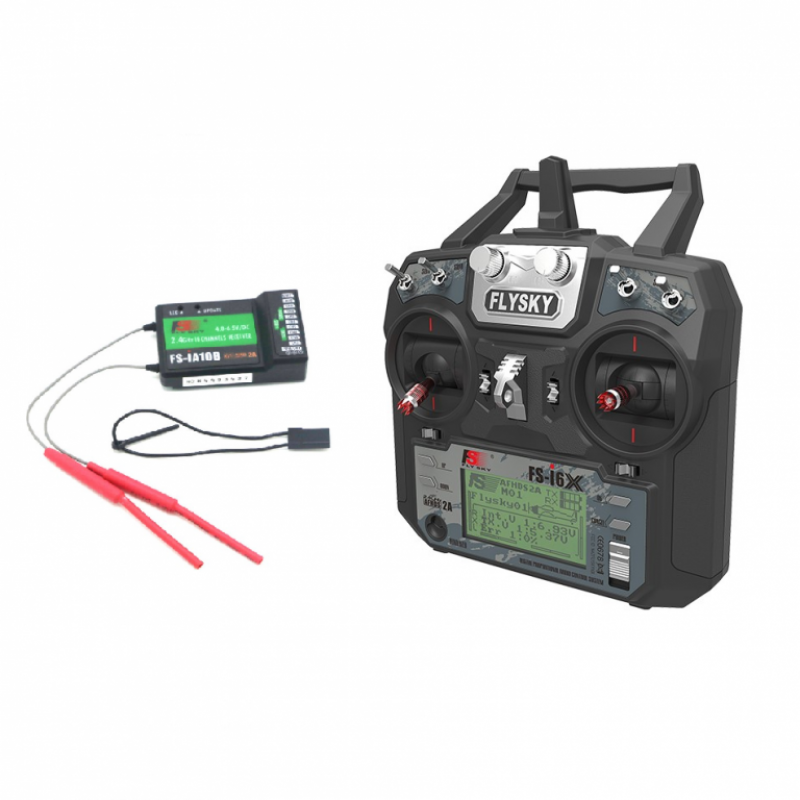

The Fly sky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver is for those who are interested in Radio controller.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and presented by FLYSKY is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity, FLYSKYs AFHDS technology is considered to be one of the leaders in the RC market today.

Features:-

Bidirectional Communication :
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration, and i-BUS Support.

Multi-channel Hopping Frequency :
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided into 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna :
The high efficiency Omni-directional high gain antenna cuts down on interference while using less power and maintaining a strong reliable connection.

Unique ID Recognition System :
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the operation of the system.

Low Power Consumption :
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one-tenth the power of a standard FM system, dramatically extending battery life.


Specifications and Features :

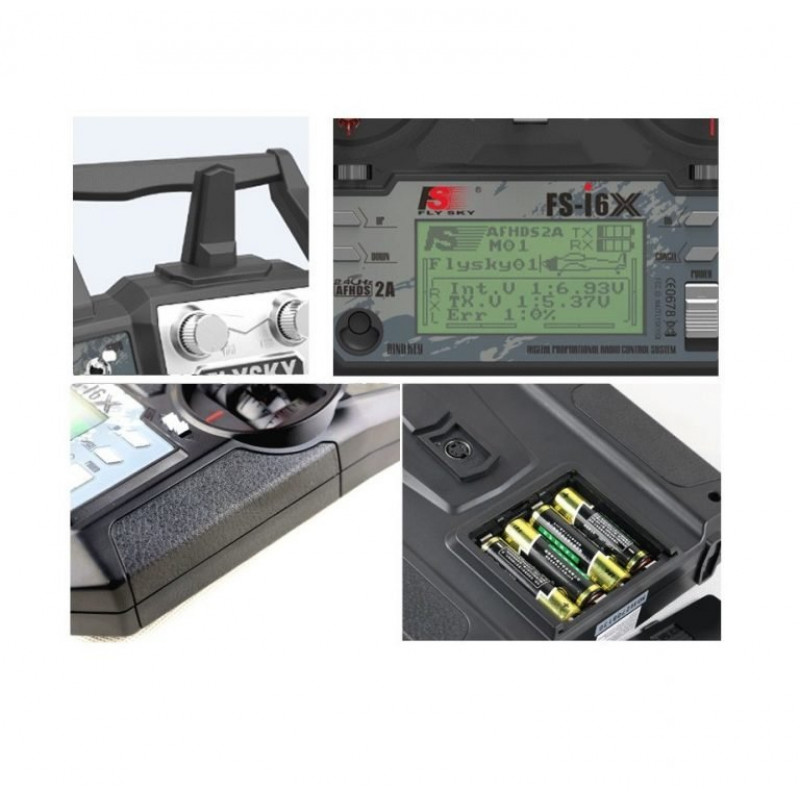

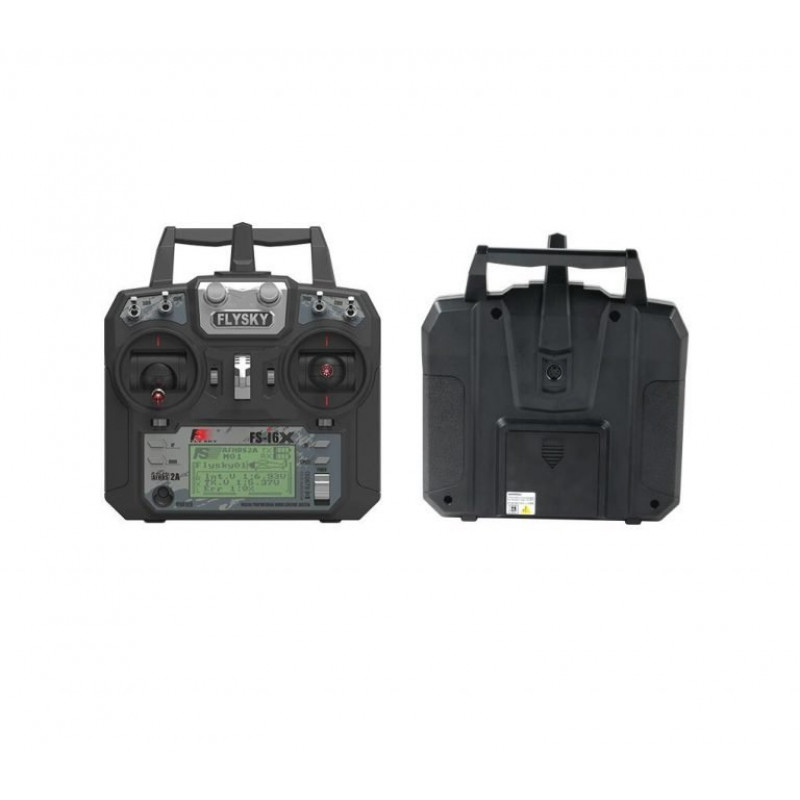

Specification forFS-i6X RC Transmitter :
  1. Item:FS-i6X RC Transmitter
  2. Tx Channel: 6
  3. Model Type: Fixed-Wing/Glider/Helicopter
  4. RF Range: 2.408-2.475GHz
  5. RF Power : < 20dBm
  6. RF Channel: 135
  7. Bandwidth : 500KHz
  8. 2.4GHz System : AFHDS 2A / AFDHS
  9. Modulation Type: GFSK
  10. Stick Resolution: 4096
  11. Low Voltage Warning: < 4.2V
  12. DSC port: PS/2 Port PPM
  13. Chargeable: No
  14. Antenna Length: 26mm (Dual Antenna)
  15. Weight: 392g
  16. Power : 6V DC 1.5A
  17. Display: STNTransflective Display, LCD 12864 Lattice, VA 73x39mm, LCD with white backlight
  18. Size : 174 x 89 x 190 mm
  19. Online Update: Yes
  20. Color: Black
  21. Certificate: CE0678, FCC

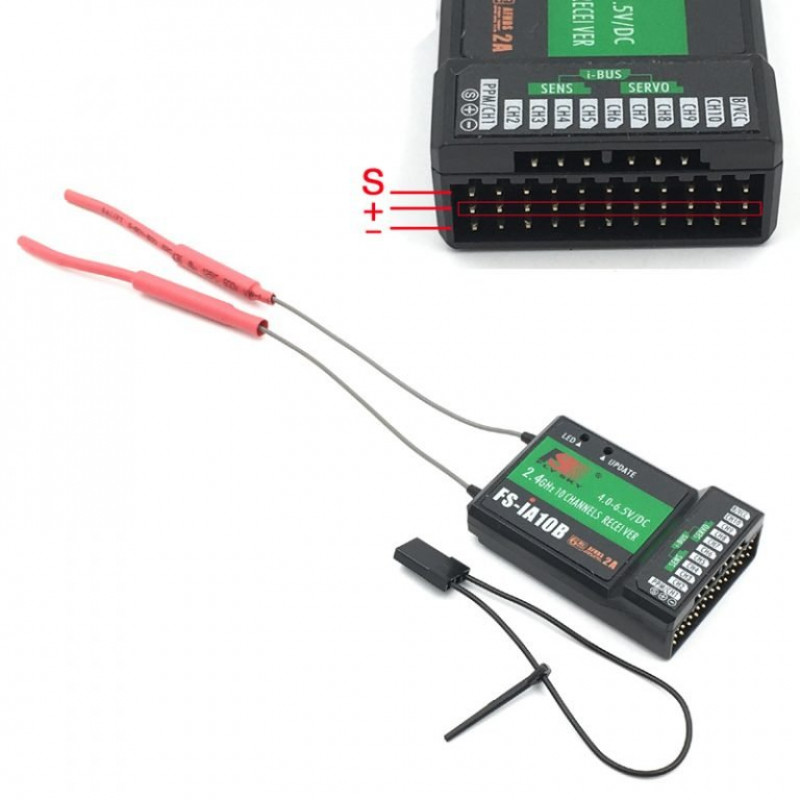

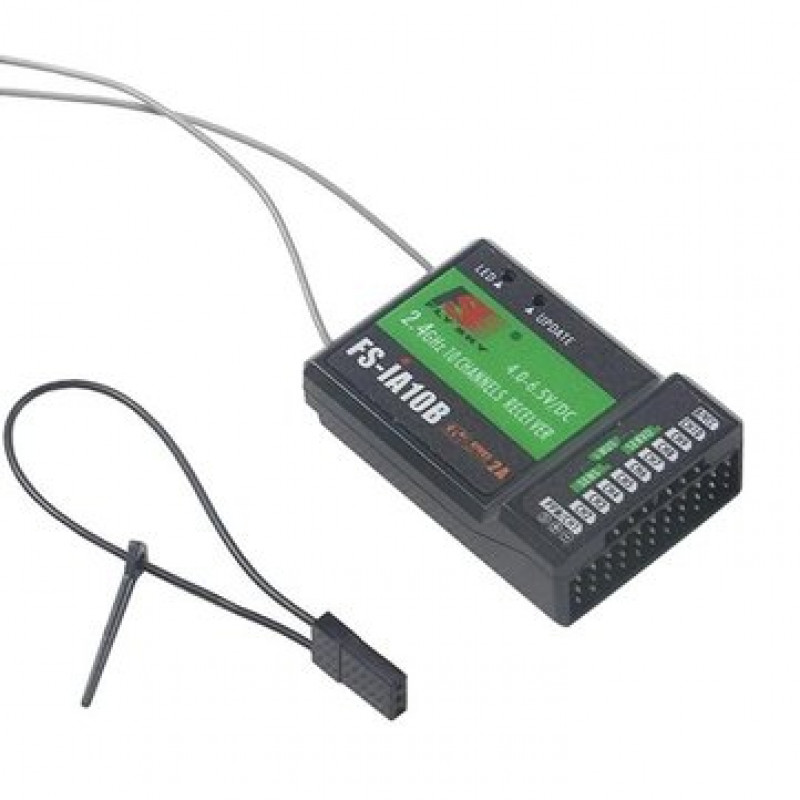

Specifications forFS-iA10B RC Receiver:
  1. Rx Channels: 10
  2. Suitable models: Airplane / glider / helicopter Health
  3. Frequency range :2.4-2 .48 GHz
  4. Transmitting power: not more than 20dBm
  5. Receiver sensitivity:-105dBm
  6. 2.4G modes: automatic frequency second generation digital system
  7. Encoding: GFSK
  8. Antenna length: 26 mm * 2 (dual antenna)
  9. Weight: 19.3 g
  10. Input power :4.0-6 .5 V DC
  11. Dimensions: 47 x 33.1 x 14.7 mm
  12. Color: Black
  13. Certification: CE0678, FCC
  14. i-BUS Interface: Yes
  15. Data acquisition interface: Yes
  16. Color: Black.
  17. Model Type : Airplane / Glider / Helicopter
  18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Package Includes :

1 x Fly sky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter.

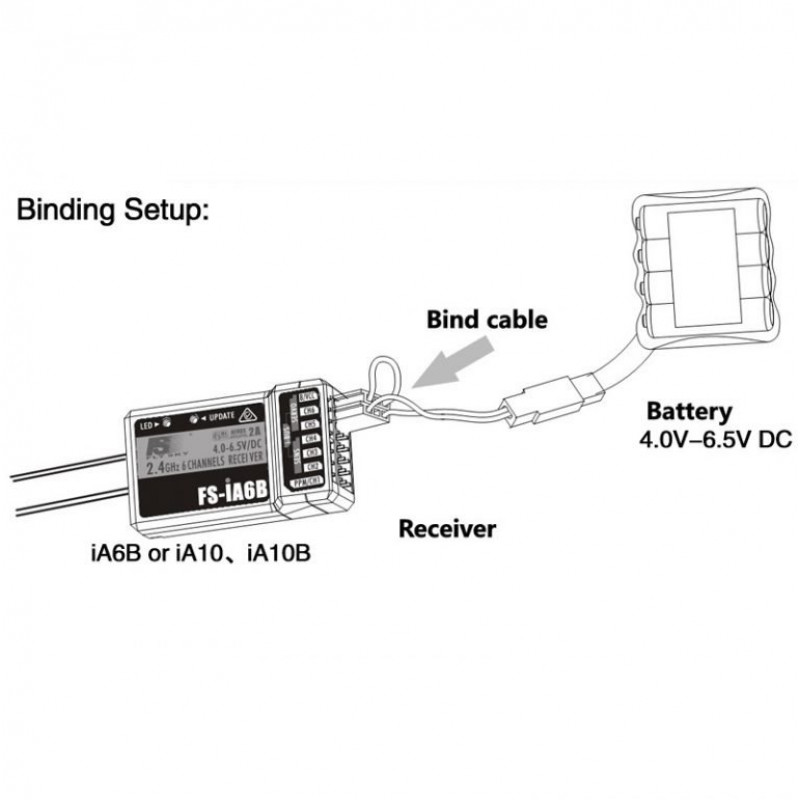

1 x FS-iA10B 2.4GHz 10CH Receiver with Binding cable.
1 x PS2 to USB Update Cable.
1 x User Manual.



Specifications :-

Antenna Length (mm)

26

Certificate

CE0678, FCC

Charging Port

No

Code Type

Digital

Color

Black

Dimensions (mm) LxWxH

174 x 89 x 190

DSC Port

PS/2 Port PPM
Yes

Low Voltage Warning

On <4.2V

Model Type

Digital Radio Transreceiver

Modulation Type

GFSK

No. of Channels

Receiver: 10
Transmitter: 6

Operating Voltage (VDC)

6

RF Power

< 20dBm

Weight (gm)

392

Default Operating Mode

Mode 2 (Left-Hand Throttle)

Band-Range (GHz)

2.40 ~ 2.48

Bandwidth (KHz)

500



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 5662.82 (Inclusive of all Taxes)
