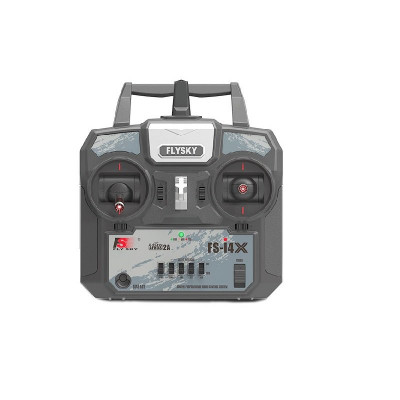

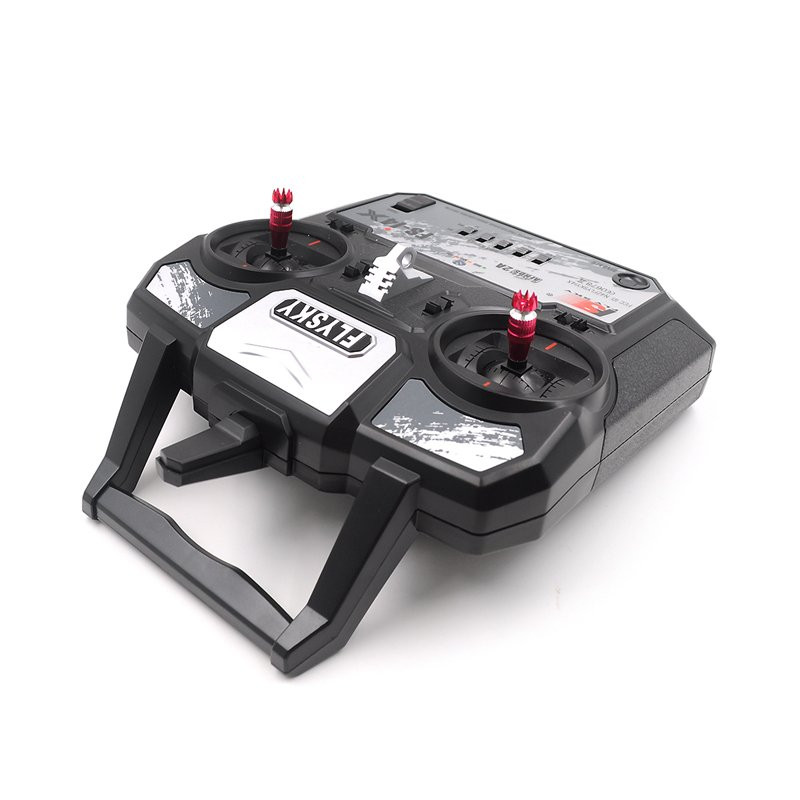

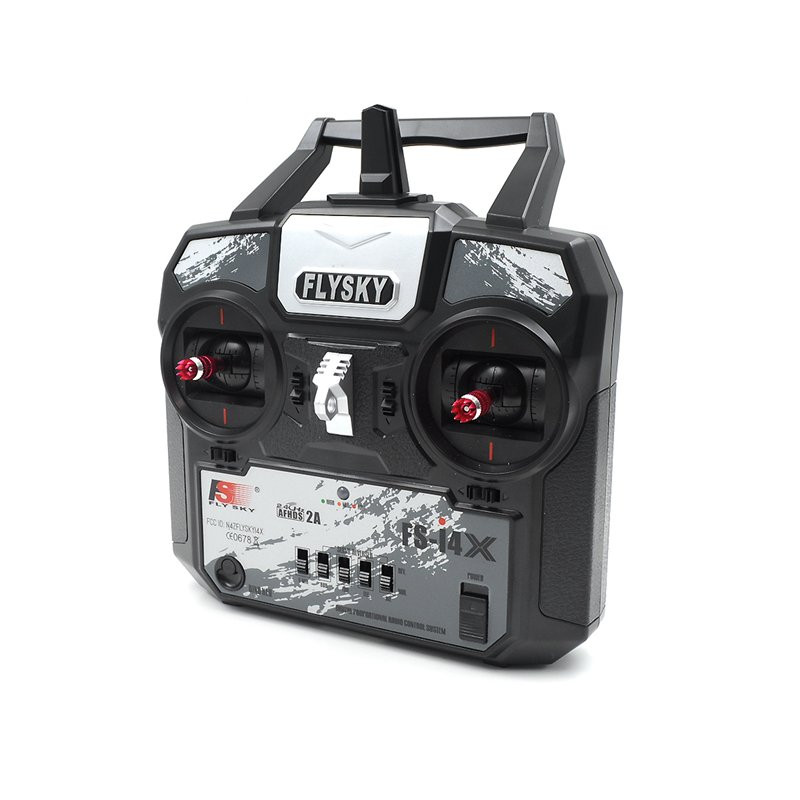

This FlySky FS-i4X 2.4GHz 4 Channel AFHDS R/C Transmitter + FS-A6 Receiver radio system uses a high gain and high-quality multi-directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long-range radio transmission. Each transmitter has a unique ID when binding with a receiver, the receiver saves that unique ID and can accept only data from the unique transmitter, this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
With strong initiative and passive anti-interference ability and V-MIX mix control system, compatible with many models. According to your own needs, you can DIY expansion channel, this item can be expanded to 10CH. Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.
This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption. AFHDS2A system has the automatic identification function, which can switch automatically current mode between the single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance

Item Features:-
  1. Use: Vehicles & Remote Control
  2. Remote Control Peripherals/Devices: Remote Controller
  3. RC Parts & Accs: Transmitters
  4. Model Number:FS-I4X
  5. Material: Plastic


Specifications

Transmitter:
  1. Item Name: FS-i4X(Latest Released Model)
  2. Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left-Hand Throttle)
  3. Default Mode: Mode 2
  4. Band Range: 2.4055-2.475GHz
  5. Band Amount: 140
  6. No. of Channel: 4
  7. Model Type: RC Airplane/Glider/Helicopter
  8. RF Power: <20dBm
  9. Bandwidth: 500KHz
  10. 2.4GHz System: AFHDS 2A / AFHDS
  11. Modulation Type: GFSK
  12. Stick Resolution: 1024
  13. Low Voltage Warning: <4.2V
  14. DSC Port: PS2 PPM
  15. Antenna Length: 26mm *2
  16. Weight: 335g
  17. Power: 6V DC 1.5AA*4(Not included)
  18. Display: LED Indicators
Receiver:
  1. Item Name: FS-A6
  2. No. of Channels: 6
  3. Model Type: Fixed-Wing/Glider/ Helicopter
  4. RF Range: 2.4055-2.475GHz
  5. RF Channel: 140
  6. RF Receiver Sensitivity: -105dBm
  7. Bandwidth: 500KHz
  8. 2.4GHz System: AFHDS 2A
  9. Modulation Type: GFSK
  10. Power: 4.0-6.5V DC
  11. Antenna Length: 26mm

Package Includes:

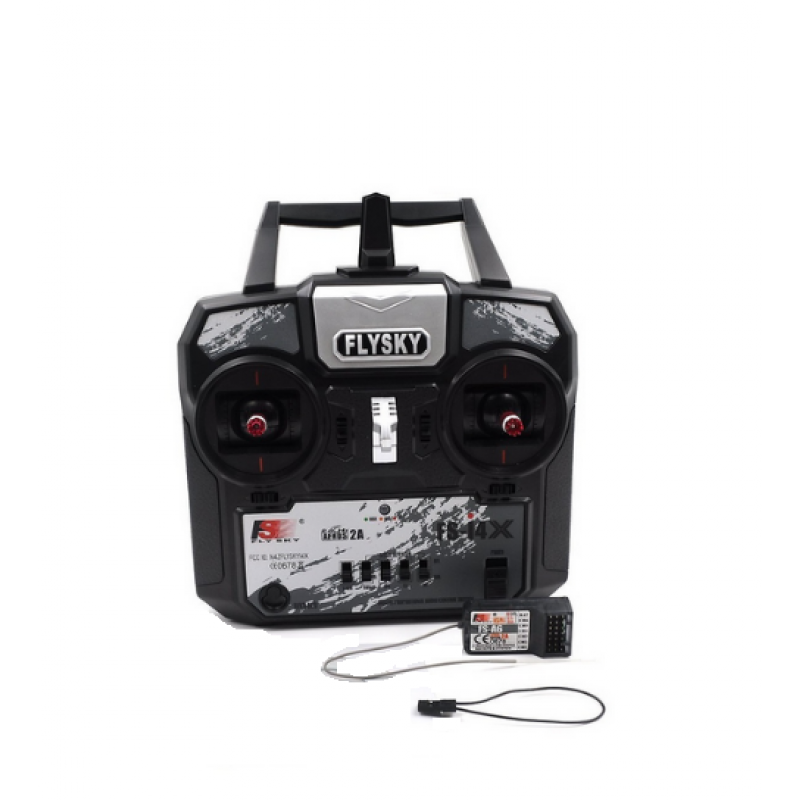

1 xFS-i4X 2.4GHz 4CH AFHDS R/C Transmitter.

1 xFS-A6 Receiver.

1 x User Manual.



Specifications :-

Antenna Length (mm)

26

Certificate

CE

Charging Port

No

Code Type

Digital

Color

Black

Dimensions (mm) LxWxH

170 x 160 x 40

DSC Port

No

Model Type

Digital Radio Transreceiver

No. of Channels

4

Operating Voltage (VDC)

6

RF Power

Less Than 20 dbm

Sensitivity (dBm)

1024

Weight (gm)

335

Low Voltage Warning

On <4.2V

Default Operating Mode

Mode 2 (Left-Hand Throttle)

Band-Range (GHz)

2.40 ~ 2.48

Simulator port

Yes

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2948.82 (Inclusive of all Taxes)
