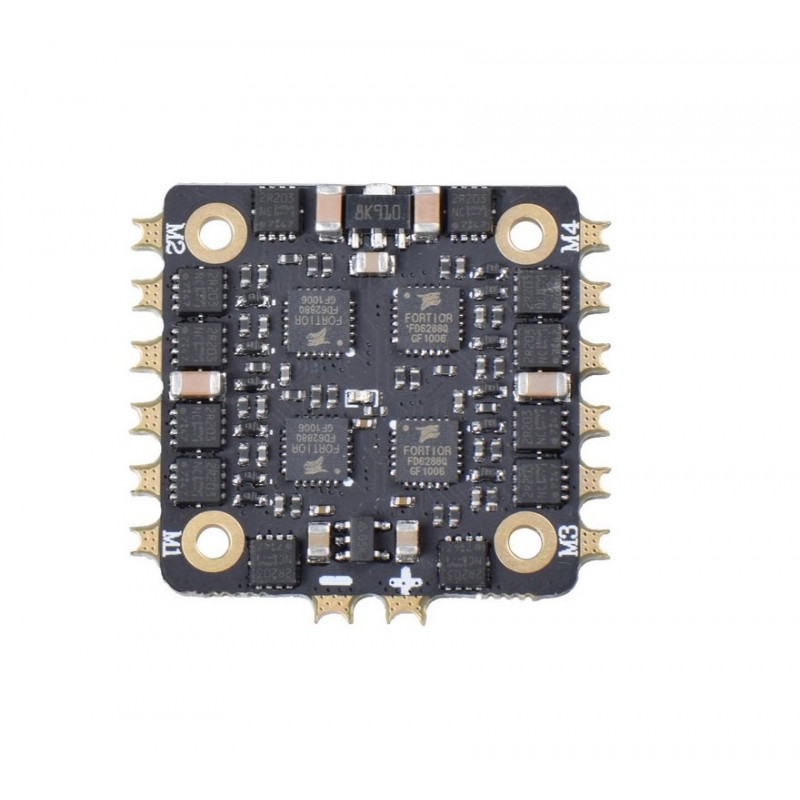

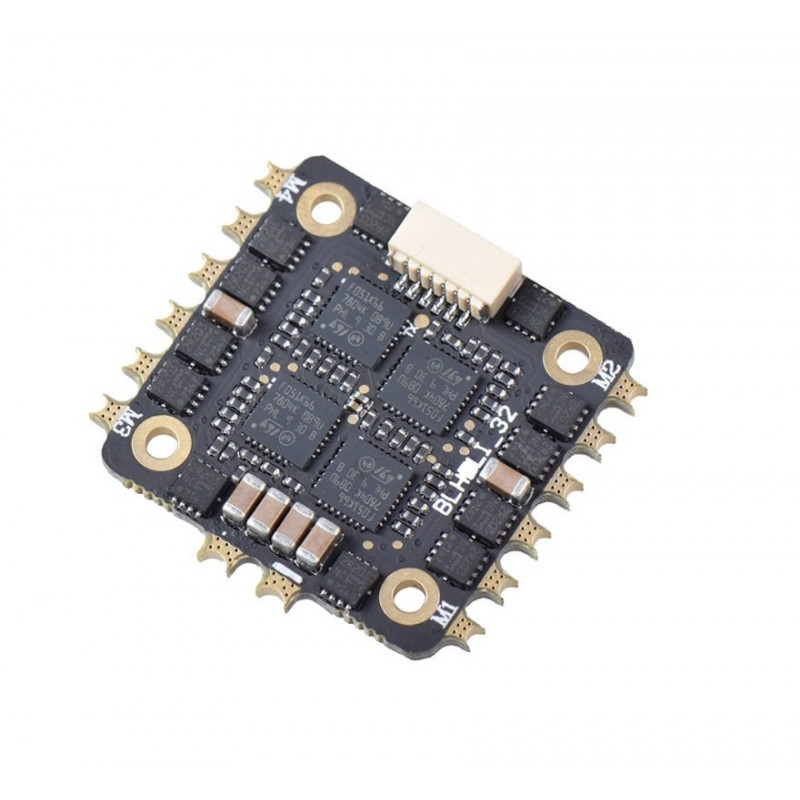

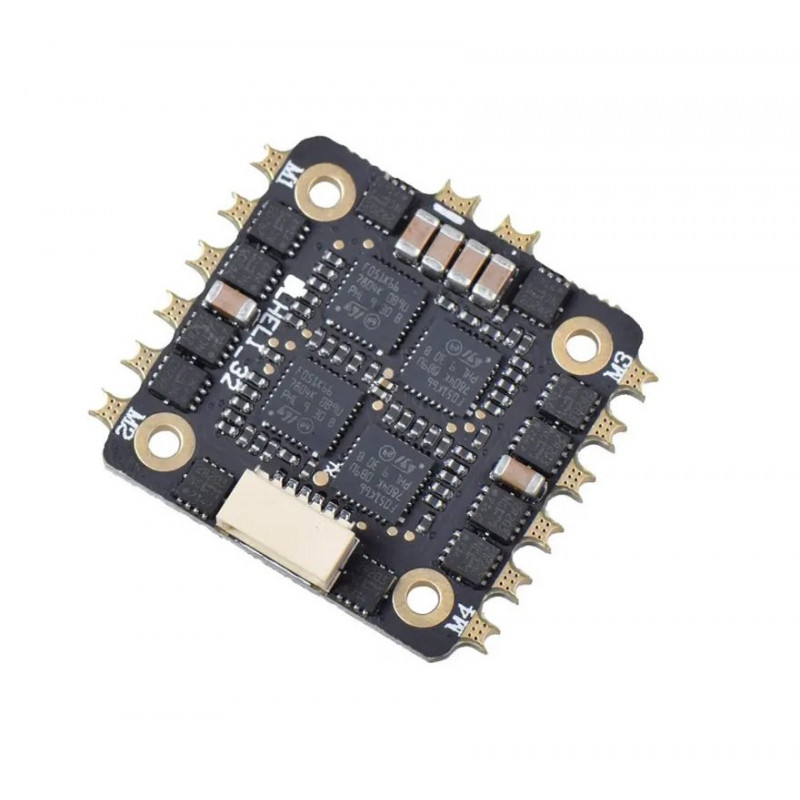

25A 2-4S Blheli_32 4 IN 1 Brushless ESC is mainly used for RC Drone FPV Racing. BLHeli is an ESC firmware, and BLHeli_32 is the 3rd generation after BLHeli and BLHeli_S.The 32 bit processor on BLHeli_32 ESC has faster clock speed than the 8 bit processors in BLHeli_S ESCs.

An electronic speed controlor ESC is an electronic circuit that controls and regulates the speed of an electric motor. It may also provide reversing of the motor and dynamic braking.


Features:

  1. Firmware:                                           BLHELI 32 ESC
  2. programmable PWM frequency of:         up to 48KHz
  3. Processor:                                           32-bit ARM architecture
  4. Power supply:                                      2-4S(7.4-16.8V)
  5. Continuous current:                              25A
  6. Burst current:                                      30A(5S)
  7. Supports:                                            Dshot1200/600/300/150
  8. Supports:                                            Oneshot125, Multishot, PWM signal control
  9. Auto-timing:                                        for higher efficiency and reliability

Package Includes:

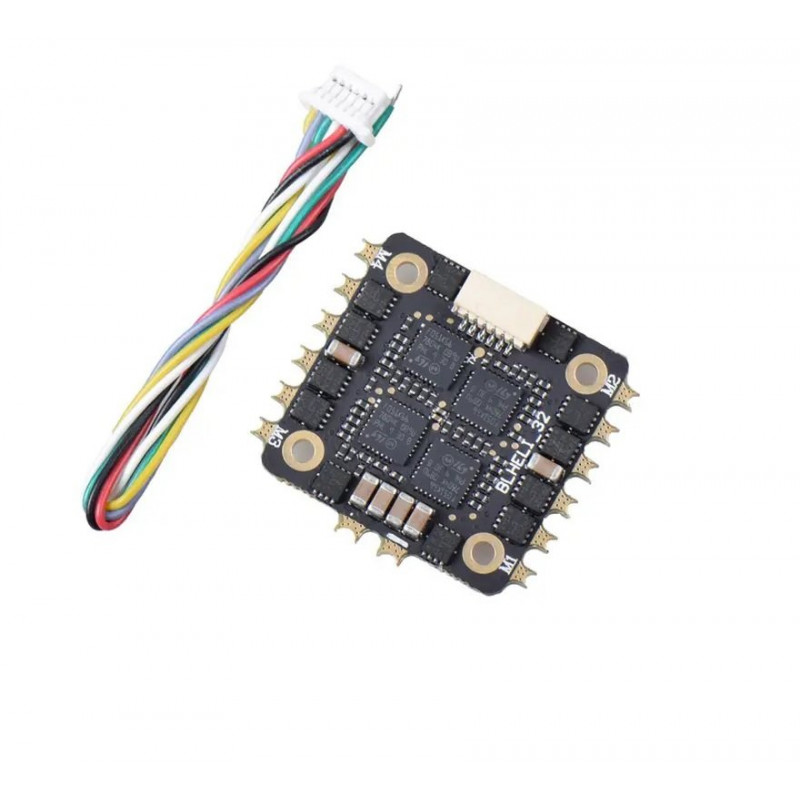

1 x 25A Blheli_32 Brushless ESC
1 x 6P*1.0MM cable



Specifications:

Item name

25A Blheli_32 Brushless ESC

Power supply

2-4S(7.4-16.8V)

Board size

29*31MM

Continuous current

25A

Burst current

30A(5S)

Processor

32-bit ARM architecture MCU STM32F051 48MHZ

Firmware

BLHELI 32 ESC

Install hole

20*20MM

Hole diameter

2MM

Length (mm)

31

Width (mm)

29

Height (mm)

6.4

Weight (gm)

5


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3184.82 (Inclusive of all Taxes)
