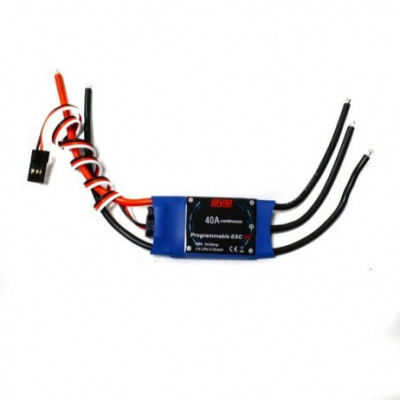

This DYS 40A Multi-Copter Brushless Speed Controller Programmable ESC with 5V/3A BEC. The ESC power input use is extremely low output resistance greatly enhances the power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability. Using Simon Ks a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control more precise.
Features:
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board), super current endurance.
- The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery.
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
- Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon Ks a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control more precise.
Package Includes:
1 x DYS 40A Multi-Copter Brushless Speed Controller Programmable ESC with 5V/3A BEC
Specifications:
Model | DYS 40A ESC V2 |
BEC | Yes (5V/3A) |
Operating Voltage (VDC) | DC 6-22.2V(2-4S Lixx) |
Continuous Current (A) | 40 |
Color | Blue |
Dimensions (mm) LxWxH | 55 x 26 x 13 |
Weight (gm) | 39 |
Note: Actual product may vary from the product images in terms of colour
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 1757.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DYS 40A Multi-Copter Brushless Speed Controller Programmable ESC with 5V/3A BEC (Original)
- Product Code: EC-6079
- Availability: Out Of Stock
-
Rs.1489.00
- (Excluding 18% GST)
