DYS 60A Brushless Speed Controller ARIA 4-in-1 ESC is a completely digital signal, Oneshot and multishot are analogue signals. During the use of analogue signals, ESC hardware and software will generate some noise, which is clutter. If there are too many clutter, you need to add a filter capacitor or resistor to hardware filtering. (Off-topic, those who need to remove the capacitor is probably the case) and it is a digital signal, do not need to calibrate the ESC, no filtering is required during the transmission!
It is designed for multi-axis UAV transition machines. Accurate speed control, accurate signal acquisition.
ESC comes with a current sensing module that can cooperate with flight control to detect current value. ESC adopts an adaptive control system and is compatible with most motors on the market. The PCB board adopts thickened 6-layer treatment, the internal resistance heat generation is small, the layout of the components is optimized, and the installation is more convenient.
Features:
- Strong anti-interference ability
- PCB adopts 6-layer, low inner resistance
- Built-in Current detection module, which can cooperate with the flight control to detect the current value
- The Dshot series calls the 150/300/600/1200
- Support 2S-6S, 4PWM input without BEC
- Support for Oneshot125/Oneshot42 / Multshot /Dshot BL32.7 firmware
- You can upgrade the firmware online or change the configuration parameters via the signal line.
- ESC comes with a current sensing module that can cooperate with flight control to detect current value.
- ESC adopts an adaptive control system and is compatible with most motors on the market.

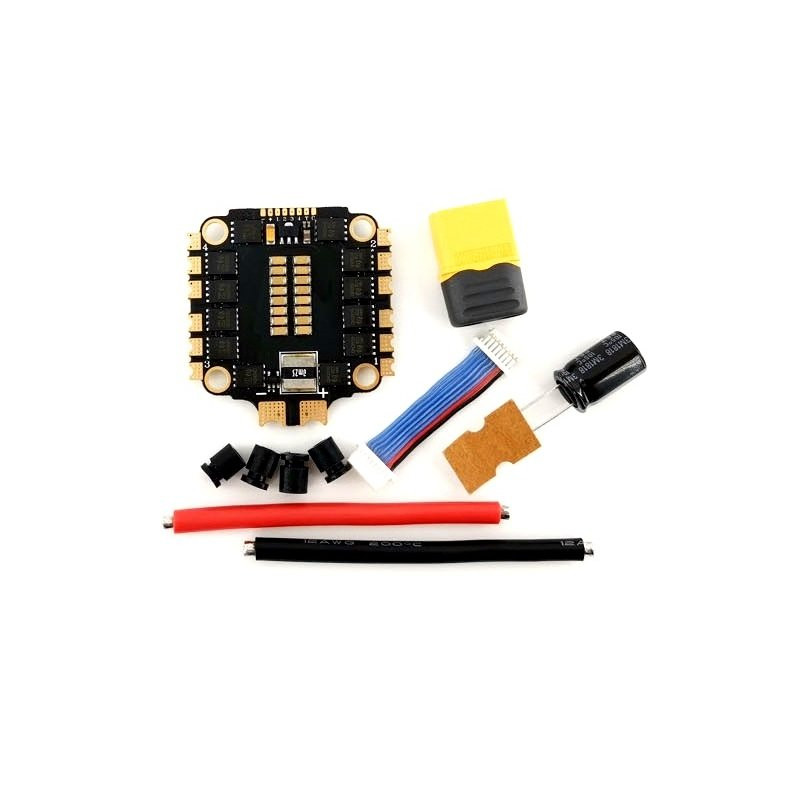

Package Includes:
1 x DYS 60A ARIA 4-in-1 ESC
2 x Wire 12AWG 100mm (Red + Black)
1 x 470F 35v Capacitor

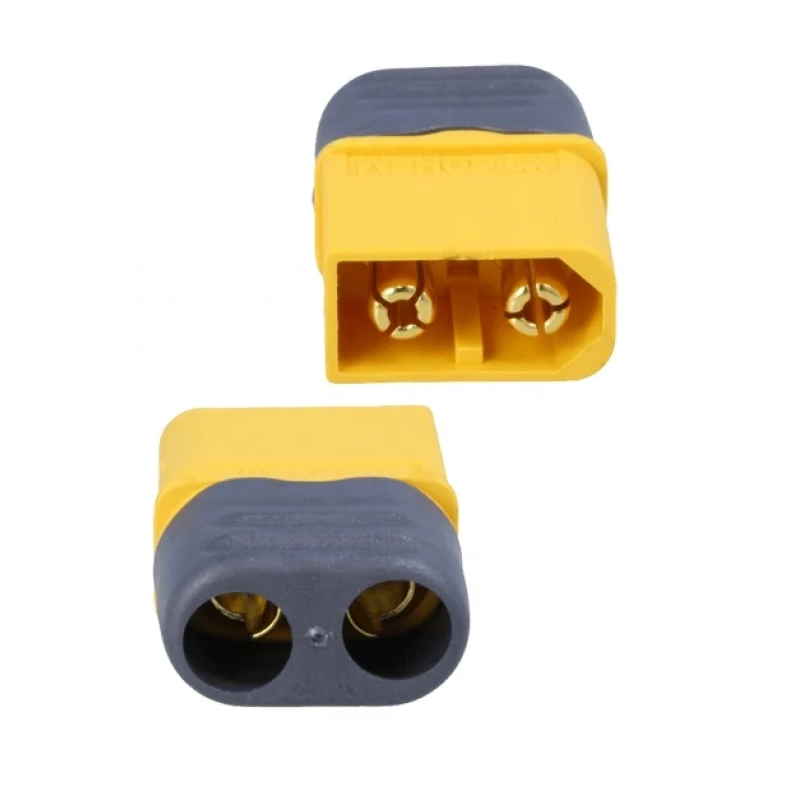

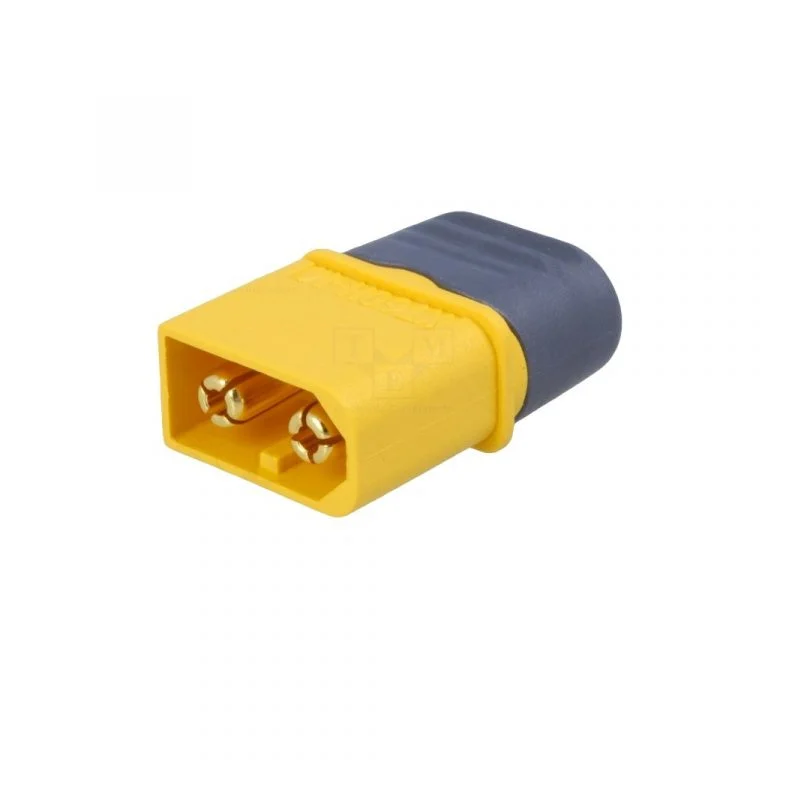

1 xXT60H Connector with Housing- Male
1 x Connecting Cable
Specifications:
| Model | DYS 60A ARIA 4-in-1 ESC |
| Firmware | BL32.7 |
| Supports Software | DShot/OneShot/MultShot |
| Operating Voltage (VDC) | 2-6s |
| Continuous Current (A) | 60 |
| BEC | NO |
| Colour | Black |
| Mounting Holes Diameter (mm) | M4 |
| Board Mounting Dimensions | 30.5 x 30.5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 11326.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DYS 60A Brushless Speed Controller ARIA 4-in-1 ESC Original
- Product Code: EC-6081
- Availability: 2
-
Rs.9499.00
- (Excluding 18% GST)
