Take advantage of the latest DYS XSD12A ESC Solder Version BLHeli_S development with these DShot capable ESCs. The DYS XSD series speed controllers (ESC) have been designed for high-speed motors, which make them ideal for racing drones. The ESCs utilizes a high-performance Silabs EFM8BB21 microprocessor for smooth response and high-resolution throttle steps. They also come with BLHeliS firmware pre-flashed and support DShot300 or DShot600. Firmware can be upgraded by signal wire using a USB Linker.
Features:
- Utilizes high-performance EFM8BB21 50MHz MCU
- 12FETDesign
- High-current burst rating
- High-Resolution Throttle steps
- Supports: BLheli_S & Dshot600, Dshot300 faster than Oneshot
- Dshot ESCsdont require an ESC calibration
- Firmware upgradable via signal wire (works with USB Linker for XM series)
- Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)
Package Includes:
1 x DYS XSD12A ESC Solder Version
Specifications:
| Model | XSD12A |
| Supports Software | DShot300/DShot600 |
| Firmware | BLheli_S |
| BEC | NO |
| MCU | Silabs EFM8BB21 |
| Continuous Current (A) | 12 |
| Operating Voltage (VDC) | 2-4s LiPo |
| Color | Black |
| Dimensions (mm) LxWxH | 15.4 x 11.5 x 4 |
| Weight (gm) | 1.2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 855.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

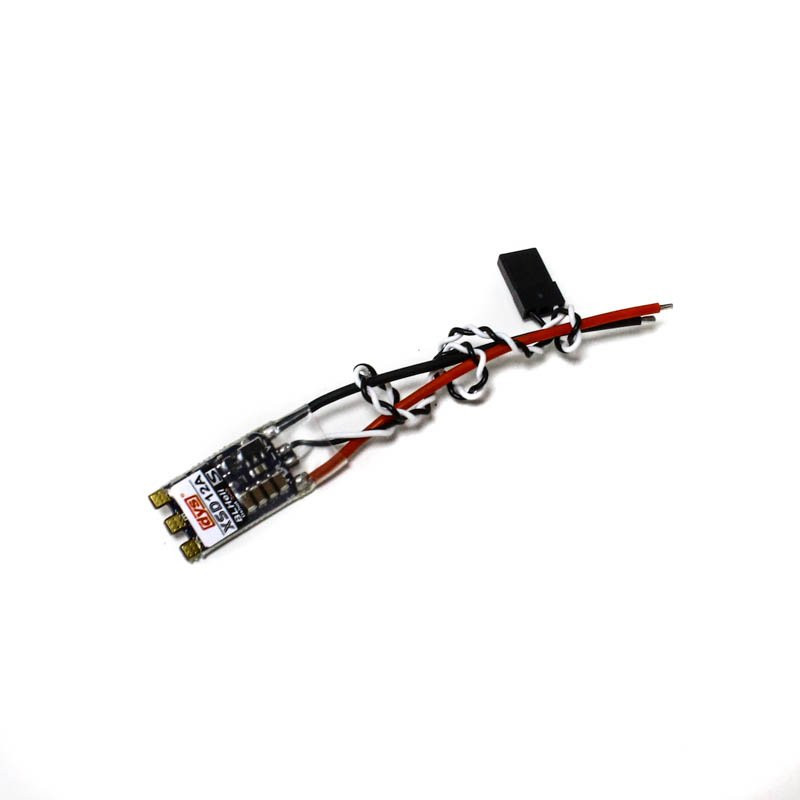

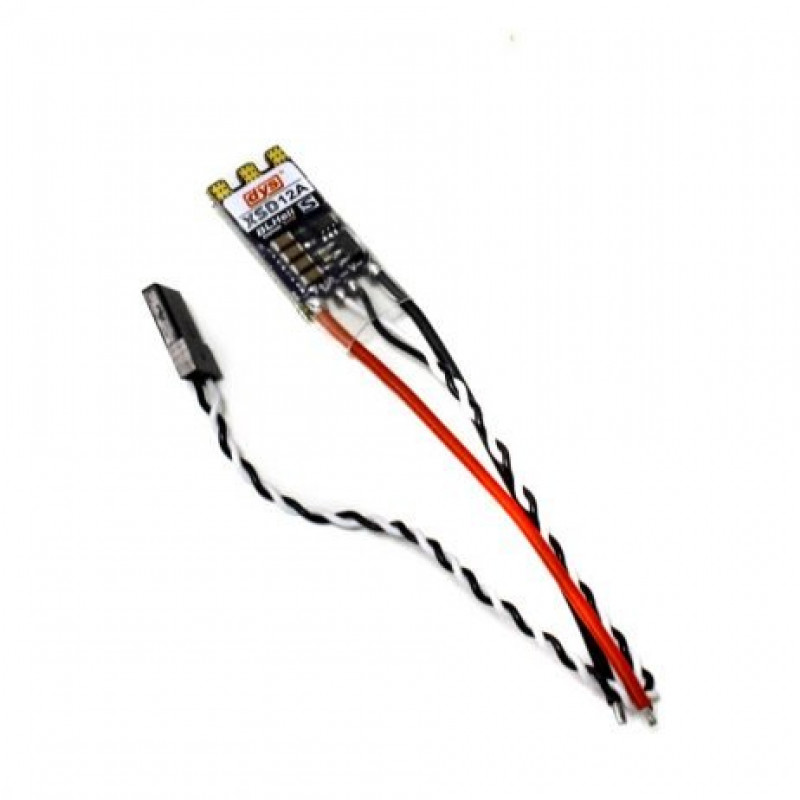

DYS XSD12A ESC Solder Version (Original)
- Product Code: EC-6082
- Availability: 13
-
Rs.895.00
- (Excluding 18% GST)
