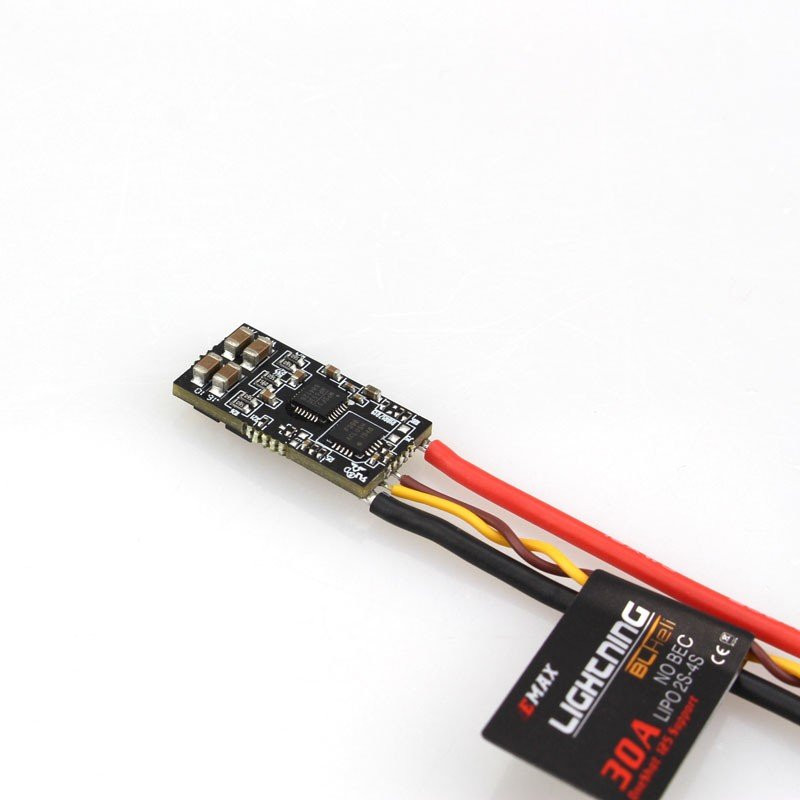

Emax Lightning 30A Brushless ESC (Original) Controller is exactly what you are looking for in a lightweight, super powerful speed controller. The first BLHeli ESC with Synchronous Rectification hardware design in the market

This ESC Utilizes high-performance F396 MCU driver chips. It Supports active braking and FW upgradable via a signal wire making it fast and responsive to throttle movements.

The EMAX ESC is already well known and respected for its high thrust output and reliability. These top of the range Emax Lightning ESC is a Smallest F396 powered 30A ESC in itsclass and the pinnacle of ESC performance today. BLHeli_S delivers a throttle response that is smooth as silk. The main factor contributing to this is that it uses hardware to generate motor PWM.


Features:

  1. Utilizes high-performance F396 MCU
  2. Lightweight: 5.5g including power wires and signal wires
  3. Small Footprint: 24.5x12.5x5.0 (mm)
  4. Supports active braking
  5. FW upgradable via a signal wire
  6. Anti-counterfeit code of authenticity
  7. Supports up to 4S High Voltage (4.35v max per cell)
  8. Smallest F396 powered 30A ESC in itsclass
  9. Oneshot Enabled / Multishot Ready
  10. High-current burst rating

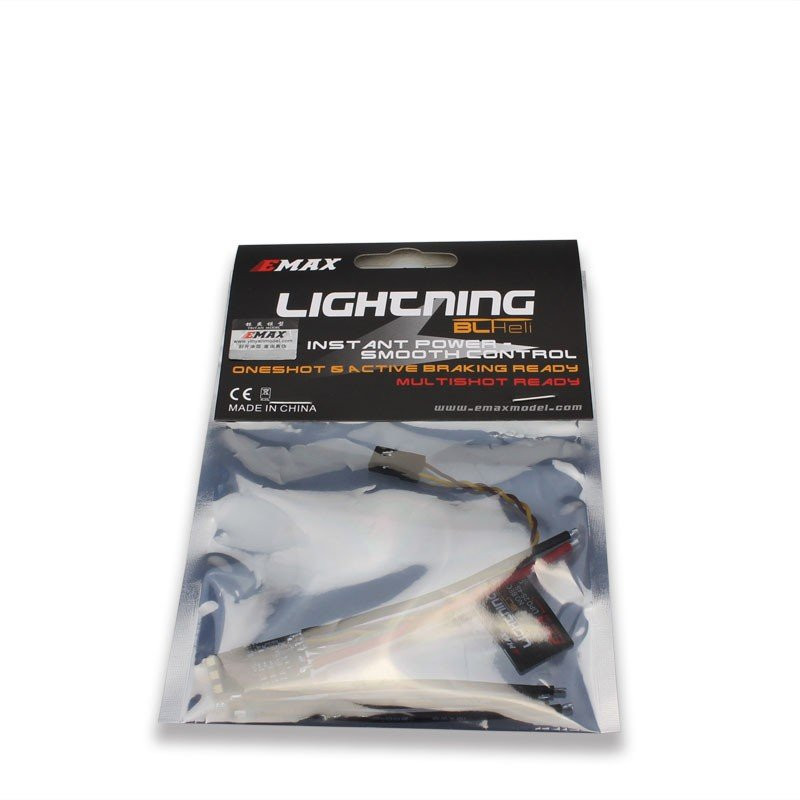

Package Includes:

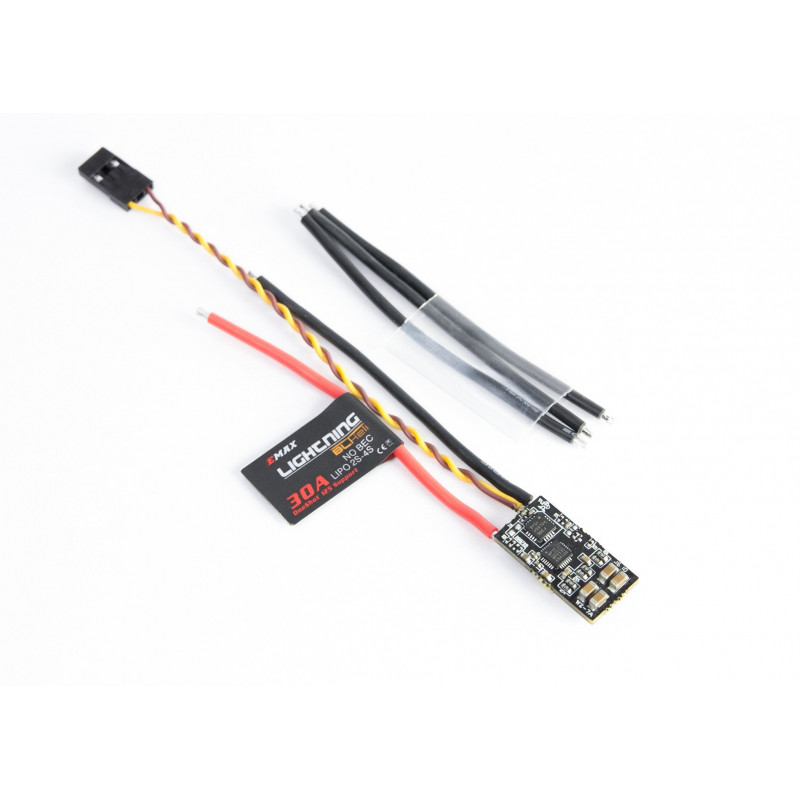

1 xEmax Lightning 30A Brushless ESC (Original)



Specifications:

Model

Emax Lightning 30A

MCU

F396

Continuous Current

30 A

Burst Current (A)

40

Suitable Lipo Batteries

2 ~ 4S

Color

Black

BEC

NO

Dimensions (mm) LxWxH

24.5 x 12.5 x 5.0

Weight (gm)

6

Application

BLDC Motors, Multirotors, Rc Planes etc.


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1079.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Emax Lightning 30A Brushless ESC (Original)

  • Product Code: EC-6090
  • Availability: 19
  • Rs.1549.00
  • (Excluding 18% GST)
