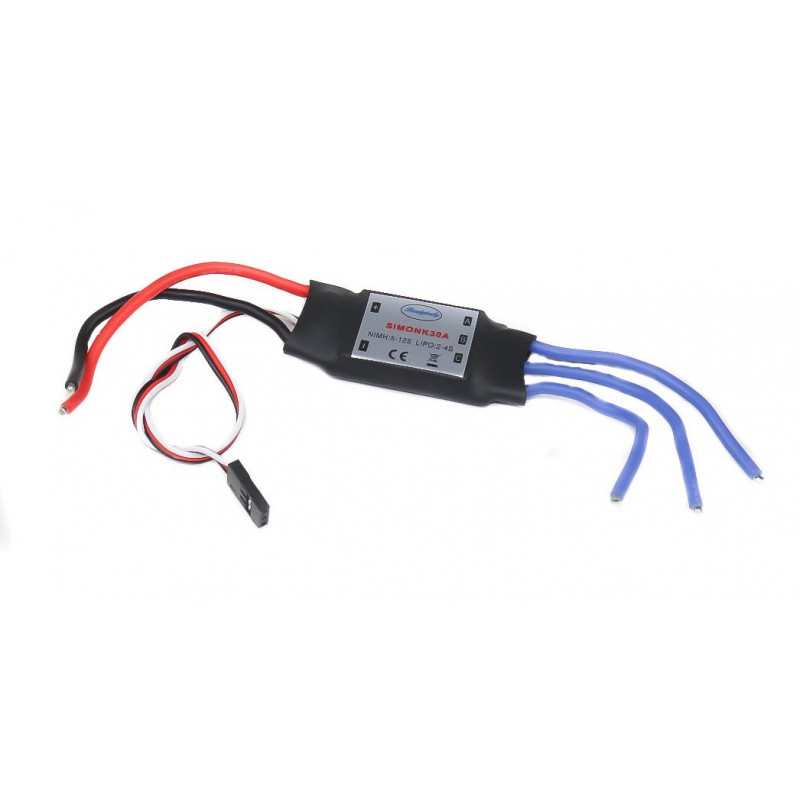

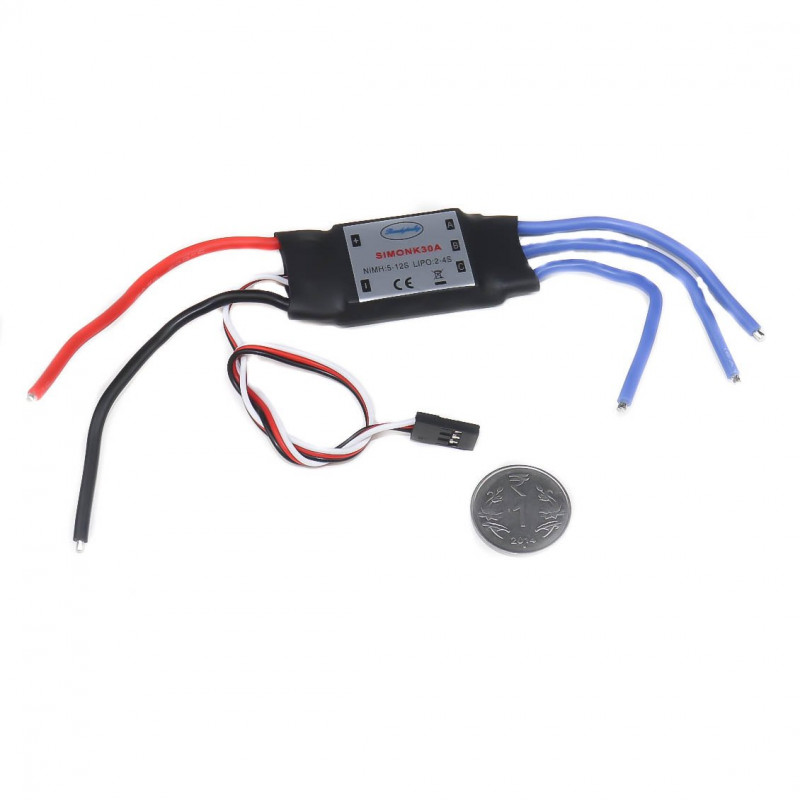

SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane.
SimonK firmware is firmware specifically for ESCs (electronic speed controllers) developed bySimon Kirby. This firmware has been found to offer faster response compared to normal ESC firmware, easy handling, and good compatibility, all of which greatly enhance multirotor performance.
This ESC comes with the tinned ends.
Warning:In case the BLDC ESC is connected directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.
Features:
- Highest efficiency 100% N-FET design.
- Highest accuracy with Crystal Oscillator (Temperature wont affect the PWM operating range like other cheap ESCs).
- No low voltage cutoff, because of any cutoff in a multirotor = crash.
- No over temp cut off, because of any cutoff in a multirotor = crash.
- Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
- 16KHz motor frequency, giving the fastest response of the motor, and quietest operation as well (no 8KHz squeal).
- Super simple, foolproof operation! Nothing to program other than the throttle range.
Applications:
- 450 F650 X525 quadcopters.
- Various other Airplanes, High-speed RC Cars, etc.
Package Includes:
1 x SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane Good Quality.
Specifications:
| Model | SimonK 30A Brushless Speed Controller ESC |
| Constant Current (A) | 30 |
| Burst Current (A) | 35 |
| BEC | Yes (5V/3A) |
| Suitable Lipo Batteries | Li-ion/Li-poly:2-4S or Ni-MH/Ni-Cd:5-12S |
| Color | Black |
| Application | BLDC Motors, Multirotors, Rc Planes etc. |
| Voltage range | 4 V-16.8V |
| Length (mm) | 32 |
| Width (mm) | 24 |
| Height (mm) | 7 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 624.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane - Good Quality
- Product Code: EC-6103
- Availability: 23
-
Rs.529.00
- (Excluding 18% GST)
