The Mamba F405 Stack is introduced as more and more requests for a budget stack. With 4 x 35A Esc's built into the stack, you now have plenty of room for spikes. If you are running 4S Lipo to power your quad there is absolutely no advantage in running 40A Esc.
You will now be able to complete your build faster than usual.
Features:
- BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
- Supports 2-6S Lipo input
- 4PWM input
- Built-in Current sensor
- Only 36x36mm, mount holes 30.530.5mm M3
- No External capacitors needed
- Dshot600 ready(Default) Support PWM/ONESHOT/MULTISHOT/DSHOTq

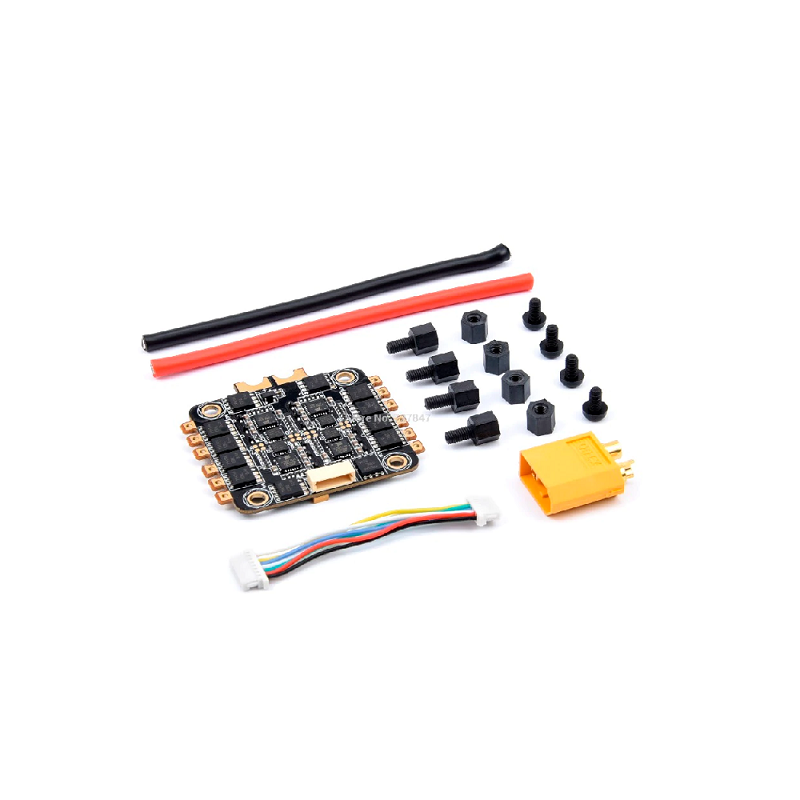

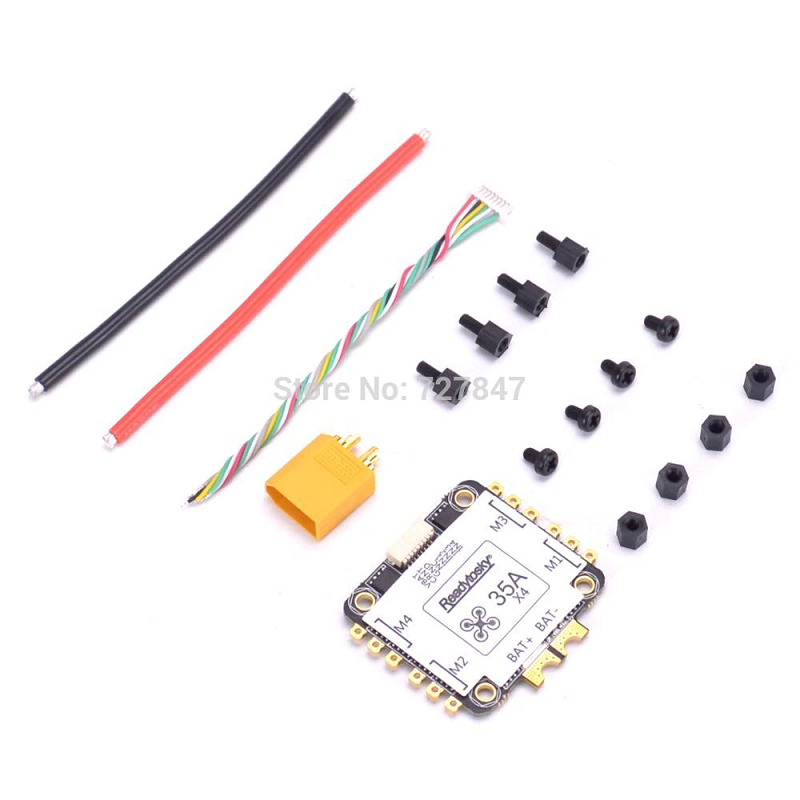

Package Includes:
1 x Mamba F405 Flight Controller & REV35 35A BLheli_S 2-6S 4 In 1 ESC
Specifications :-
| Input Power | 12.6-25V (3-6S) |
| BEC | Yes (5V/1.5A) |
| MCU | STM32F405 |
| Gyro | MPU6000 |
| Flash Memory | 16 MB |
| Continuous Current (A) | 35 |
| Peak Current (A) | 40 |
| Length (mm) | 45 |
| Width (mm) | 44 |
| Height (mm) | 25 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 4897 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mamba F405 Flight Controller & REV35 35A BLheli_S 2-6S 4 In 1 ESC
- Product Code: EC-5868
- Availability: Out Of Stock
-
Rs.4860.00
- (Excluding 18% GST)
