The Micro Minim OSD is the next evolution of minimization. The Minimosd was engineered to bring users a very powerful OSD at an unreal cost. From the manufacturers of the WitesSpy KV Team OSD and all your requests have now evolved into the Micro MinimOSD! After all the community mods, they re-engineered the OSD so every useable pin was easily available without surface soldering.
The only difference is that It does NOT have the DC/DC converter, this means less heat when powered off a Flight controller. The Micro Minim OSD is the same as the older MinimOSD hardware but has been modified to take advantage of custom firmware options.
You can choose firmware that is MAVLink compatible for ArduCopter, or MultiWii Serial compatible for MultiWii and Baseflight/Cleanflight control boards. You can connect two batteries up to 4S so you can see the main flight battery voltage. the second port will allow your FPV battery voltage on the display as well. we also did not forget about the pin for analog or digital PWM RSSI and a connection where you can attach a current sensor.

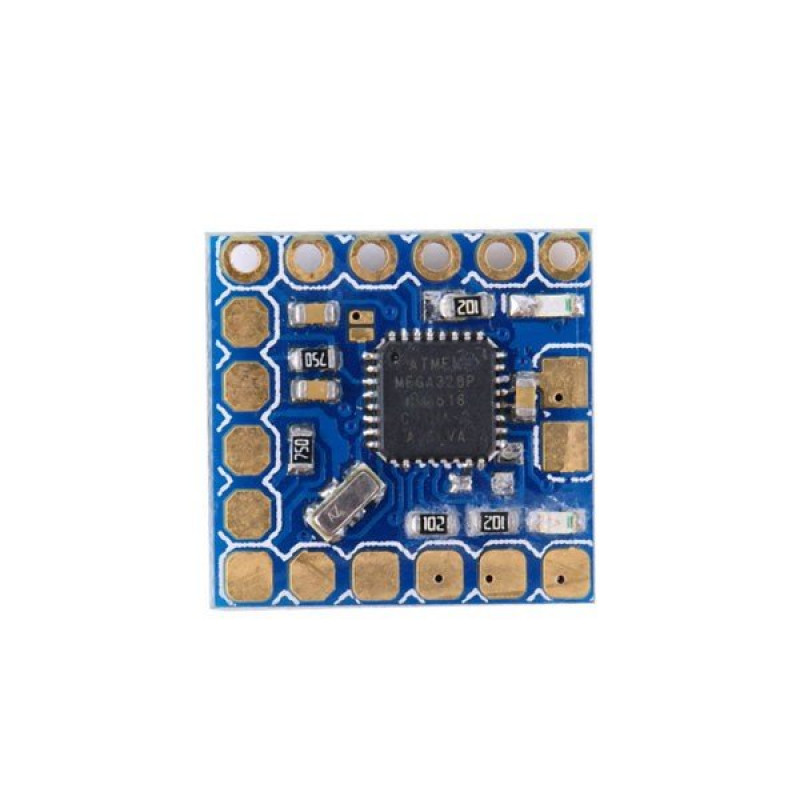

Its tailored for use with ArduPilot Mega and the MAVlink protocol and designed to be as compact as possible. Its main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader and a MAX7456 monochrome on-screen display. Programming is done through an FTDI card.
Features:
- ATmega328P with Arduino bootloader.
- MAX7456 monochrome on-screen display.
- Two independent power sections with a two LED indicator on each.
- Solder jumpers for combining the power sections.
- Solder jumper for PAL video option.
- Exposed test points for HSYNC and LOS All the same features as the original, but less the half the size.
- NO Onboard DC/DC converter hence less heating.

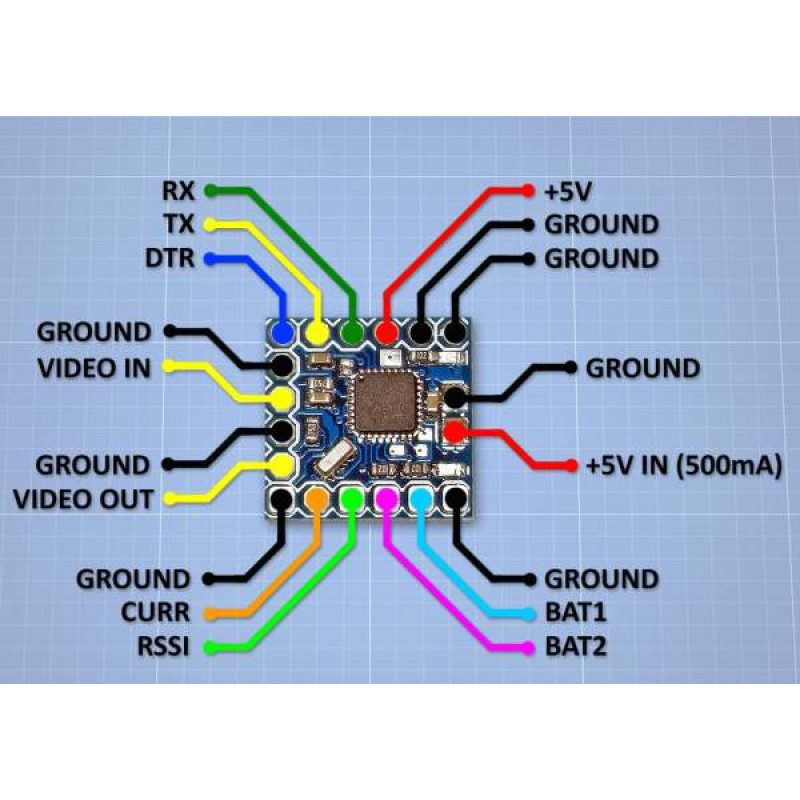

- FTDI cable compatible pinout.
- The standard 6-pin ISP header.
- Modifications for direct connection of two batteries (up to 4S).
- Pad for an Analog or Digital PWM RSSI signal.
- Pad for the connection of a Current Sensor.
- Standalone, or with APM/ Flip / Flip32+ flight controllers.
- This hardware takes the hardware mods for this firmware and builds them into an RTF solution.

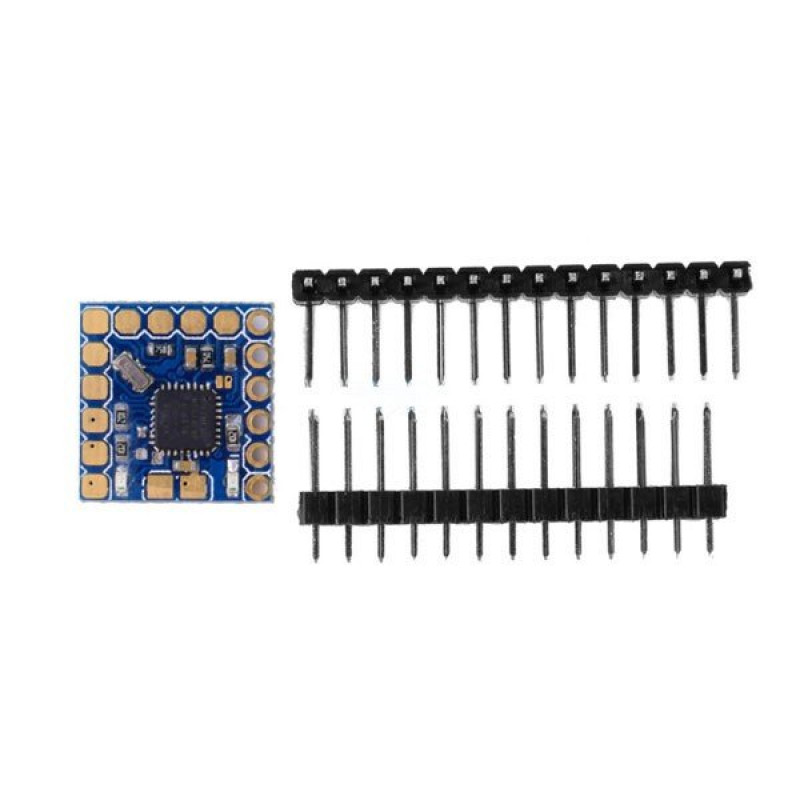

Package Included:
1 x Micro Minim OSD For Racing F3 Naze32 Flight Controller RC Drone.
1 x Straight berg connector (w/o soldered).
1x 90 berg connector (w/o soldered).
Specifications :-
| Input Supply voltage (V) | 5 |
| Current Consumption (mA) | 500 |
| Monochrome OSD | MAX7456 |
| Operating Temperature (C) | -40 ~ +85 |
| Length (mm) | 16 |
| Width (mm) | 15.6 |
| Height (mm) | 4 |
| Weight (gm) | 4 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 749.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Micro Minim OSD For Racing F3 Naze32 Flight Controller RC Drone
- Product Code: EC-5870
- Availability: Out Of Stock
-
Rs.636.00
- (Excluding 18% GST)
