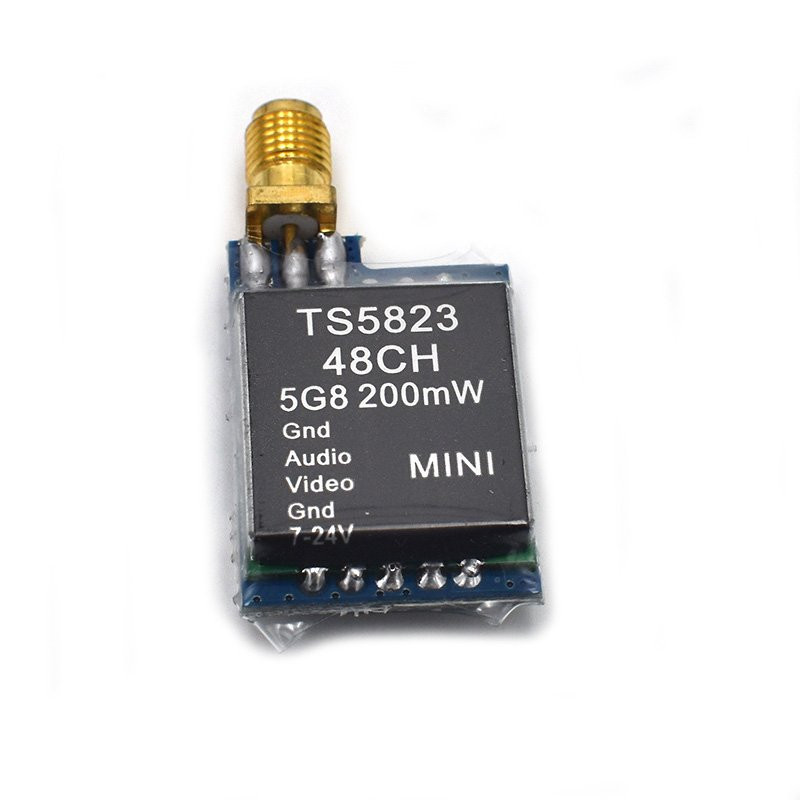

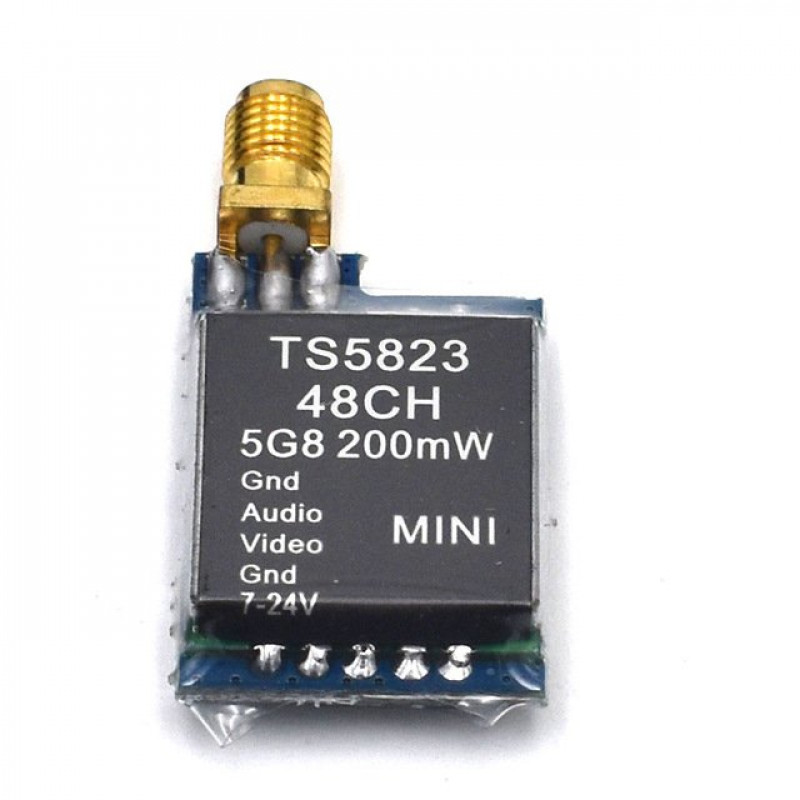

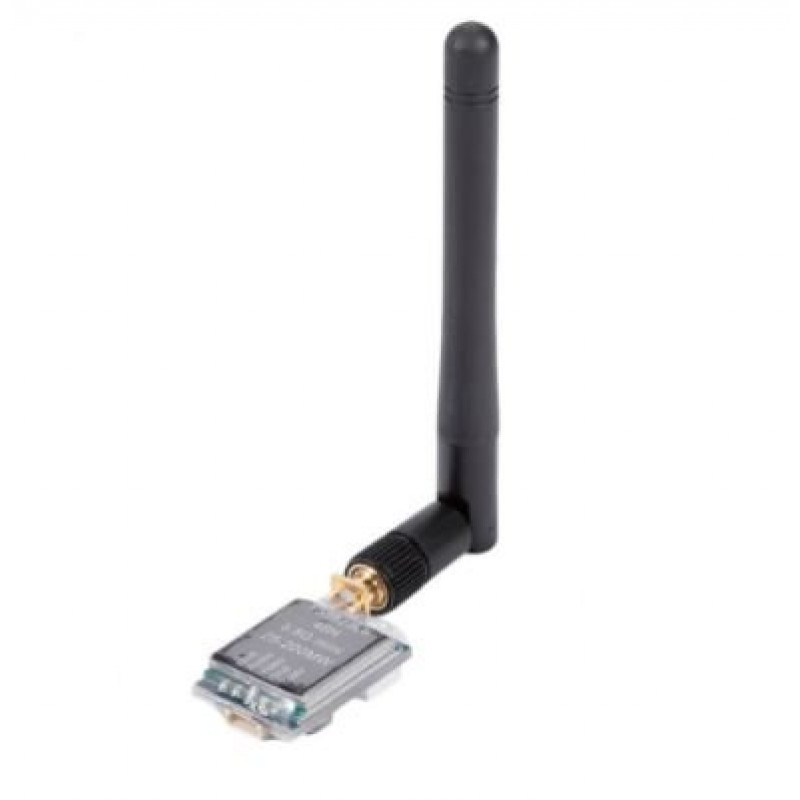

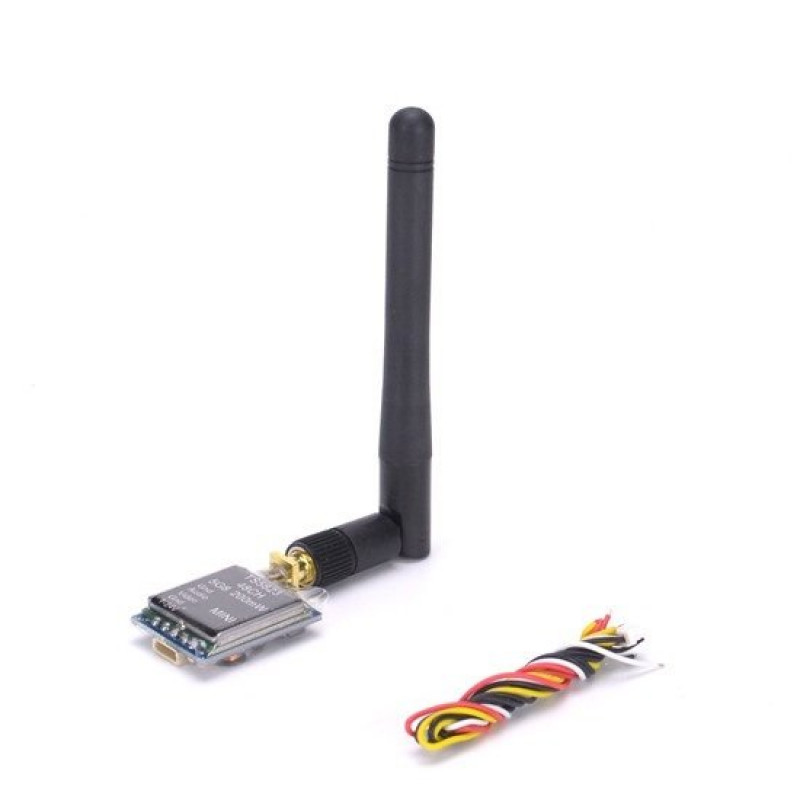

TS5823 200mw 48CH Mini Transmitter packs 200mW of ultra-clean 5.8GHz power in a micro-sized video/audio transmitter! A must-have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 48 channels and only weighs 10g.
Its perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quantum Nova, DJI Phantom, QR X350 and more!
Features:
- Micro-sized and lightweight.
- Perfect for use with small models
- It has transmitter frequency of 5645-5945MHz with 200mW power output
- It features transmitting distance of 1500m in open area.
Package includes:

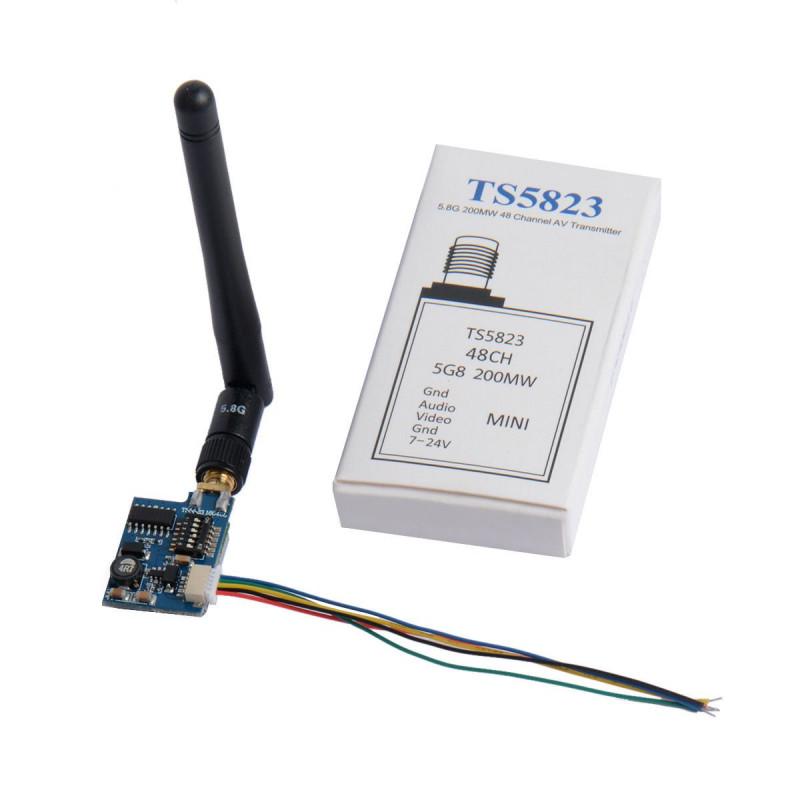

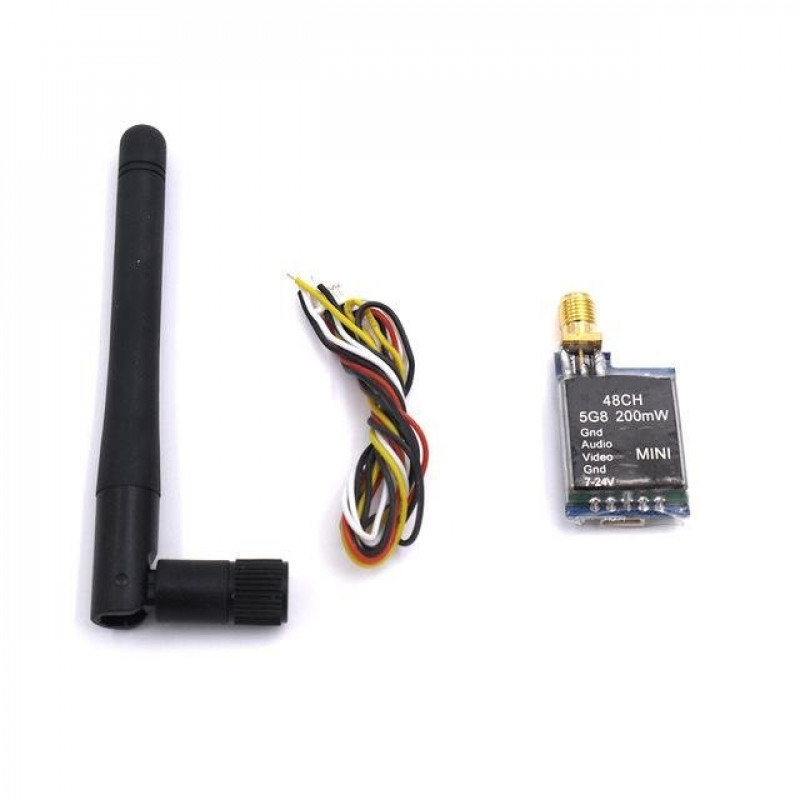

1 x TS5823 Mini 48CH 200MW Transmitter module
1 x Threaded Detachable Antenna
1 x AV Cable
Specifications:

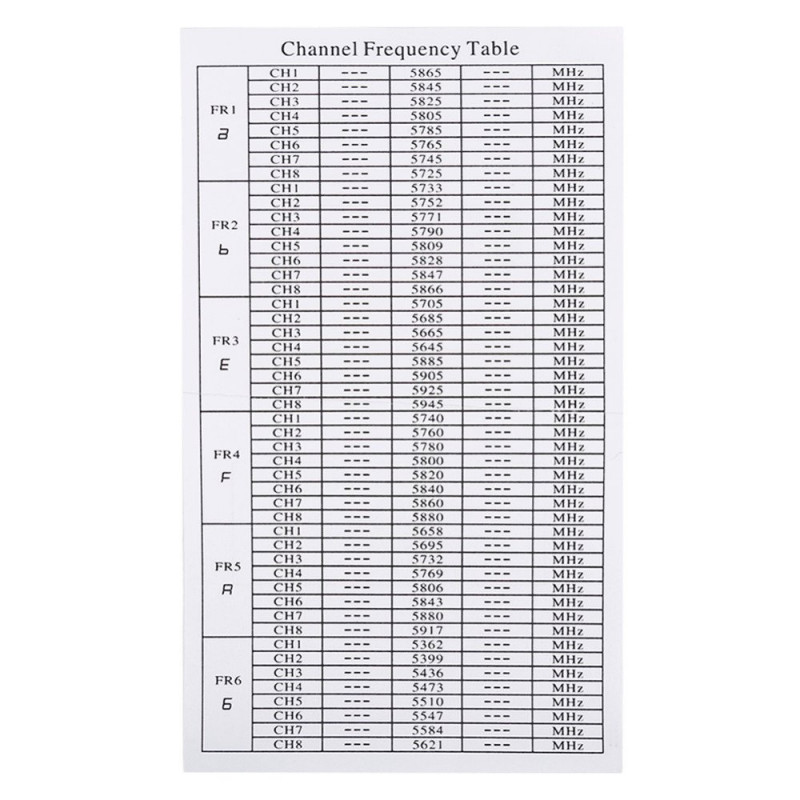

| No. of Channels | 48 |
| Rated Power (W) | 200 mW |
| Frequency(GHz) | 5.6 to 5.9 |
| Operating Current (A) | 0.19 |
| Voltage(V) | 7 to 24 |
| Antenna Type | RP-SMA |
| Video Bandwidth | 8M |
| Audio Bandwidth | 6.5M |
| Operating Temperature (C) | -10 to 85 |
| Module Size (LxWxH) mm | 40 x 20 x 8 |
| Antenna Diameter(mm) | 8 |
| Antenna Length(mm) | 106 |
| Weight(gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TS5823 200mw 48CH Mini Transmitter
- Product Code: EC-6135
- Availability: Out Of Stock
-
Rs.1450.22
