The all-new TS5828L Mini 48CH 600MW Transmitter packs a whopping 600mW of ultra-clean 5.8GHz power! A must for those looking for longer range and locked in the video.
The TS5828L is transmitting a full range of 48 channels and uses an easy to use interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 15grams, its Perfect for a wide range of aircraft!
The TS5828L packs 600mw of 5.8GHz power and 48 channels into a micro-sized audio/video transmitter. It weighs just 15g completed with the wire harness and stock antenna, making it perfect for a wide range of aircraft and particularly for smaller 150-250 sized multi-rotors such as the250QAV.
Features:
- Compact and lightweight
- Perfect for use with small models
- Covers A, B, C, D, H, L bands
- 48 Channels
- 600mw RF output
- Wide input voltage range
- Long-range:1~2km with the stock antenna
- Stable signal

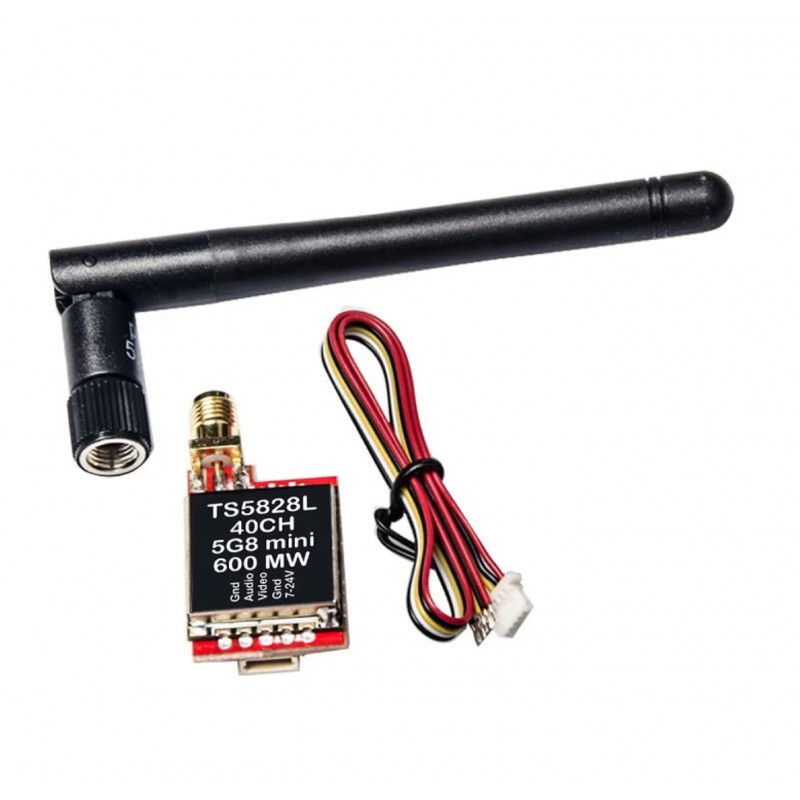

Package Includes:
1 xTS5828L Mini 48CH 600MW Transmitter module
1 x Threaded Detachable Antenna
1 x AV Cable
Specifications:
| Item Name | FPV Transmitter |
| Channel | 48CH |
| Frequency(GHz) | 5.6G-5.9G |
| Current(mA) | 190mA |
| Temperature() | -10 to 85 |
| Video Bandwidth(MHz) | 8 |
| Audio Bandwidth(MHz) | 6.5 |

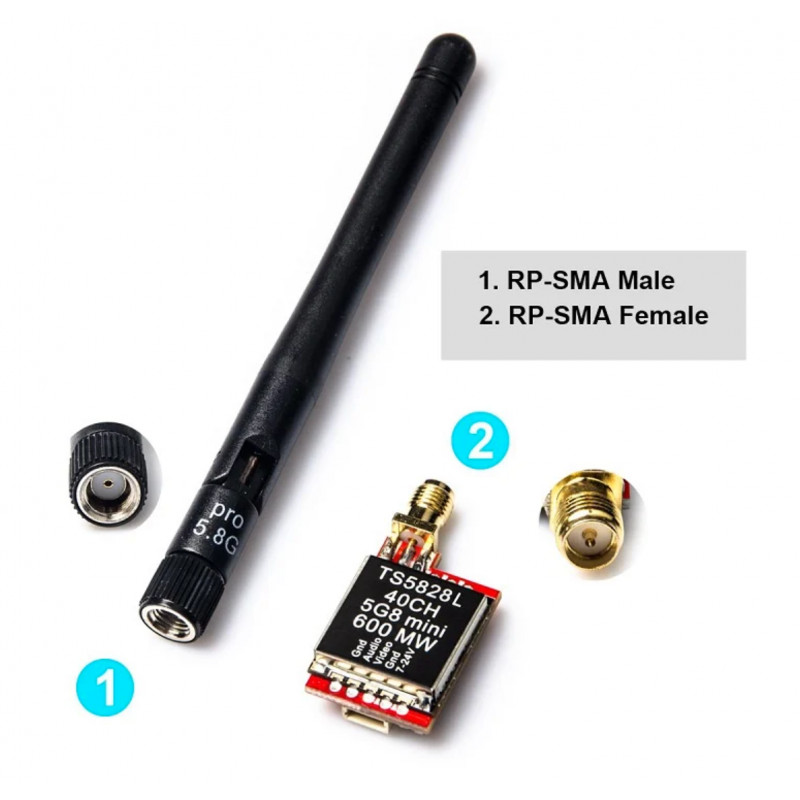

| Antenna | RP-SMA |
| Antenna Length(mm) | 106 |
| Antenna Diameter(mm) | 8 |
| Weight(g) | 16 |

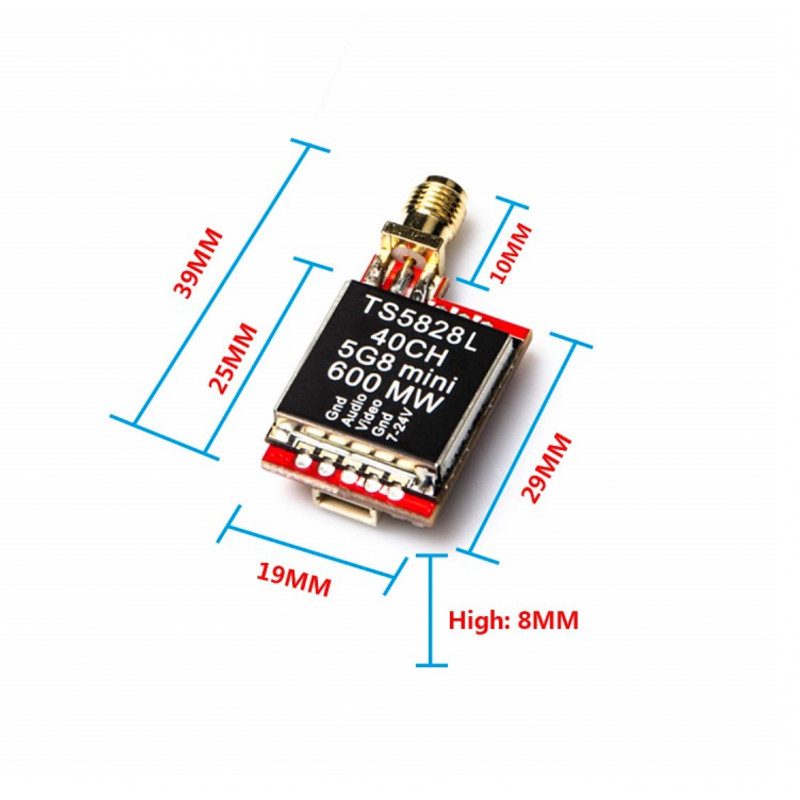

| Length (mm) | 38 |
| Width (mm) | 18 |
| Height (mm) | 8 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1768.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TS5828L 5.8G 600MW 40CH Transmitter with Antenna
- Product Code: EC-6137
- Availability: Out Of Stock
-
Rs.1499.00
- (Excluding 18% GST)
