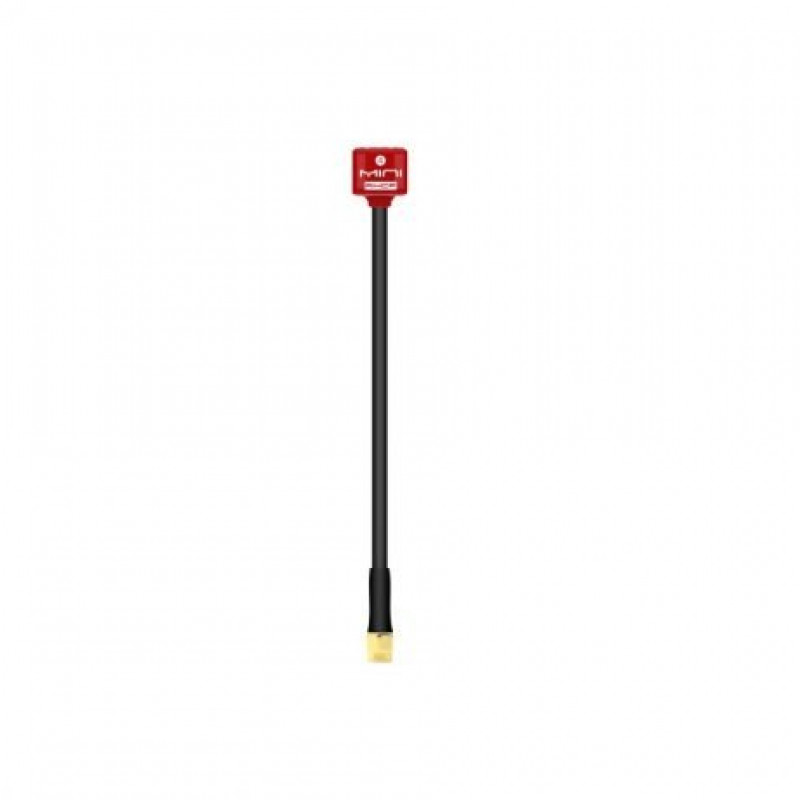

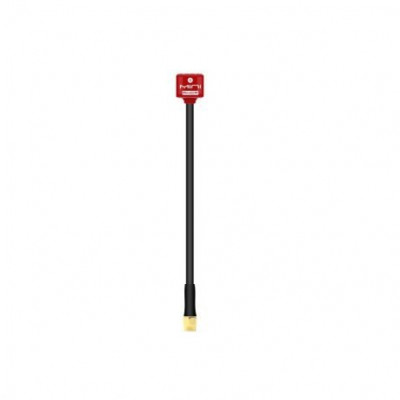

If you have been looking for a small-size high-performance Antenna then your search ends here. Get the 5.8G 2.8dBi RHCP RP-SMA Male Lollipop Antenna(Long) at the best price.
The Antenna has RP-SMA Male Plug Connector for RC FPV Racing Drone Quadcopter. The Polarization is RHCP(Right-hand Circular Polarization). The 5.8G Lollipop Antenna is an Omni-directional circularly polarized 5.8GHz FPV antenna with great performance and is small in size. The 5.8G Lollipop Antenna has an excellent omnidirectional radiation pattern along with a good axial ratio, giving you solid all-around coverage.The Antenna has a smoother radiation pattern and a significantly better axial ratio than most other antennas.This antennas simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance.
Note:The color deviation might differ due to different monitor settings.
Features:
- Omnidirectional circularly polarized antenna
- Polarization RHCP
- Center frequency: 5.8 GHz
- Every low standing wave smooth omnidirectional radiation receiving mode
Package Includes:
1 x 5.8G 2.8dBi RHCP RP-SMA Lollipop Antenna(Long)
Specifications :-
| Connector Type | RP-SMA Male Plug Connector |
| Polarization | RHCP(Right Hand Circular Polarization) |
| Frequency(GHz) | 5.8 |
| Efficiency | >50% |
| Cable Length (cm) | 120 |
| Operating Temperature Range (C) | -40 to 85 |
| Length (mm) | 15 |
| Width (mm) | 18 |
| Height (mm) | 150 |
| Weight (gm) | 11 |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 16 7 1 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 529.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5.8G 2.8dBi RHCP RP-SMA Lollipop Antenna(Long)
- Product Code: EC-7570
- Availability: 2
-
Rs.517.00
- (Excluding 18% GST)
