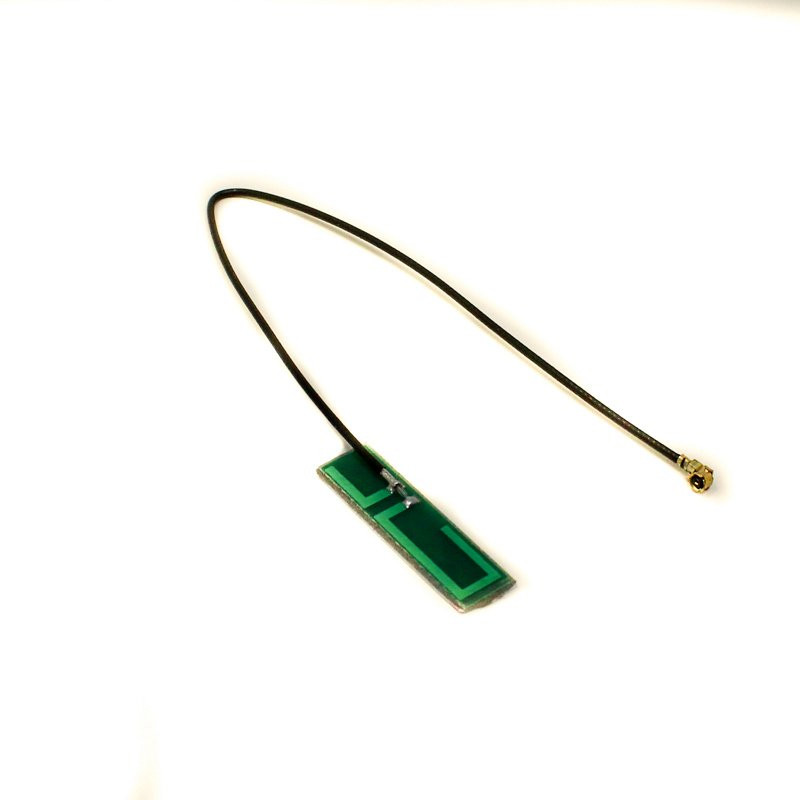

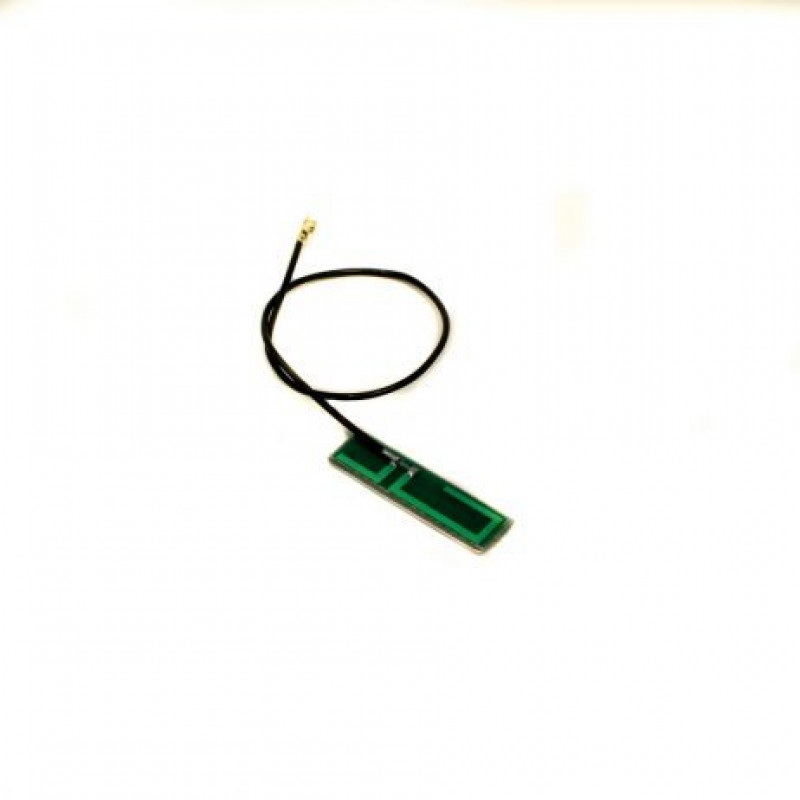

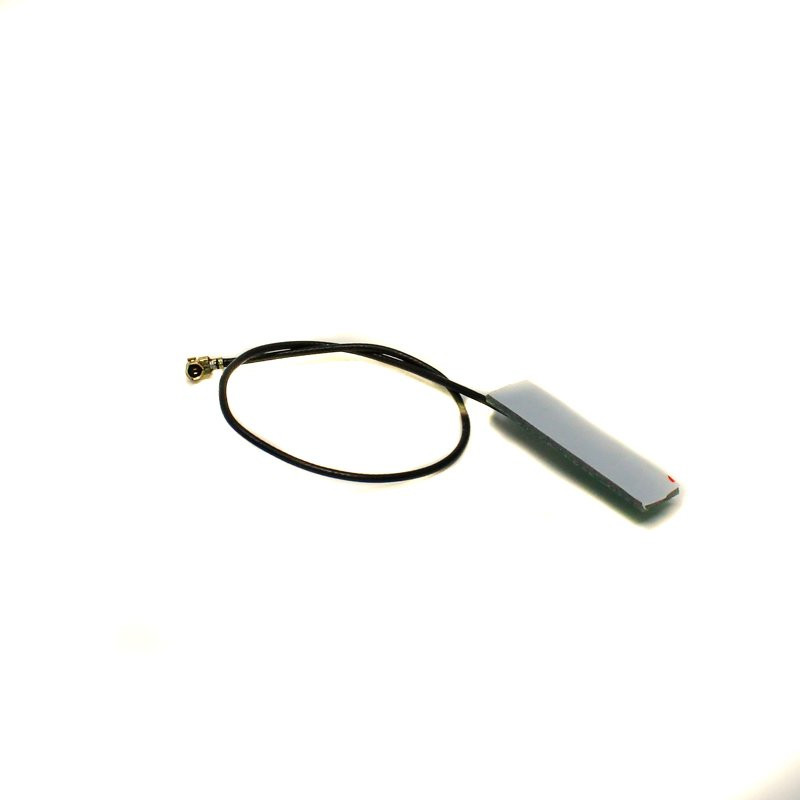

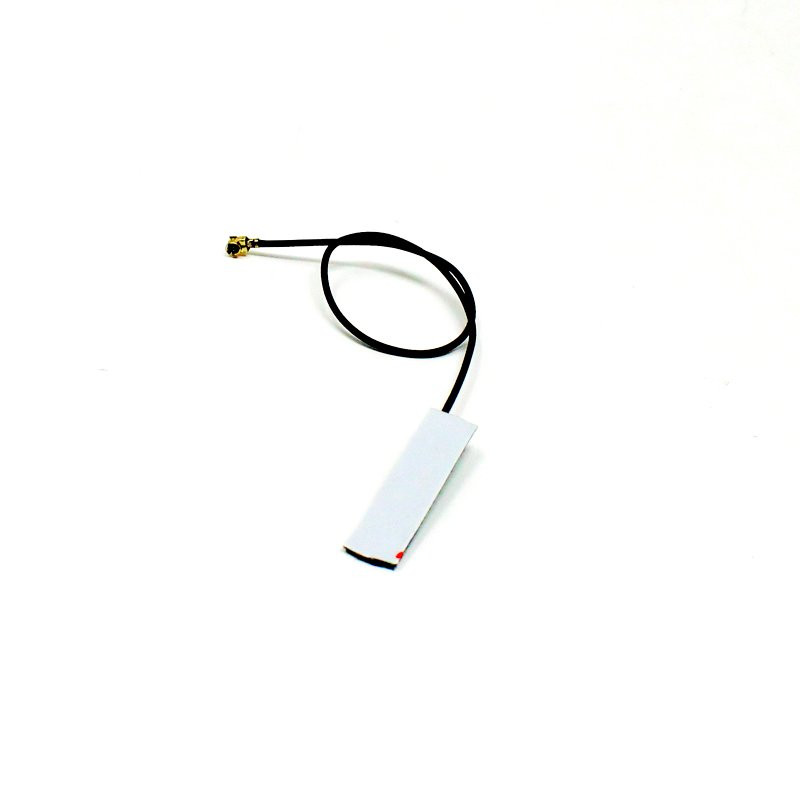

This is PCB Antenna having a frequency of 24002483 MHz and 1.8 dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.
Application: Wi-fi, Bluetooth, Zig-bee, ISM.
Features:
- Compact Size
- High quality
- Low cost
- 3M high-quality adhesive
- Masking for corrosion-free
Package Includes:
1 x Chip Antenna 2400MHz
Specifications :-
| Model | LWC-2400-CHIP-03 (V1.0) |
| Frequency Range | 2400 ~ 2483 MHz |
| Gain | ~1.8 dBi |
| Impedance () | 50 |
| VSWR | < 2.0 |
| Polarization | Linear |
| Power Handling (W) | 10 |
| HPBW | H: 3600 / V: 30 |
| Cable | 0.81 or 1.13mm Mini Coaxial |
| Connector | MHF1 |
| Operating Temperature (C) | -30 to 60 |
| Humidity | 5 95% |
| Length (mm) | 27 |
| Width (mm) | 7 |
| Height (mm) | 2 |
| Weight (gm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
