This is GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna having Frequency of 698 960 MHz & 1710 2690 MHz and 6/ 7 dBi Gain. This antenna is supported to GSM FCT of Micromax, and other GSM Module/Modems. Magnetic mount antennas are commonly used for car and truck applications. The antennas magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.
Application: GPRS, GSM, 3G,4G, ISM
Features:
- Magnetic base indoor antenna.
- High quality
- low cost.
- 20 x 2 mm Neodymium powerful magnets.
- Chrome-plated available for 1K+ order quantity.
Package Includes:
1 x GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna
Specifications :-
| Frequency (MHz) | 698 960 MHz & 1710 2690 MHz |
| Gain | 6/ 7 dBi (with 1m cable) |
| Impedance () | 50 |
| VSWR | < 2.5 |
| Polarization | Linear |
| Power Handling (W) | 50 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Connector | SMA-PLUG or as required |
| Operational Temperature | -30 to 60 C |
| Humidity | 5 75% |
| Housing | Spring Steel Powder Coated |
| Dimension (mm) | 310 x 27 |
| Weight | 75 g (depends on cable length) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 192.34 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

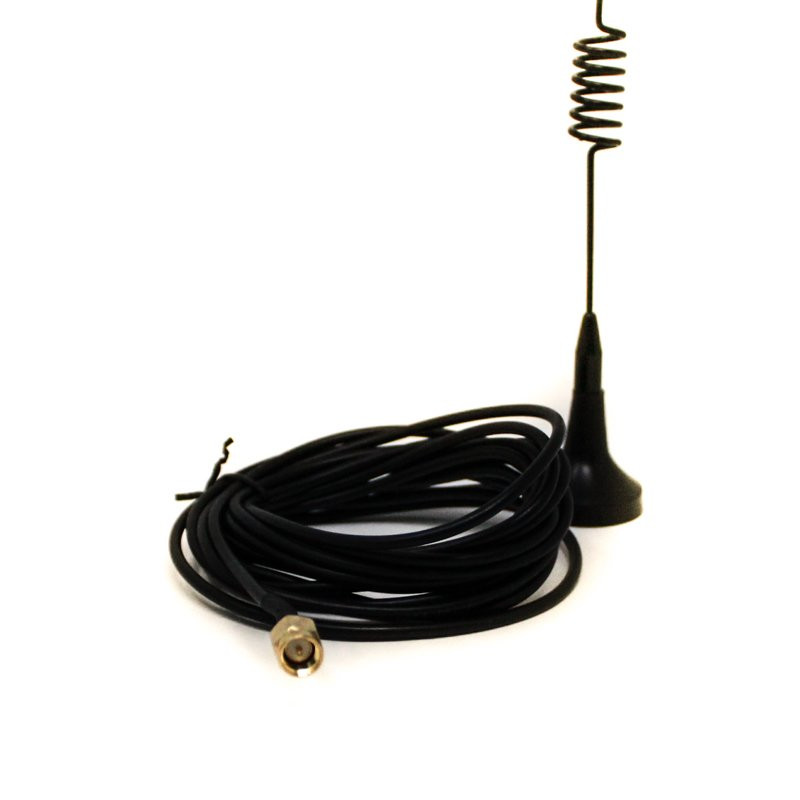

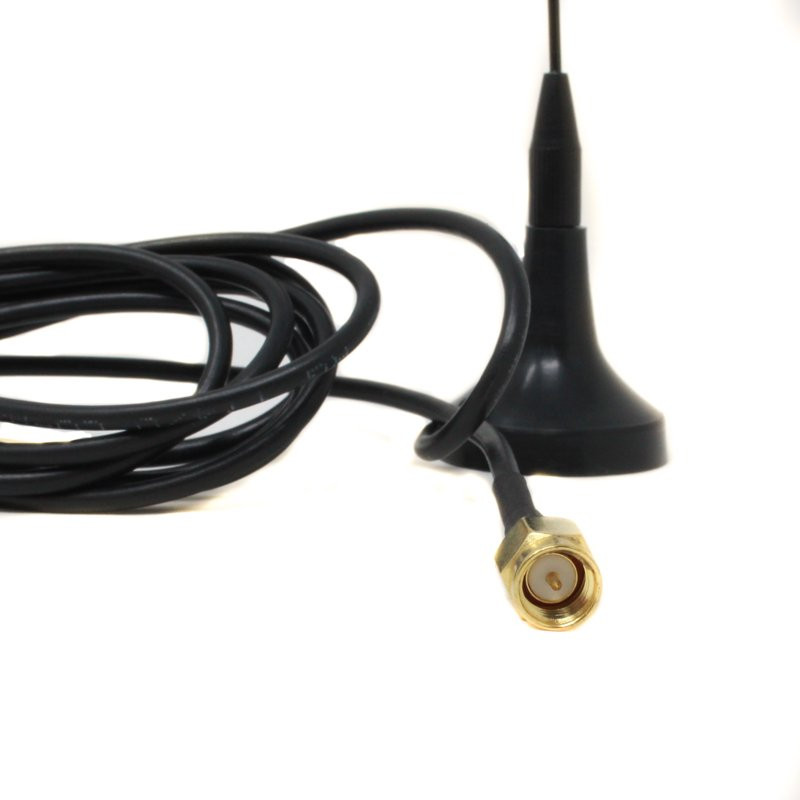

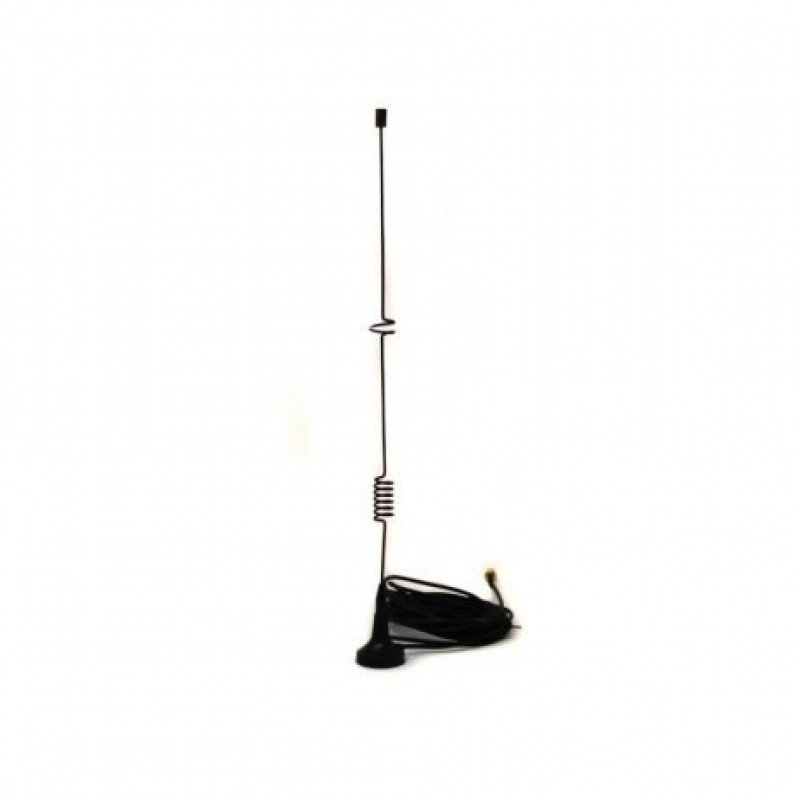

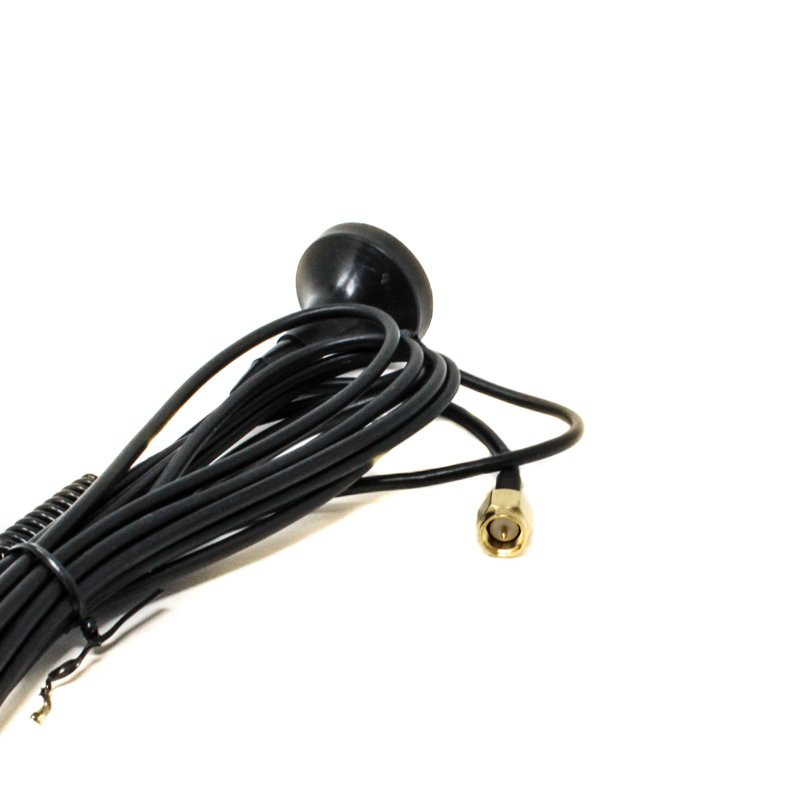

GSM 4G/3G/2G 6/7 dBi Dual Band LTE Flexible Magnetic Mount Antenna
- Product Code: EC-5983
- Availability: 18
-
Rs.163.00
- (Excluding 18% GST)
