This is a PCB Antenna having a frequency of 698-960MHz & 1710-2690MHz with 1.5dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.
Application: 2G, 3G, 4G LTE, ISM
Features:
- Compact Size
- High quality
- Low cost

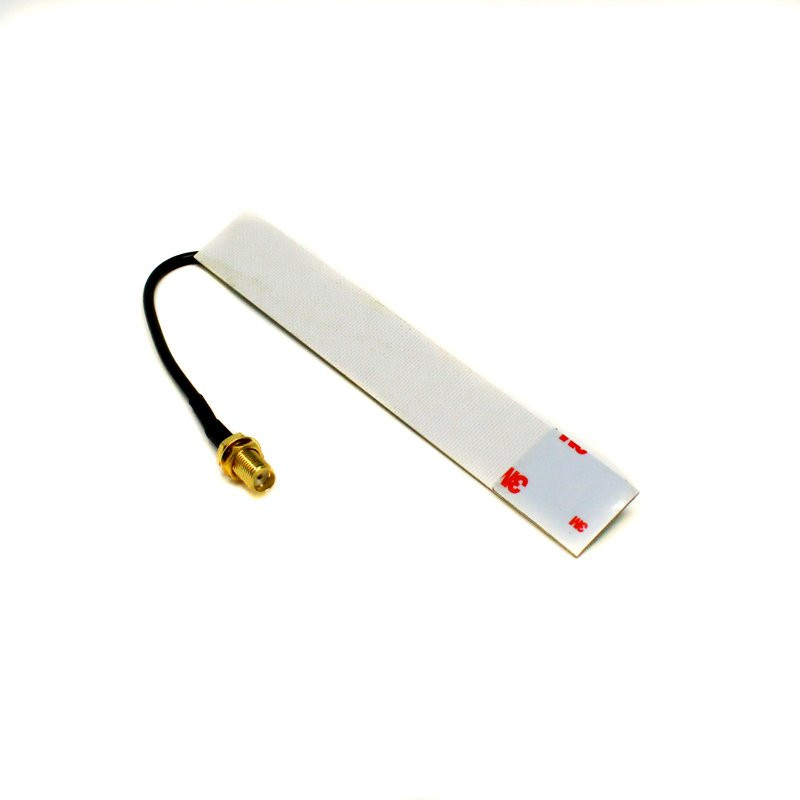

- 3M high-quality adhesive
- Masking for corrosion-free
Package Includes:
1 x Internal PCB Antenna for 2G / 3G / 4G Applications
Specifications :-
| Model | LWC-4G-PCB-03 |
| Frequency Range | 698 ~ 960MHz & 1710 ~ 2690MHz |
| Gain | ~ 0/1.5dBi |
| Impedance () | 50 |
| VSWR | < 2.5 |
| Polarization | Linear |
| Power Handling (W) | 5 |
| HPBW | H: 3600 V: 300 /400 |
| Cable | Mini Coax 1.13mm/0.81mm/ RG178/ RG316 |
| Cable Length | As required (suggested up to 20cm) |
| Connector | SMA Female |
| Operating Temperature (C) | -30 to 60 |
| Humidity | 5 75% |
| Length (mm) | 54 |
| Width (mm) | 34 |
| Height (mm) | 5 |
| Weight (gm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

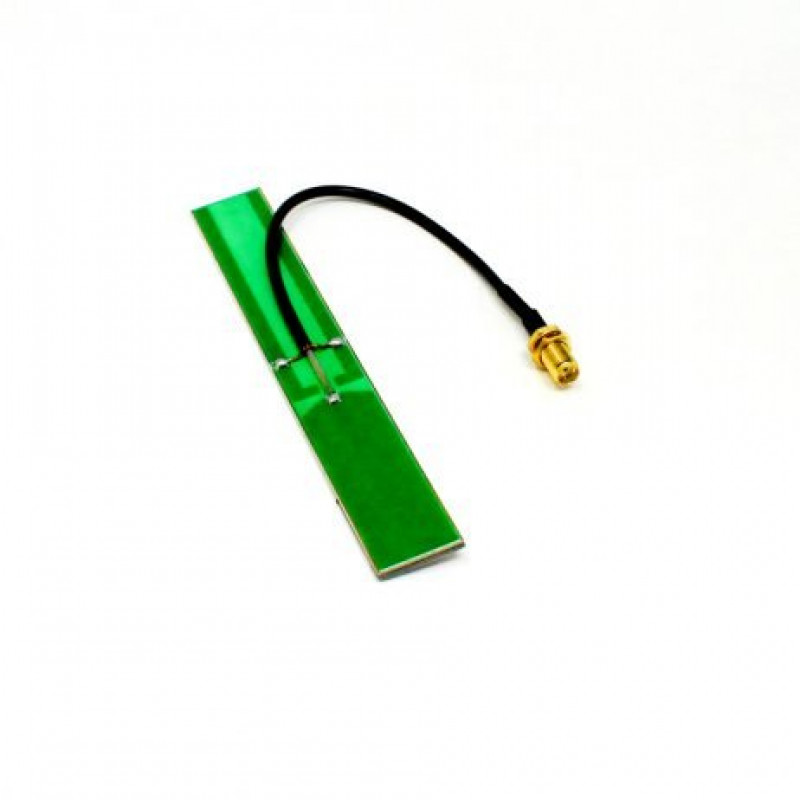

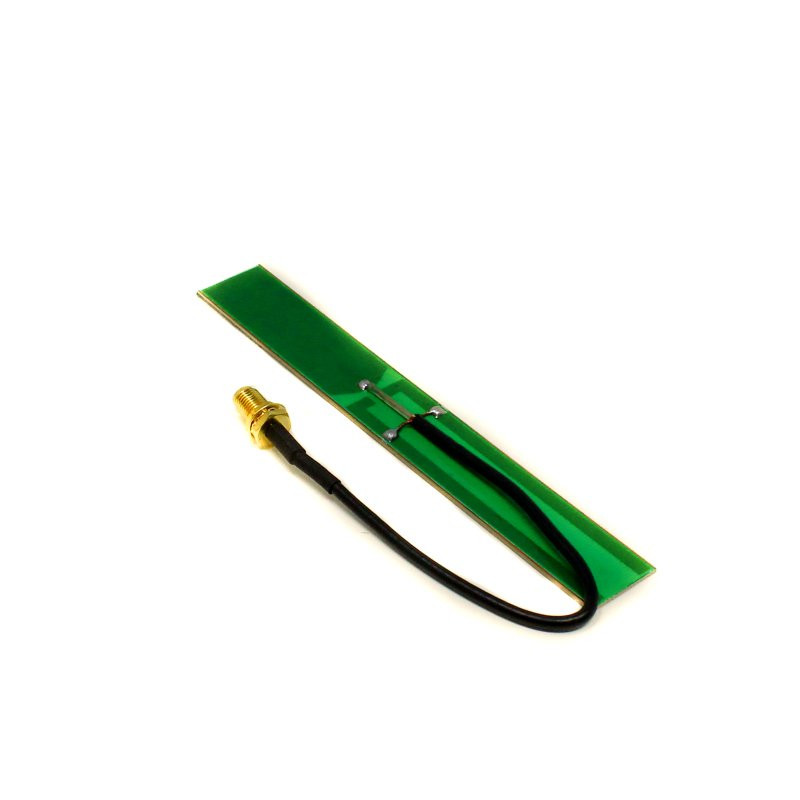

Internal PCB Antenna for 2G / 3G / 4G Applications
- Product Code: EC-5988
- Availability: 2
-
Rs.114.46
