Reverse-polarity SMA (RP-SMA or RPSMA) is a variation of the SMA connector specification which reverses the gender of the interface. This non-standard type SMA connector finds common applications in WiFi and WLAN systems and is the most popular reverse polarity RF connector. The reverse polarity characteristic is achieved with a reverse mating interface in which the RP-SMA connector male houses the female receptacle while the RP-SMA connector female/jack houses the center pin.
Application: Interconnects
Features:
- High-quality material used
- MIL grade available on request
Package Includes:
1 x RPSMA Male To SMA Female Adapter
Specifications :-
| Frequency (MHz) | 0 3.0 GHz |
| Working Voltage (V) | 170 335 VRMS (depends on cable) |
| Dielectric Withstanding Voltage | 500-1000 VRMS (depends on cable) |
| VSWR | < 1.5 |
| Contact Resistance | Centre: 6 milliohm |
| Power Handling (W) | 10 |
| Insulator Resistance | 500 Megaohms |
| Body, Metal Parts | Brass with Ni, Gold or Passivity (As required) |
| Center Contact | Jack: Beryllium Copper Gold Plated |
| Insulators | Teflon |
| Crimp Ferules | Annealed copper Ni/ Au plated |
| Clamp Gaskets | Silicone rubber |
| Operational Temperature | -30 to 60 C |
| Humidity | 5 95% |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 230.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

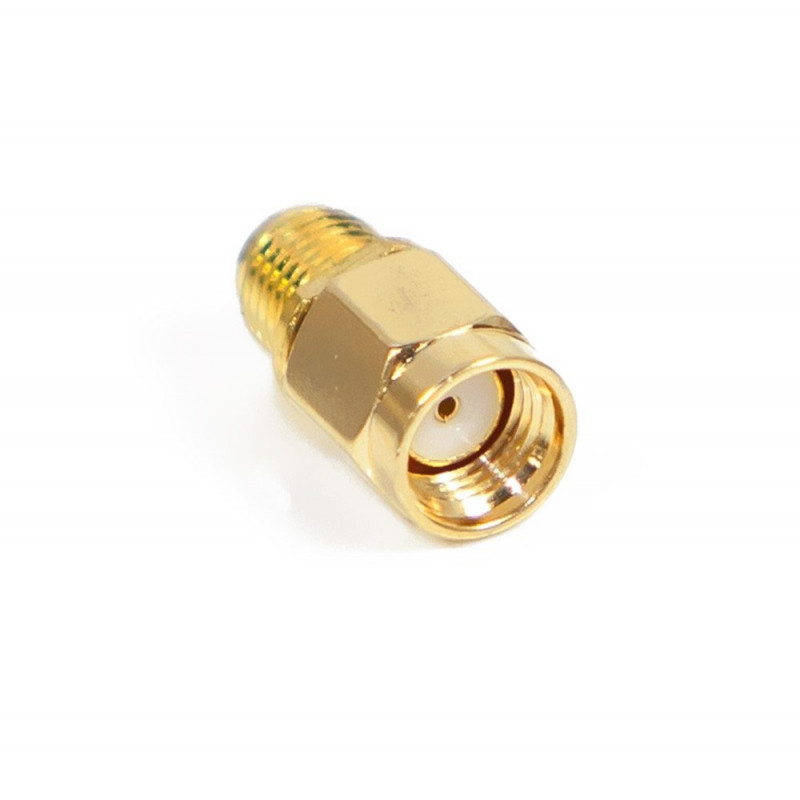

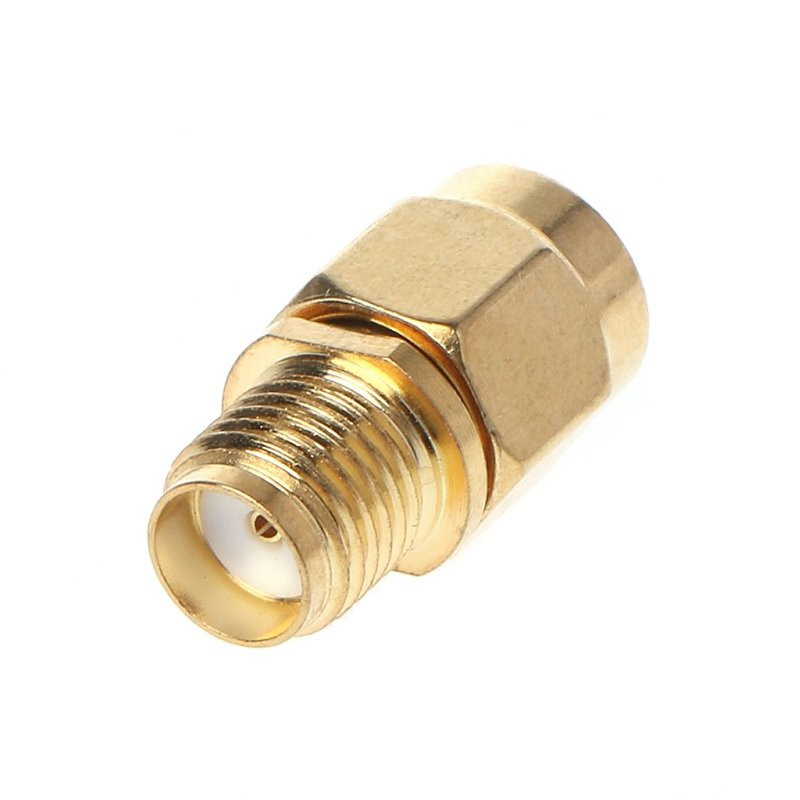

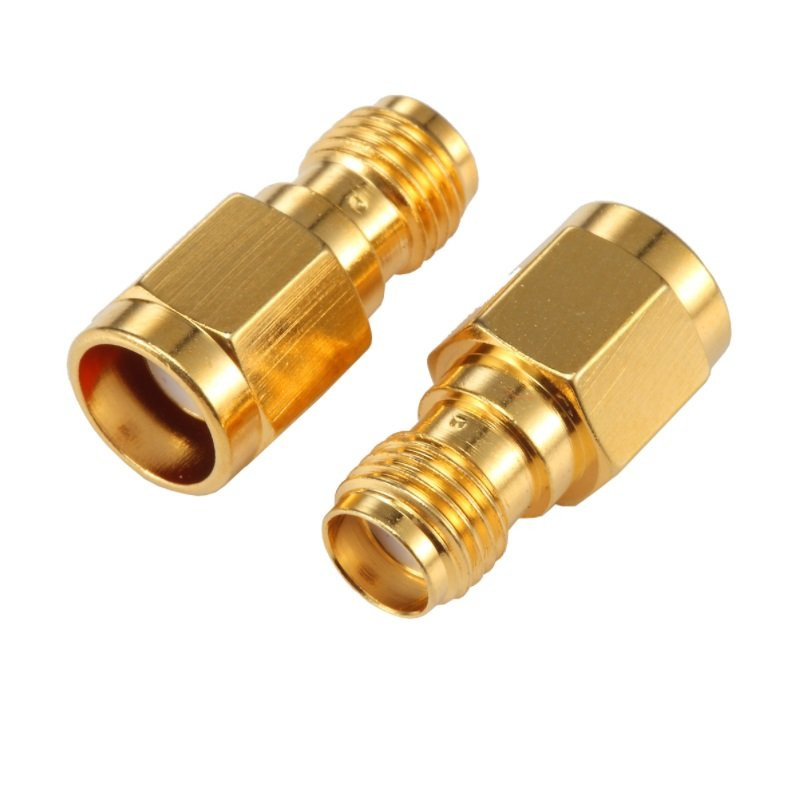

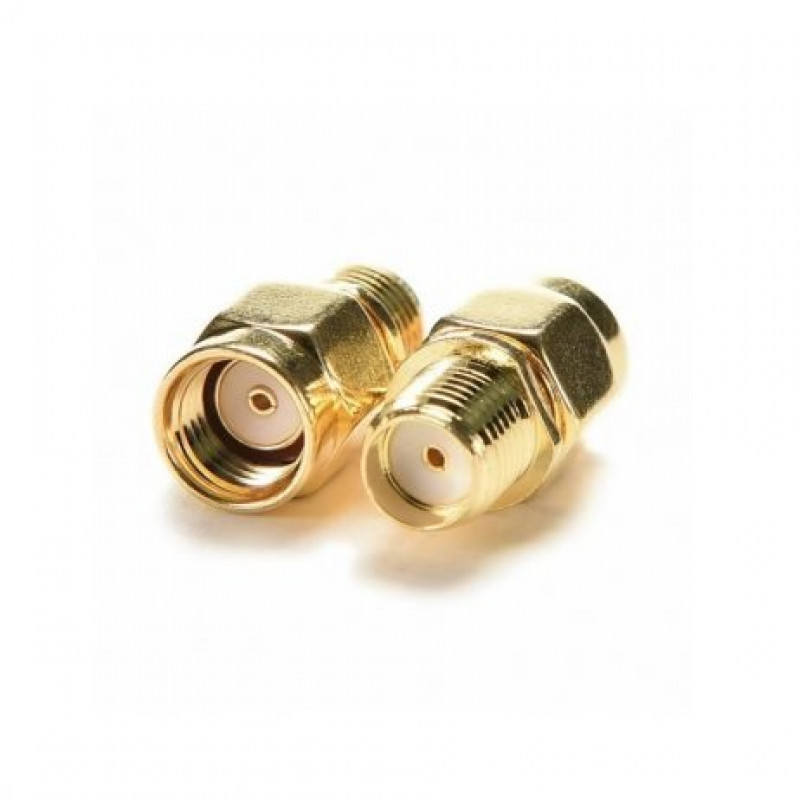

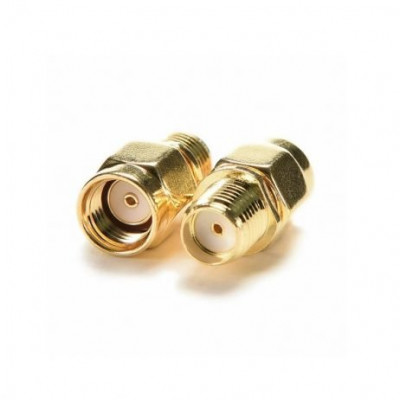

RPSMA Male To SMA Female Adapter
- Product Code: EC-6005
- Availability: Out Of Stock
-
Rs.275.00
- (Excluding 18% GST)
