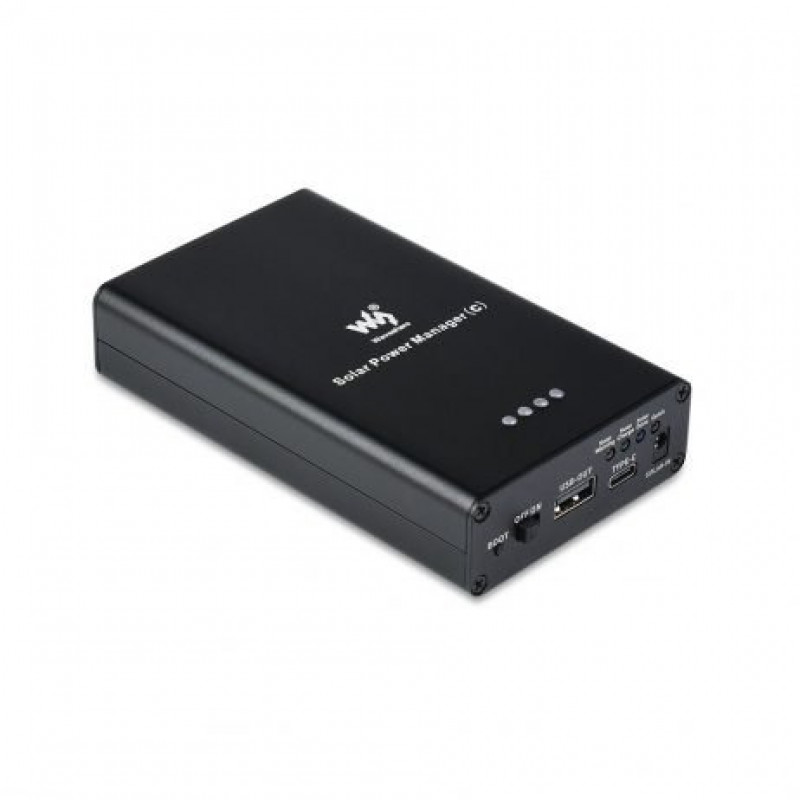

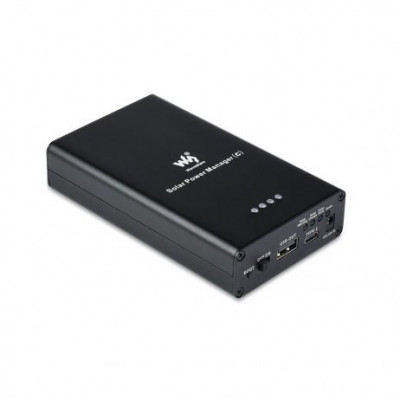

Do you want to build your own power bank by using your 18650 Li-Ion battery cells? Then you should take look at this 2 in 1 Solar Power Manager (C) from waveshare. This completely assembled PB in a strong aluminum case with a stylish look is compatible with dynamic 6V~24V solar panels inputs. It can recharge the 3 x 18650 rechargeable Li-ion batteries through a solar panel or via a USB TYPE-C port by any 5V DC power adapter. On the output side, it provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP) which can charge the Mobile phone in a fast-charging Mode @15W

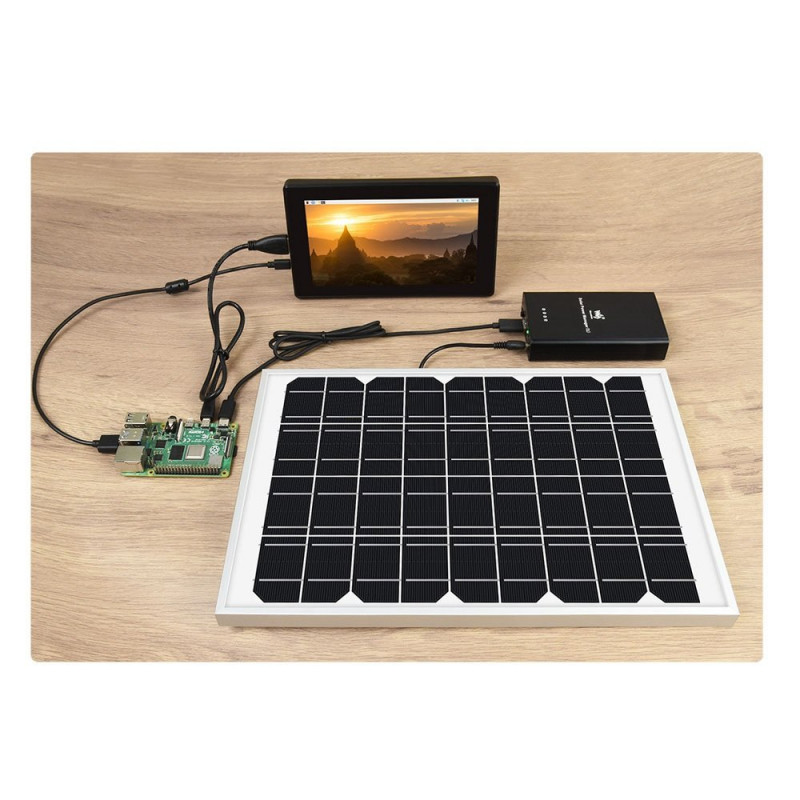

The module features MPPT(Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.

Note: This Power Bank is compatible with 3 x 18650 Lithium-ion cells. (Not included in Package)


Recommended Cell for High-Quality performance:

PANASONIC NCR18650B 3400mAh (1c) LI-ION BATTERY
LG INR18650MJ1 3500mAh (3c) LI-ION BATTERY
LG INR18650MH1 3200mAh (3c) LI-ION BATTERY

Features:

  1. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  2. Flexible battery recharging: from solar panel or USB TYPE-C power adapter
  3. Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
  4. Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
  5. An onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance

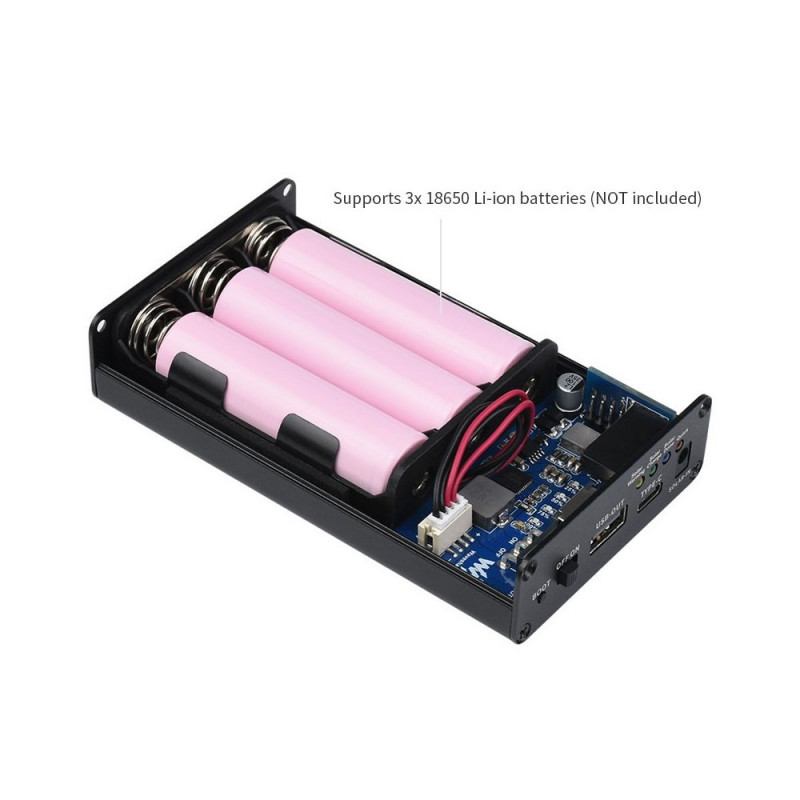

  6. Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
  7. Several LED indicators, for monitoring the status of solar panel and battery
  8. Multi-protection circuits: overcharge / over-discharge / reverse-proof / overheat / over current, stable and safe to use

Caution: DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosions may occur if you try to charge a non-rechargeable battery.


Package Includes:

1 x Waveshare Solar Power Manager (C) Case

1 x DC-002 connector to connect the solar panel output

1 x Screw Driver fitting screws



Specifications :-

Solar Input Range (VDC)

6V ~ 24V (18V by default)

Compatible Battery Size

3x 18650 Li-ion battery (NOT included)

USB Input

5V (TYPE-C, with PD quick charge support)

Output Port

5V / 3A (USB-OUT, TYPE-C)

Recharge Cut Off Voltage

4.2V 1

Over Discharge Protection

3.0V 1

Operating Temperature Range (C)

-30 to 85

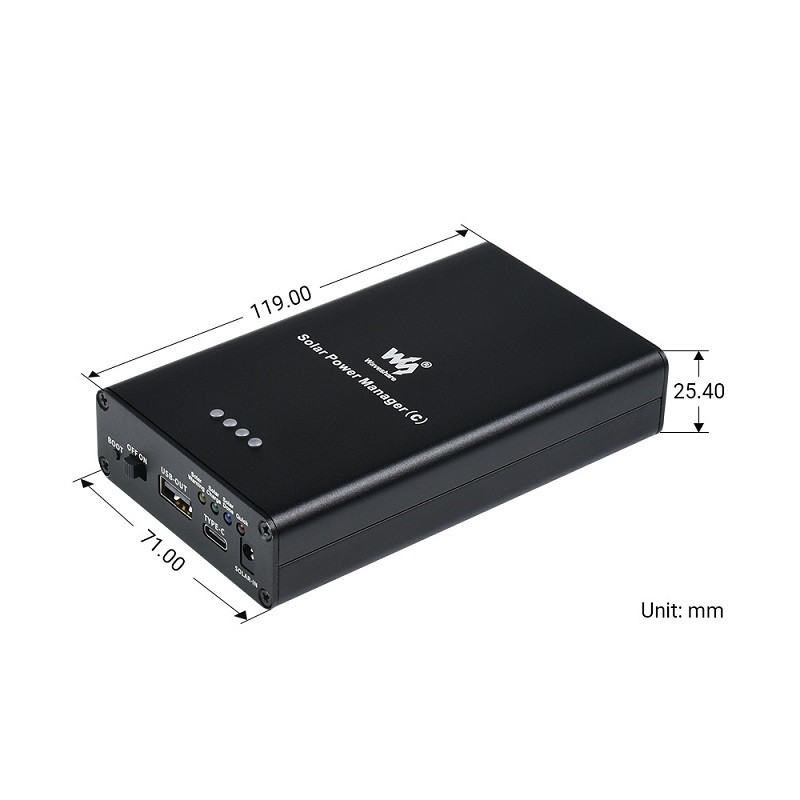

Length (mm)

119

Width (mm)

71

Height (mm)

25

Weight (gm)

175


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2040.22 (Inclusive of all Taxes)
