Key Specifications:-
- Output Voltage 24V
- Type Enclosed Type
- Approx. Wattage 450W
- Features Standard
- Series SE(High Power)
- Mechanical Form Enclosed
- Warranty 2 Years Warranty
- IP Level Non-Waterproof
- Input Voltage 100-240V auto-select
Features:-

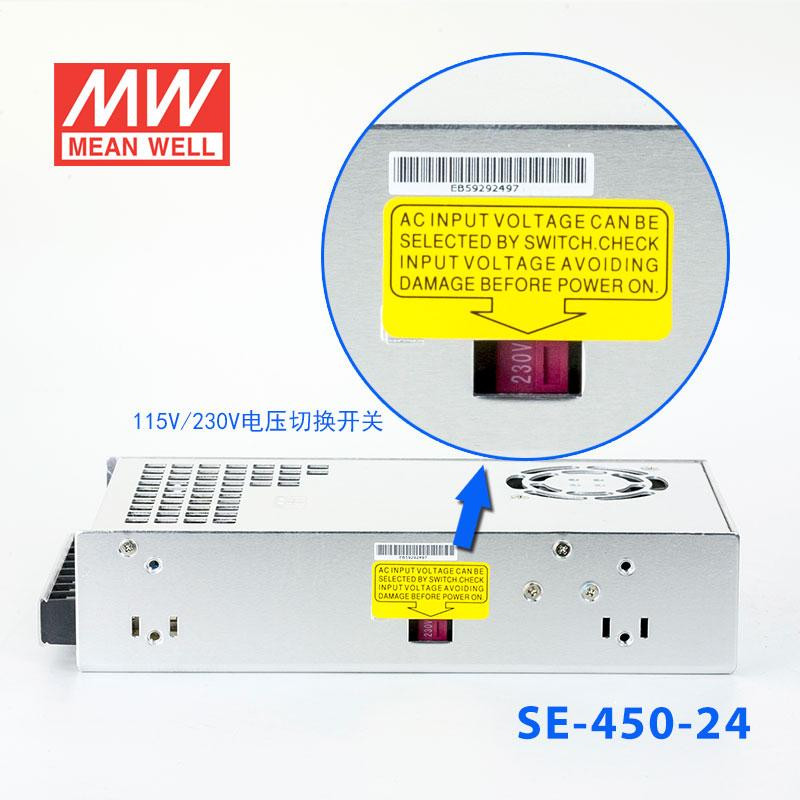

- AC input selectable by switch
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 100% full load burn-in test
- LED indicator for power on
- Built-in remote sense function
- Forced air cooling by built-in DC fan
- 2 years warranty
Specifications:-
AC input voltage range | 115/230VAC by switch |
AC inrush current (max.) | Cold start, 55A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~150% |
Overload protection Type | Shut down o/p voltage, re-power on to recover |
Over voltage protection | 115%~145% |
Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC |
Working temperature | -10~+60°C (refer to output derating curve) |
Safety standards | UL60950-1 |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, |

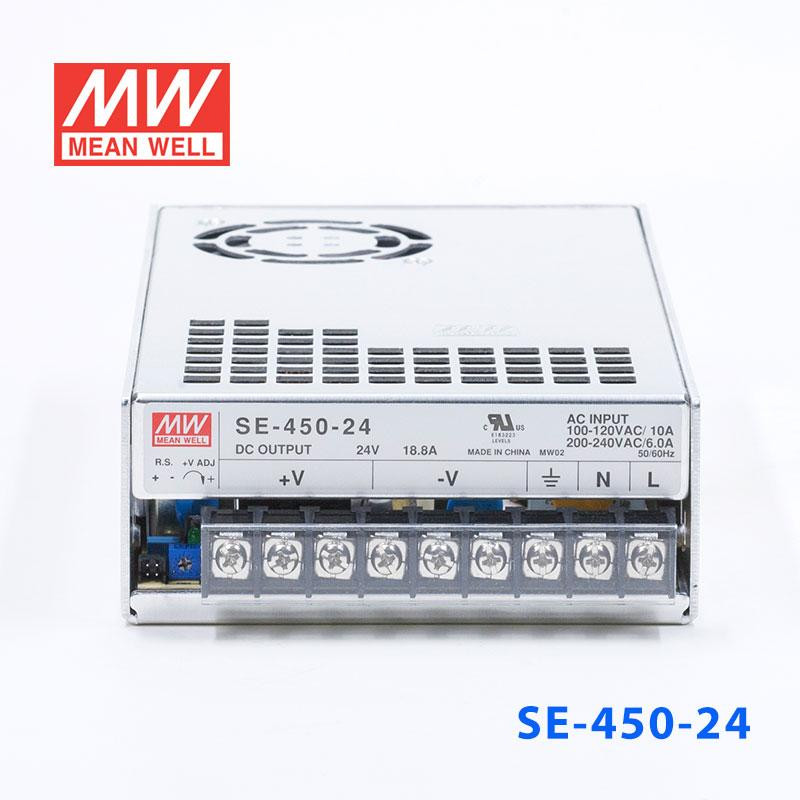

Connection | 9P/11mm pitch terminal block with cover |
Dimension (LxWxH) | 225x 124x 50 |
Case No. | 986A |
Related Documents:-
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 6602.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

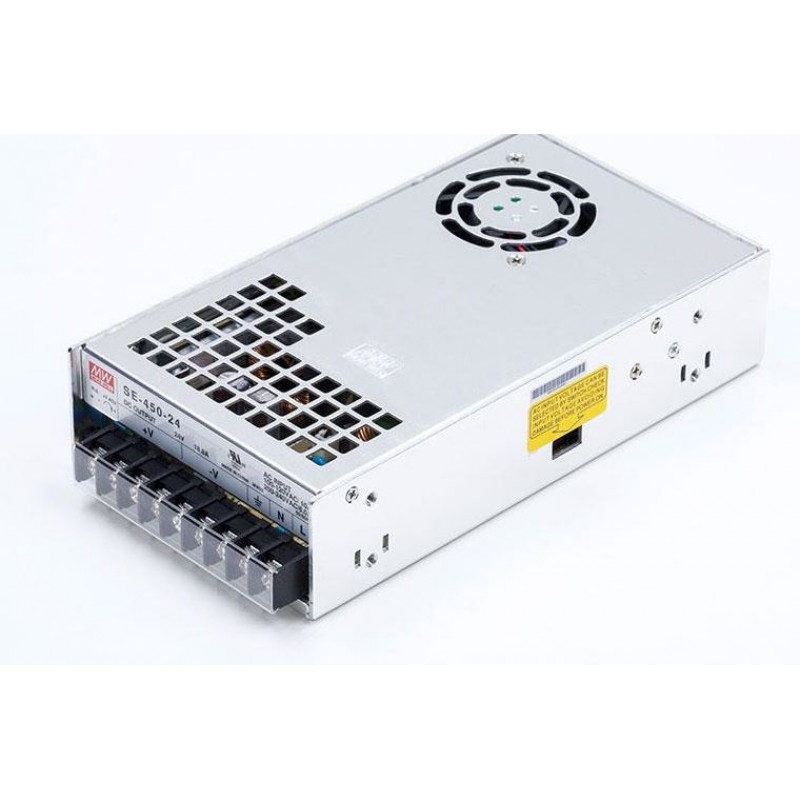

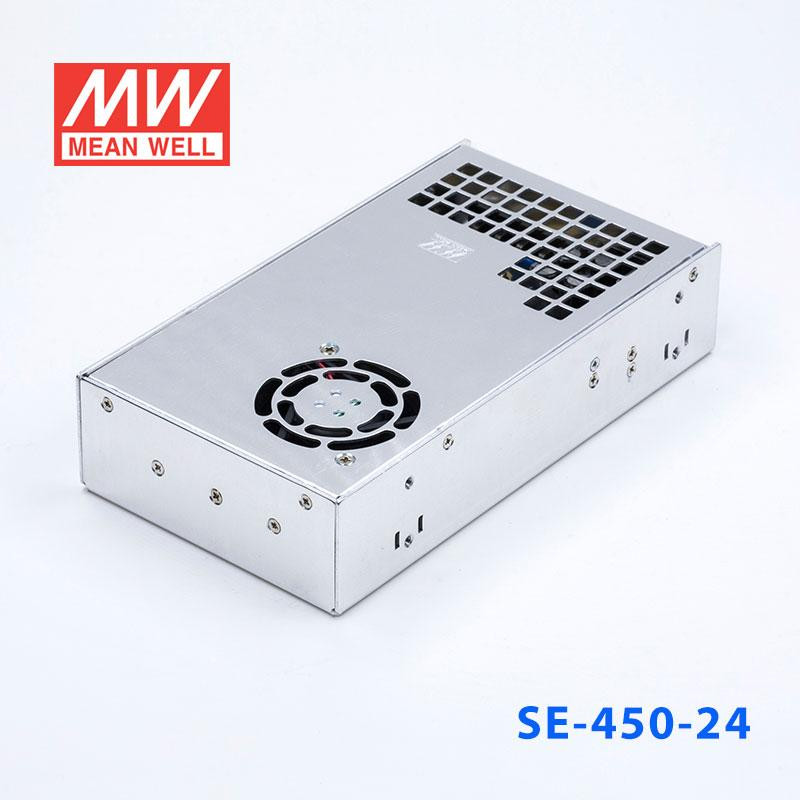

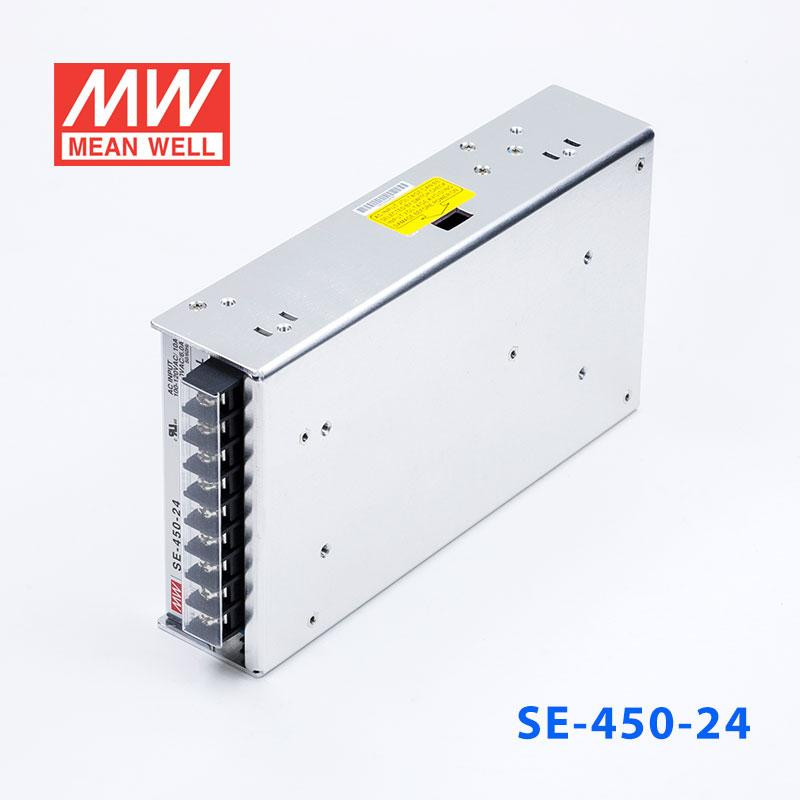

SE-450-24 Mean Well SMPS - 24V 18.8A - 451.2W Metal Power Supply
- Product Code: EC-2954
- Availability: Out Of Stock
-
Rs.5595.00
- (Excluding 18% GST)
