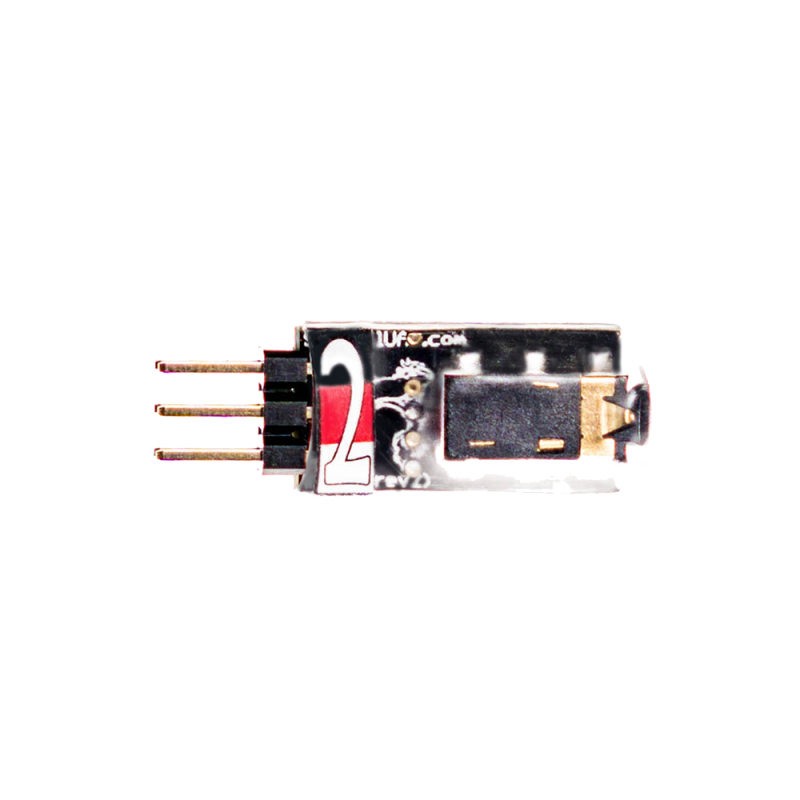

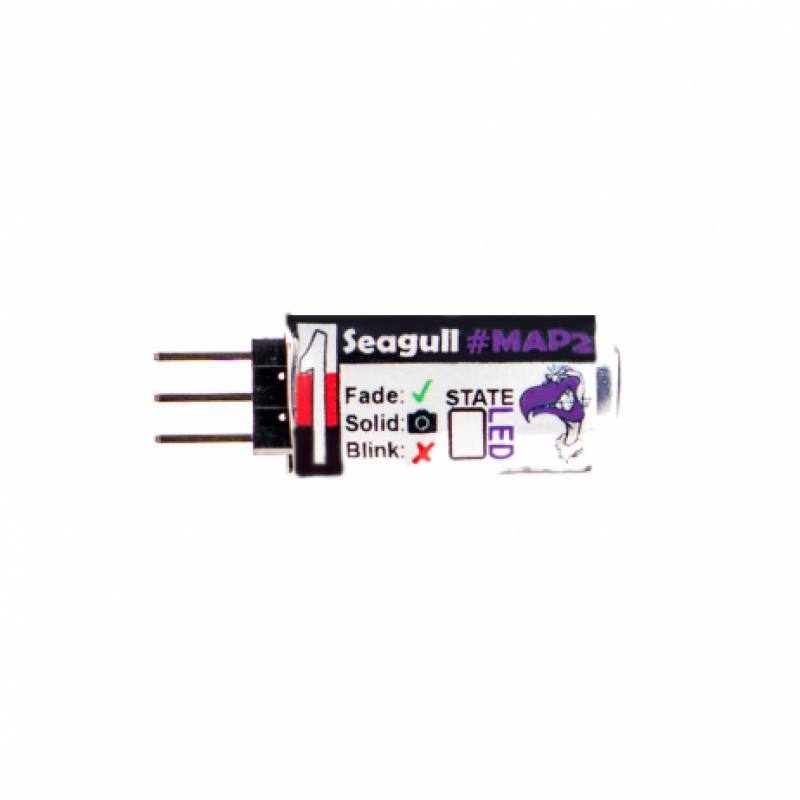

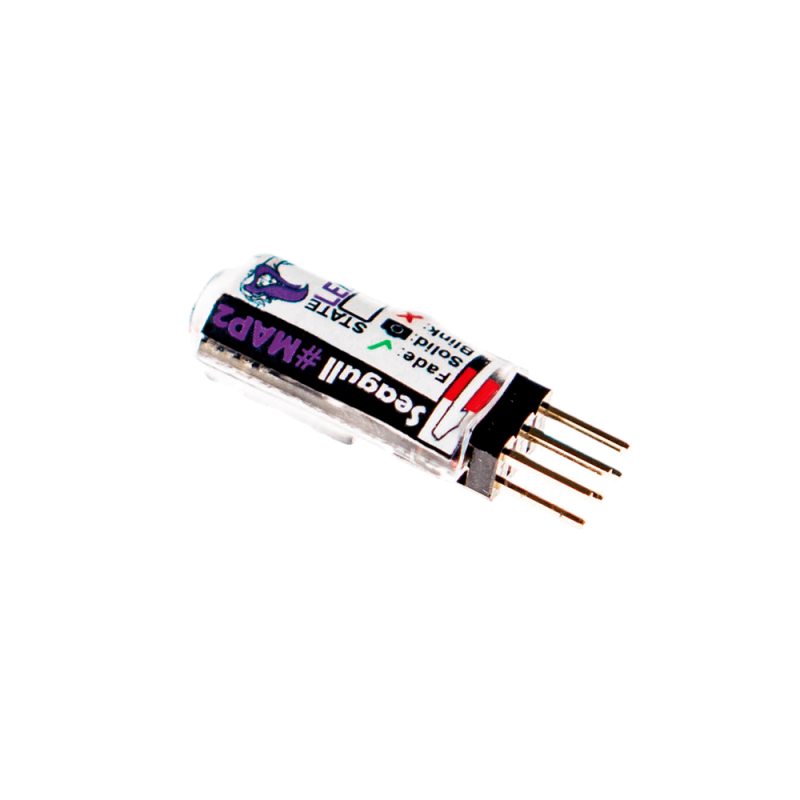

Seagull #MAP2 is a compact camera trigger module designed for UAVs, featuring dimensions of 28.6 x 10.3 x 7.7 mm and weighing just 1.6g (approx. 12g with cables). It operates within a voltage range of 3.5 to 5.5 volts, with a low current draw of 21.75mA max. Compatible with various Flight Controllers including Pixhawk and DJI models, it interfaces seamlessly with standard R/C PWM signals. Users can trigger their cameras manually via R/C transmitter or automate the process with the Flight Controller. Ideal for image mapping, agricultural analysis, and 3D modeling, Seagull #MAP2 offers unparalleled versatility and control.

Features:

1. Compact design for seamless integration into UAV setups.
2. Lightweight construction preserves flight performance.
3. Wide voltage compatibility (3.5-5.5V) ensures stable operation.
4. Compatible with various Flight Controllers for versatility.
5. Flexible triggering options enable manual or automated camera control.

Specifications:

1. Dimensions: 28.6 x 10.3 x 7.7 mm
2. Weight: 1.6g (approximately 12g with cables)
3. Voltage Range: 3.5 5.5 volts (5 volts recommended)
4. Current Draw: 21.75mA max
5. Input Signal: Standard R/C PWM between 1000 2000S

Package Includes:

1 x Seagull UAV #MAP2 Camera Controller
