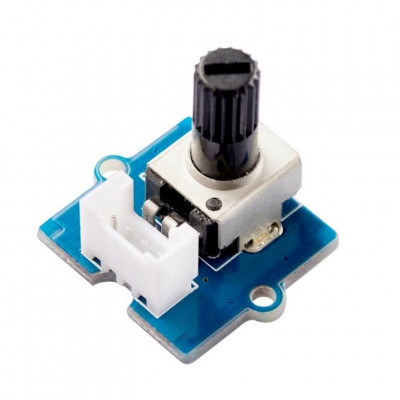

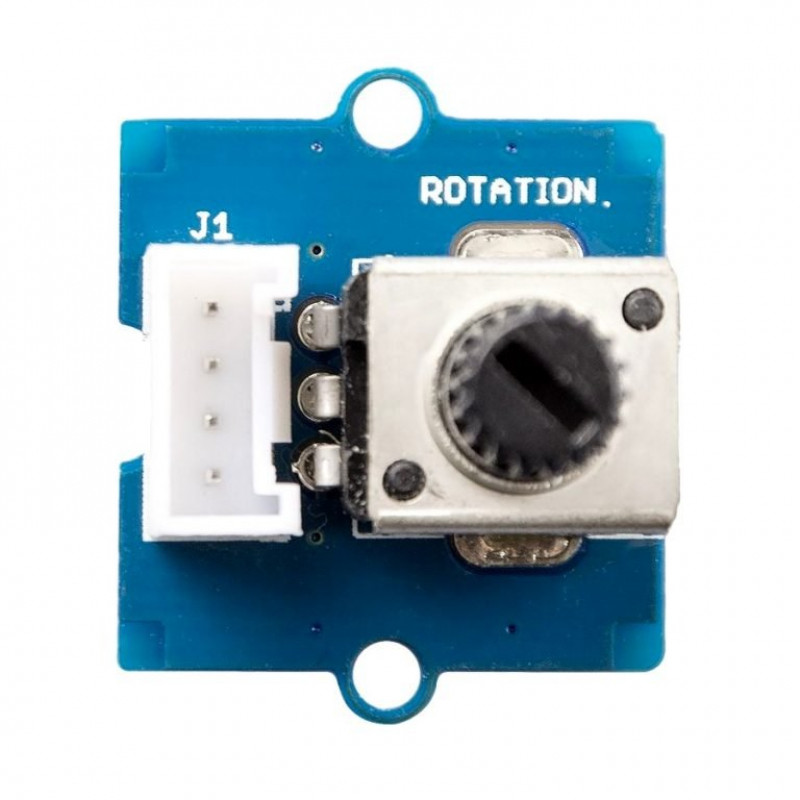

Do you need a sensor to produce analog output values between zero volt and Vcc? So, We have a module, the Grove Rotary Angle Sensor especially for you. It comes with an inbuilt potentiometer. You can produce a wide range of analog output values between 0 and Vcc (5V DC with Seeeduino) on its D1 connector with the potentiometer twig. The angular range is 300 degrees with a linear change in value and the resistance value is 10 k which is perfect for use with Arduino. The sensor is a Grove base module with compatible interface with the Grove system.

For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. So, why wait? Buy now!

Features:

1. Angular range: 300
2. Output range: 0 to Vcc
3. Grove compatible interface
4. Easy to use
5. Grove base module

Useful Links:

Tutorial

Project Links:

Using Grove-Rotary Angle Sensor(P) to Control Grove LED

Package Includes:

1 x Grove Rotary Angle Sensor Module

Specifications :-

Operating Voltage (VDC)	4.75 ~ 5.25
Rotational Degree	0 to 300
Length (mm)	25
Width (mm)	20
Height (mm)	30
Mounting hole diameter (mm)	2
Weight (gm)	5
