Grove Serial Bluetooth is an easy to use module compatible with the existing Grove Base Shield and designed for transparent wireless serial connection setup. The serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR(Enhanced Data Rate) 2Mbps Modulation with a complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).It has the smallest footprint of 12.7mm x 27mm. Hope it will simplify your overall design/development cycle.
Features:
- Data Rate: 2Mbps
- RF Transmit Power (Max)+4dBm
- Sensitivity-80dBm
- Fully Qualified Bluetooth V2.0+EDR 3Mbps Modulation
- Selectable baud rate
Package Includes:

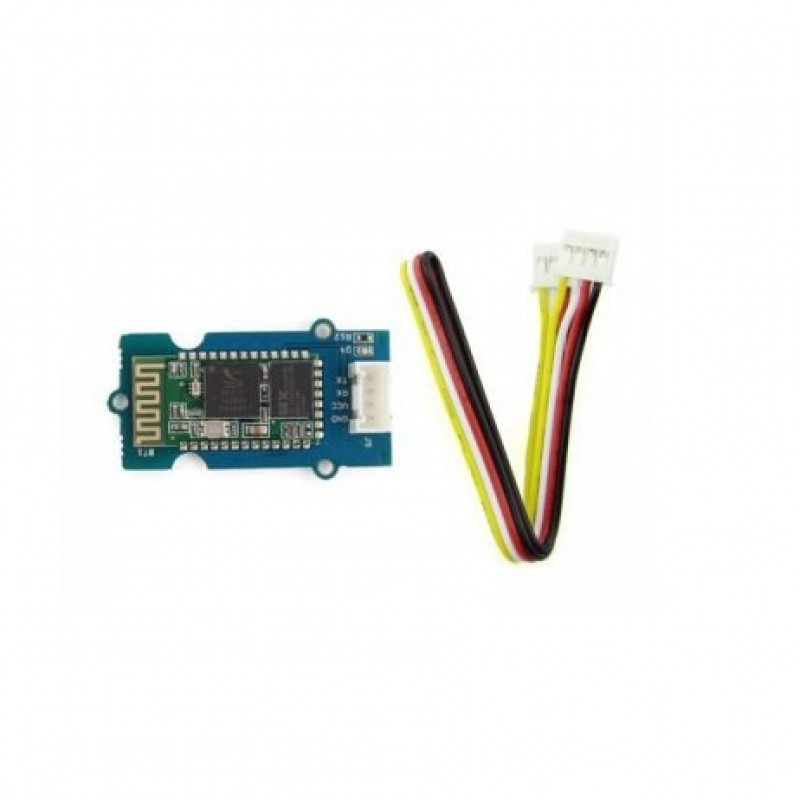

1 x Grove Serial Bluetooth v3.0 Module
Specifications :-
| Operating Voltage | 5.0VDC |
| Data Rate | 2Mbps |
| RF Transmit Power (Max) | +4dBm |
| Sensitivity | -80dBm |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1858.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove Serial Bluetooth v3.0 Module
- Product Code: EC-5161
- Availability: Out Of Stock
-
Rs.1750.00
- (Excluding 18% GST)
