Are you searching for a temperature sensor having high accuracy? Then, the Grove Temperature Sensor v1.2 is perfect for you. It uses a thermistor as a form of resistance value to alter the Vcc. The resistance of a thermistor will increase when the ambient temperature decreases. Its this characteristic that we use to calculate the ambient temperature. Depending on the temperature measured, it supplies an analog signal from 0 to 5 Vcc. The detectable range of this sensor is -40 to 125C and the accuracy is 1.5C.
For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. So, why wait? Buy now!
Features:
- High Accuracy
- Thermistor: NCP18WF104F03RC (NTC)
- Grove compatible interface
- Easy to use
Useful Links:
Package Includes:
1 x Grove Temperature Sensor v1.2 Module
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Thermistor Zero Power Resistance | 100 K? |
| Resistance Tolerance | ?1% |
| Nominal B-Constant | 4250 to 4299K |
| Operating Temperature Range (C) | 40 to 125 |
| Accuracy | 1.5C |
| Length (mm) | 24 |
| Width (mm) | 20 |
| Height (mm) | 10 |
| Mounting hole diameter (mm) | 2 |
| Weight (gm) | 4 |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 105.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

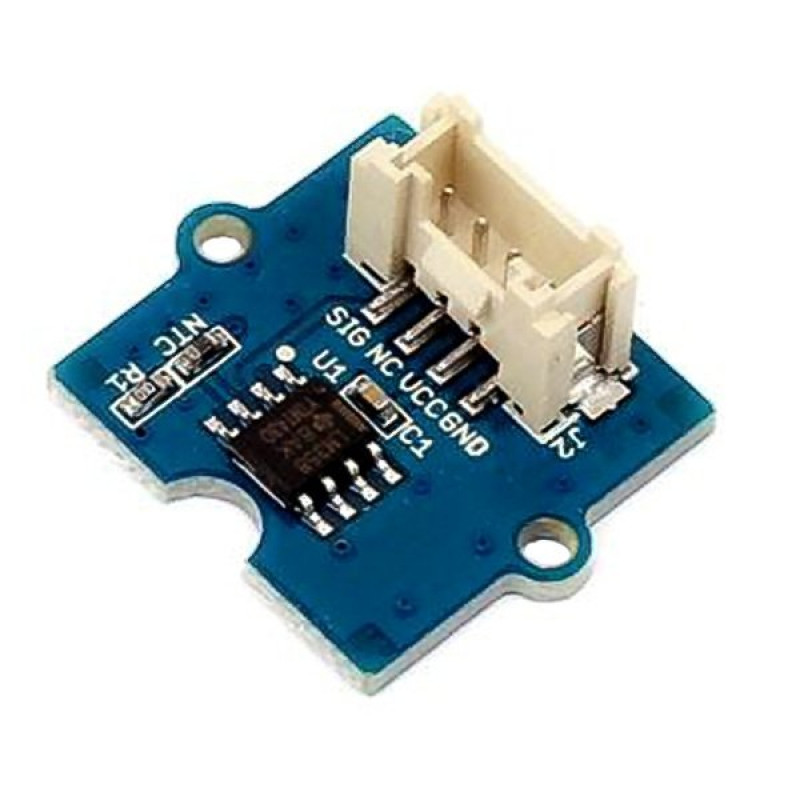

SeeedStudio Grove Temperature Sensor Module
- Product Code: EC-5151
- Availability: Out Of Stock
-
Rs.377.00
- (Excluding 18% GST)
