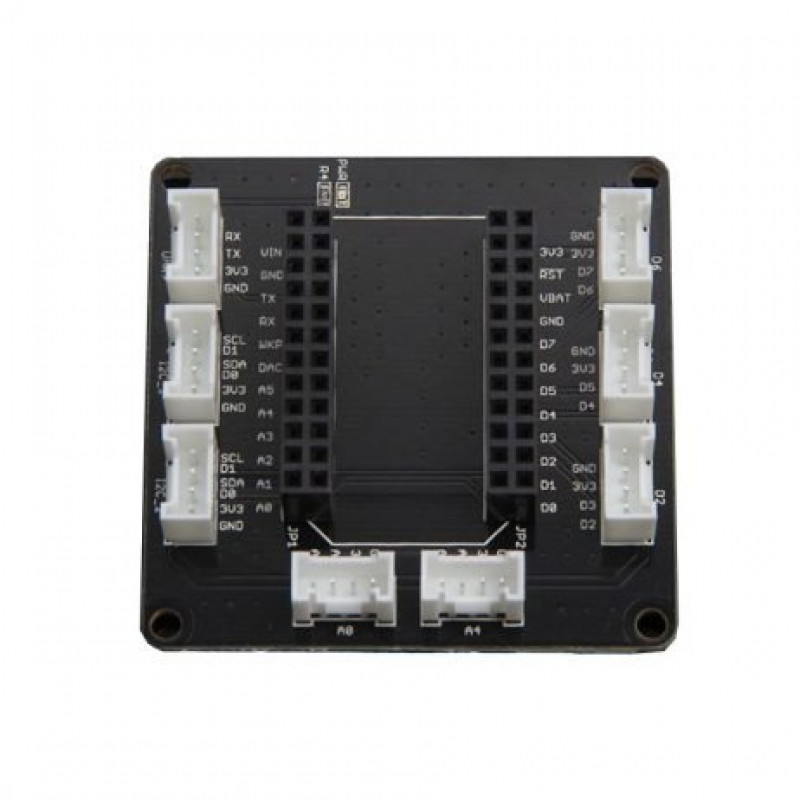

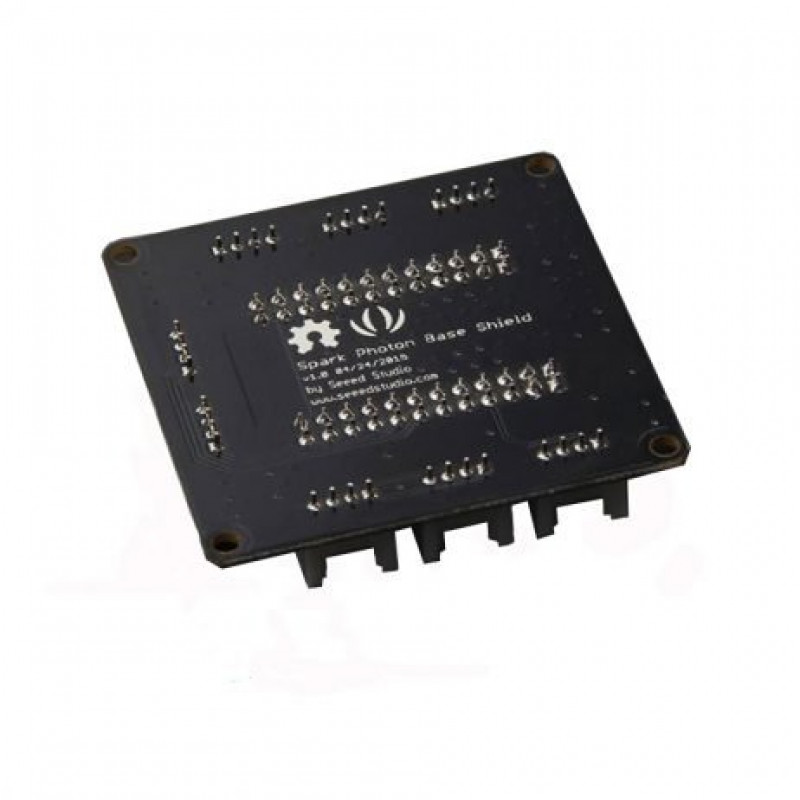

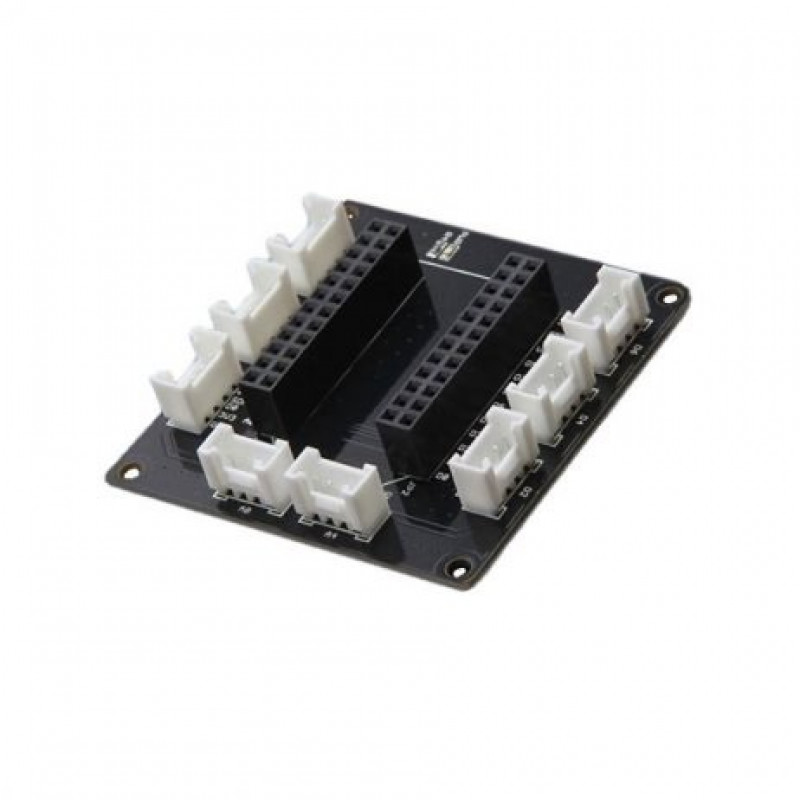

Grove Base Shield for Photon is an expansion board that incorporated the standard Grove interfaces to let you build more powerful and intelligent applications with richer and cost-effective Grove functional modules. It gets three digital ports, two analog ports, two I2C ports, and one UART port. It is a plug-and-play shield designed to accelerate prototyping dramatically.
Application ideas
- Compact IoT applications such as a smart router.
Note: This shield can not work with Particle Mesh, only compatible with Particle Photon.
Features:
- Compatible with Photon
- Standard Grove interfaces to connect to a large family of Grove sensors and actuators
- I2C, UART ports integrated
Useful Links:
Package Includes:
1 x Particle Photon Base Shield
Specifications :-
| Grove Ports | 3 digital ports, 2 analog ports, 2 I2C ports and 1 UART port |
| Battery | Excluded |
| Length (mm) | 53 |
| Width (mm) | 53 |
| Height (mm) | 10 |
| Weight (gm) | 18 |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 737.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Particle Photon Base Shield
- Product Code: EC-5135
- Availability: Out Of Stock
-
Rs.666.00
- (Excluding 18% GST)
