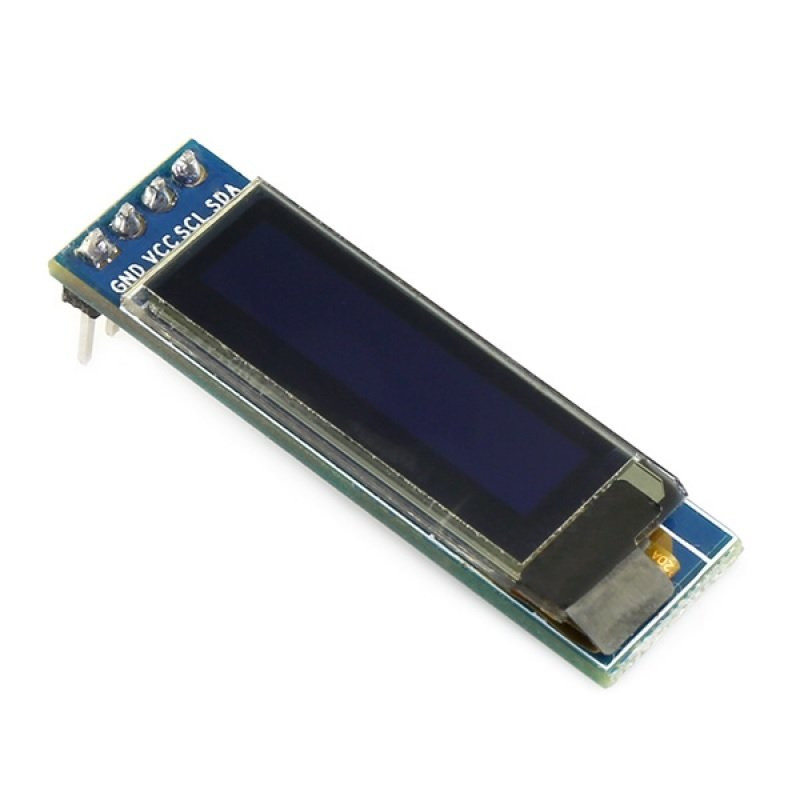

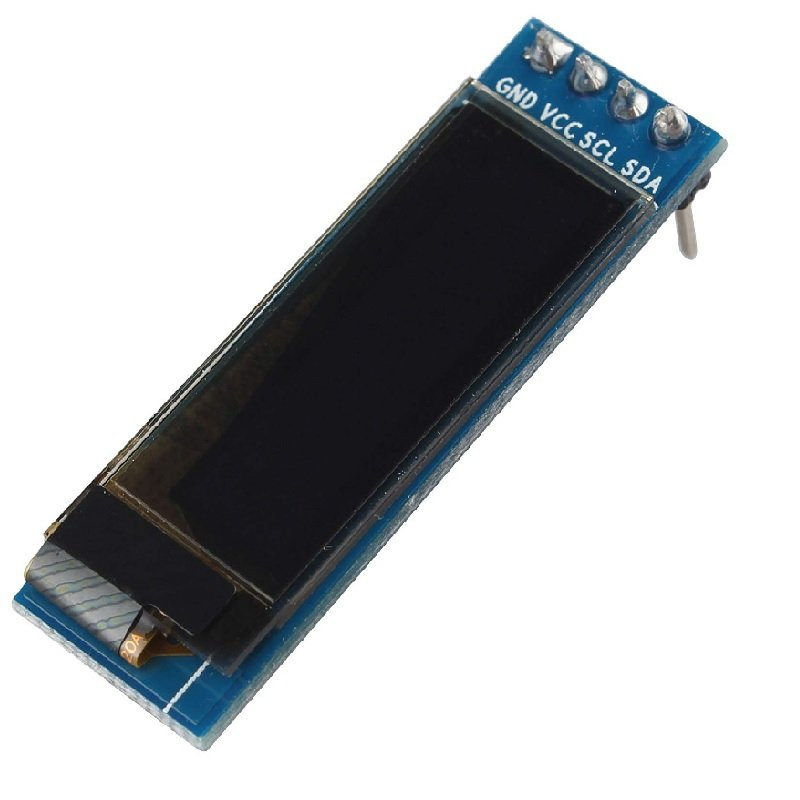

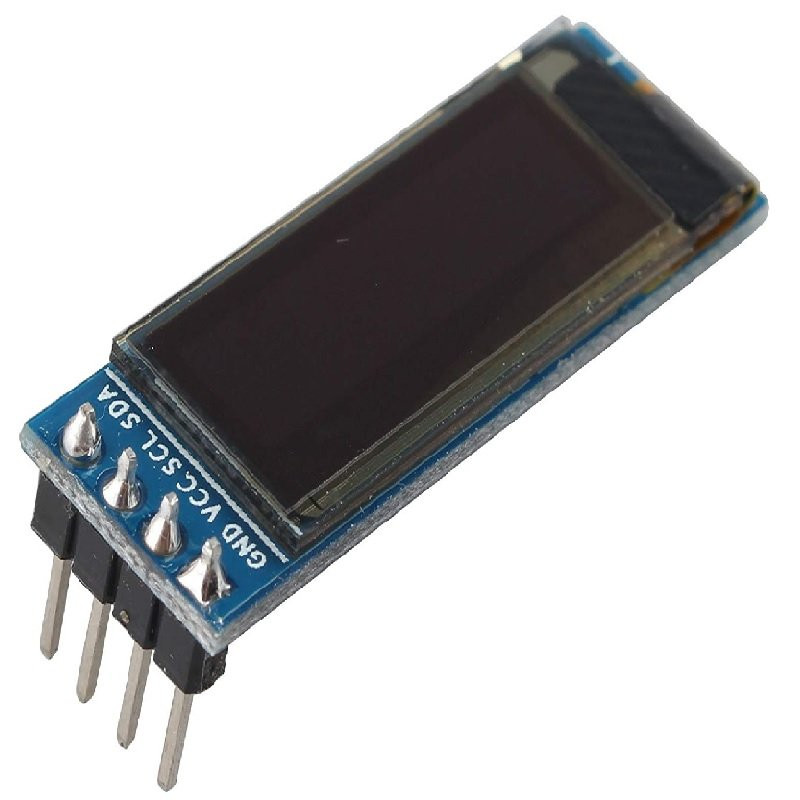

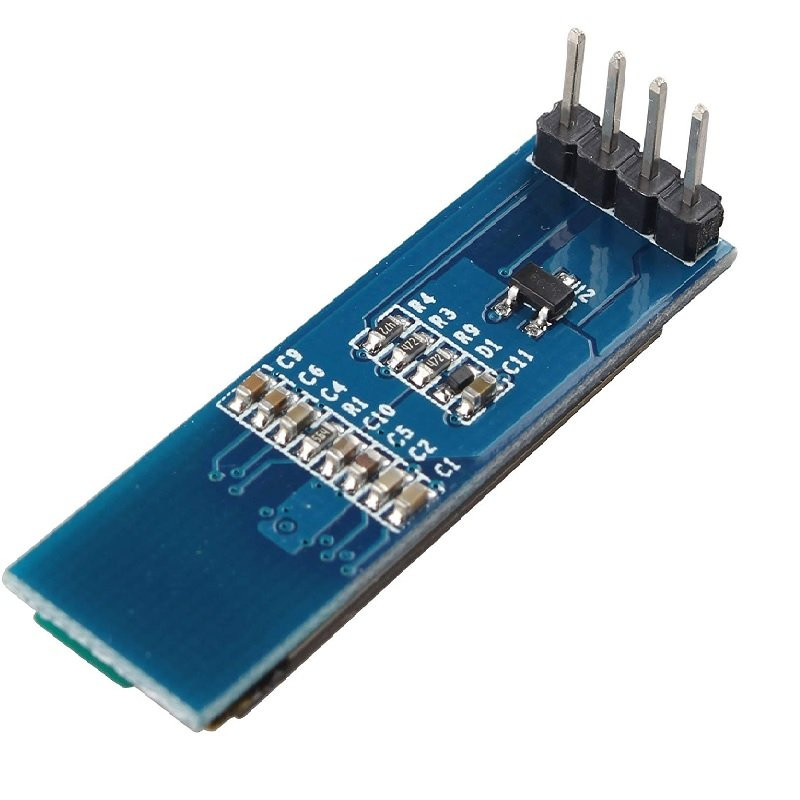

This 0.91 I2C OLED Display is an OLED monochrome 12832 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. The driver IC is SSD1306 with the I2C interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3V-5V microcontroller, such as Arduino.
Pin Definition:
1. GND: Power ground
2. VCC: Power positive
3. SCL: Clock wire
4. SDA: Data wire.
Package Includes:
1 x 0.91 inch I2C/IIC Serial 4-Pin OLED Display Module - White
Specifications:
| Display Size | 0.91 Inch |
| Resolution | 128 x 32 Pixels |
| Controlling Chip | SSD1306 |
| Display Area | 22.384 x 5.584mm |
| Driving Voltage | 3-5V |
| Interface Type | IIC |
| Operating Temperature | -40~70 Celsius |
| Pixel Color | White |
| Length (mm) | 38.0 |
| Width (mm) | 12.0 |
| Height (mm) | 2.6 |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 265.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2.32 cm (0.91 inch) I2C/IIC 128x32 Serial 4-Pin OLED Display Module - White
- Product Code: EC-6768
- Availability: 334
-
Rs.199.00
- (Excluding 18% GST)
