OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display

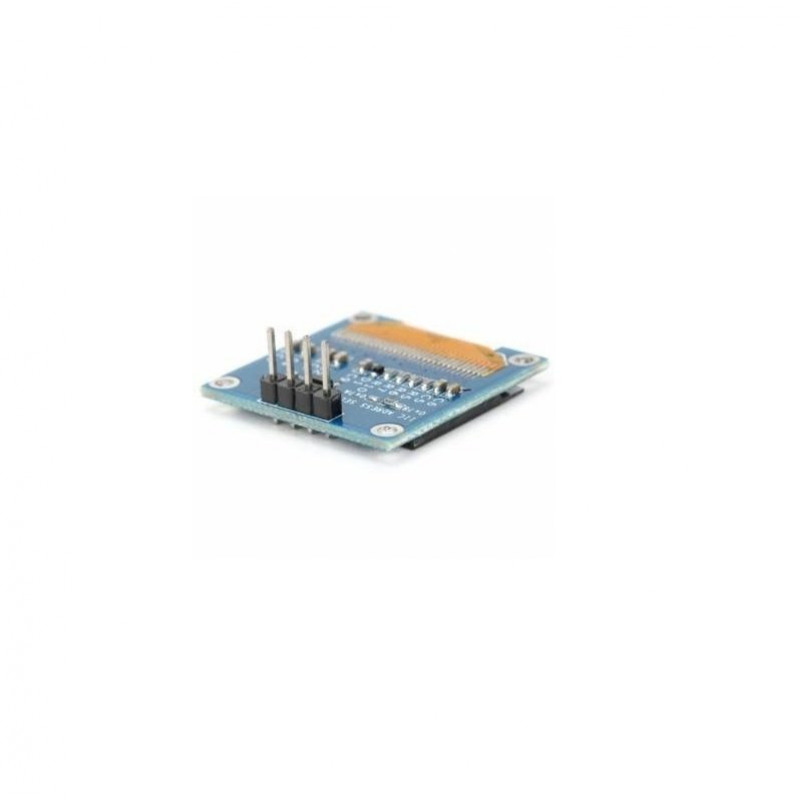

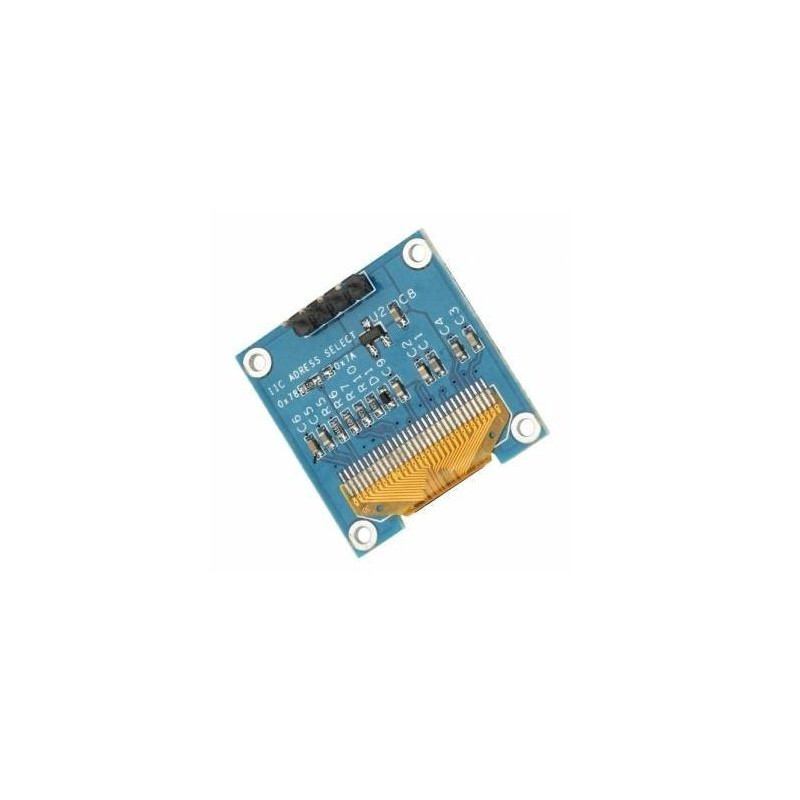

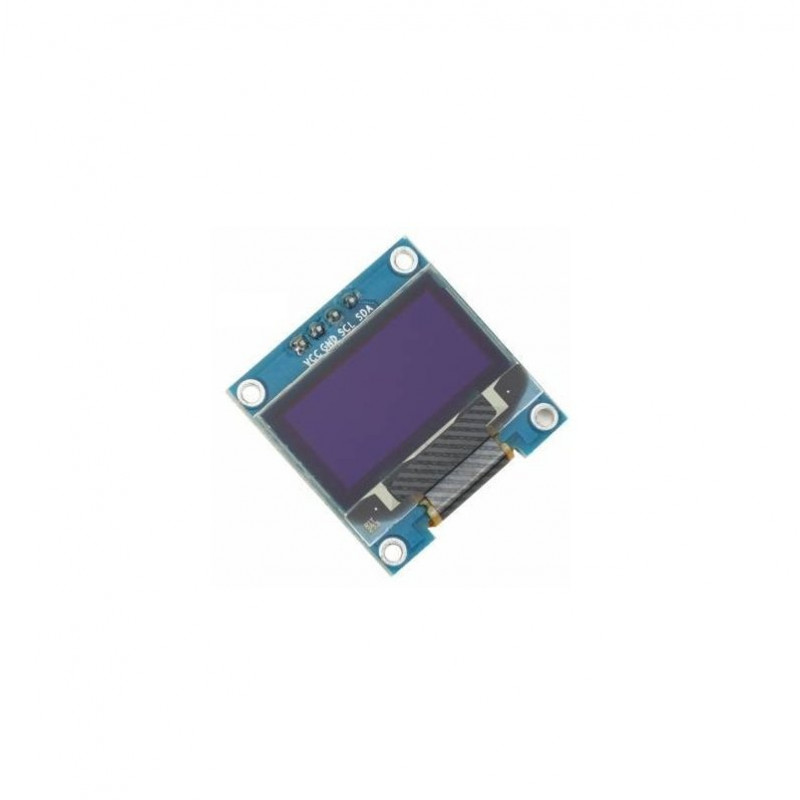

This 2.44 cm (0.96 Inch) I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It is having a resolution of 128x64. The package includes display board, display, 4 pin male header pre-soldered to board.
OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

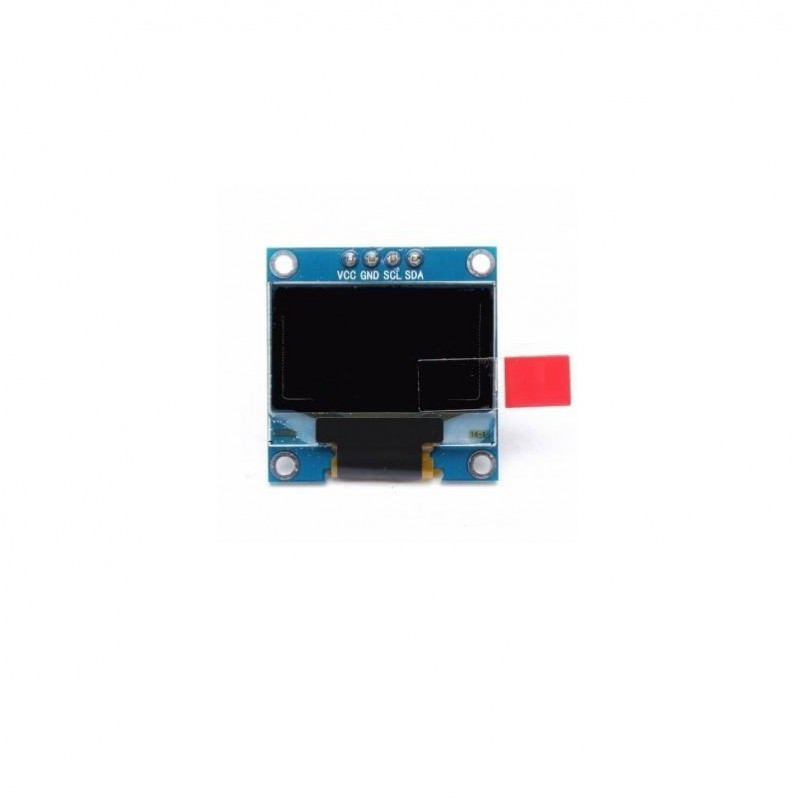

Interface pin for 4 PIN 128x64 OLED
- VCC: 3.3 volts 5 Volts
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data
Features:
- Super High Brightness (Adjustable)
- Super High Contrast (Adjustable)
- Embedded Driver/Controller
- Display size: 2.44 cm (0.96 Inch)
- Resolution radio:128 x 64
- Interface modes: I2C/IIC
- working voltage: 3.3V
- Control Chip: SSD1306
Package Includes:
1 x 2.44 cm (0.96 Inch) I2C/IIC 128x64 4pin OLED Display Module - Blue Color
Specifications:
| Display Size | 2.44 cm (0.96 inch) |
| Pixel Colour | Blue |
| Resolution | 128 x 64 Pixels |
| Driving Voltage | 3.3-5V |
| Operating Temperature | -40~70 Celsius |
| Interface Type | I2C IIC |
| Length (cm) | 2.75 cm |
| Width (cm) | 2.75 cm |
| Height (cm) | 1.1 cm |
| Weight (gm) | 7 gm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2.44 cm (0.96 Inch) I2C/IIC 128x64 OLED Display Module 4 Pin - Blue Color
- Product Code: EC-6769
- Availability: 1500
-
Rs.192.34
