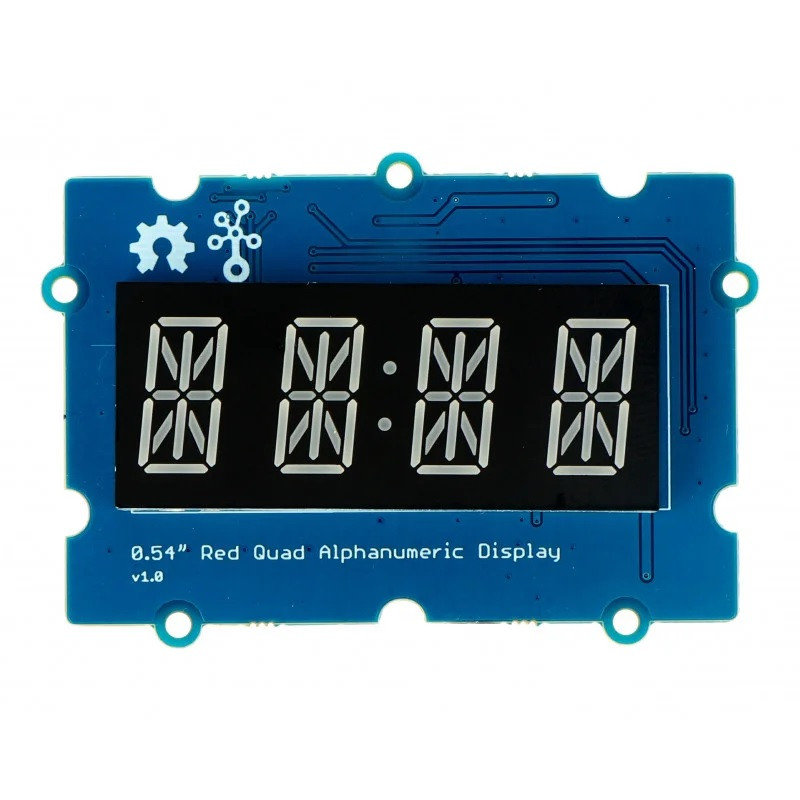

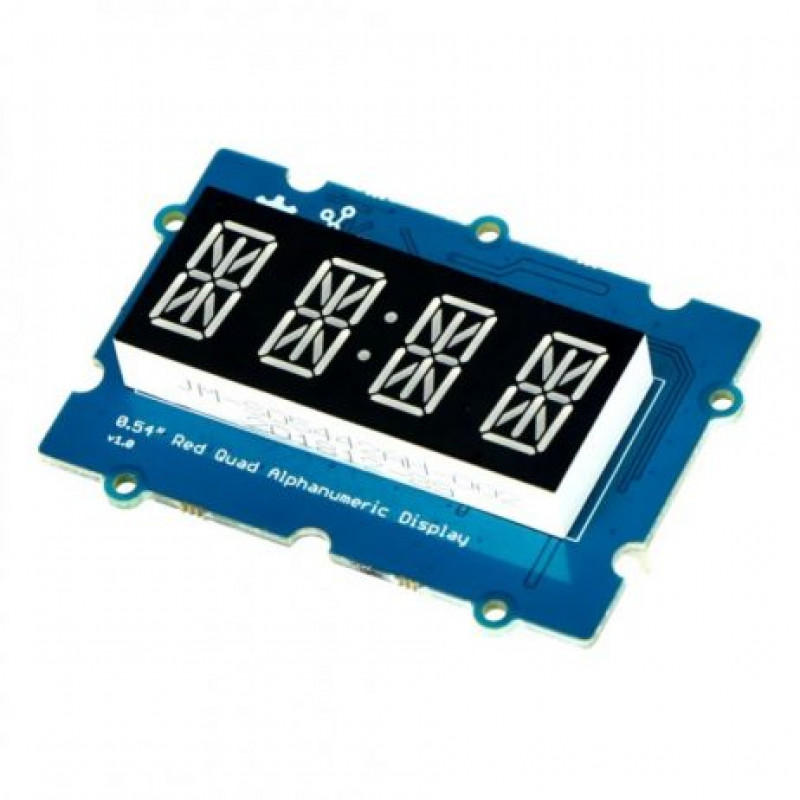

This module is a4 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube.The commonly used 7-segment display, such as ourGrove 4-Digit Displaycan only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, thats why we call italphanumeric display.
The digit height is 1.37cm (0.54 inch) and the red LED used in this module has super high brightness, so you can see it a few meters away.

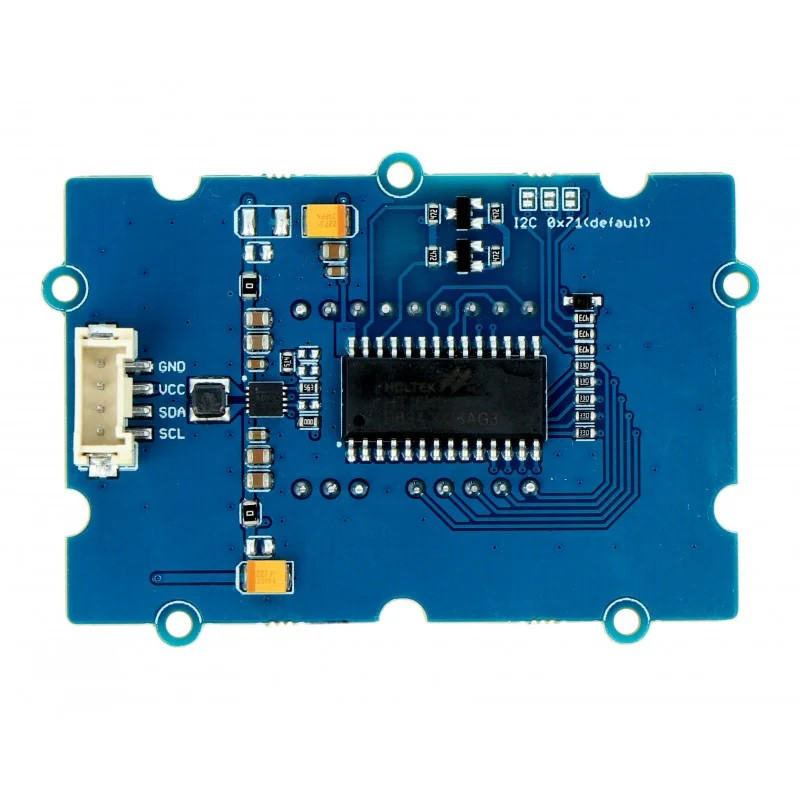

Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of onboard HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring, if you are using seeeduino, it is really plugged and play, easy peasy.
We have released a lot of displays for Arduino, raspberry pi, Beaglebone and other SBC(Single Board Computer), now we bring you the Grove 0.54 Red Quad Alphanumeric Display, you can use it to show a four-letter word, such as Love, or you can make it a clock. All in all, the 14-segment display means more possibility and creativity. We hope it will help you create more interesting projects.
Features:
- Can display all lettersand numbers
- Ultra-high brightness:30mcd
- Grove I2C only takes two IO pins
- Onboard drivers, easy to use
- Cathode display
Application:
- Industrial control indicators
- Digital clocks, thermometers, counters, multimeters
- Instrumentation readouts
- Other consumer applications
- LED Displays
Specification:
- Supply voltage 3.3V / 5V
- Operating ambient temperature -30C to 85C
- LED Display JM-S05442ASR-001
- LED Controller Driver HT16K33
- LED Color Red
- Ultra-high brightness 30mcd
- LED height 0.54inch
- LED segment 14
- Size 40 * 60mm
- Output interface I2C
- I2C Address(Selectable) 0x71(Default)

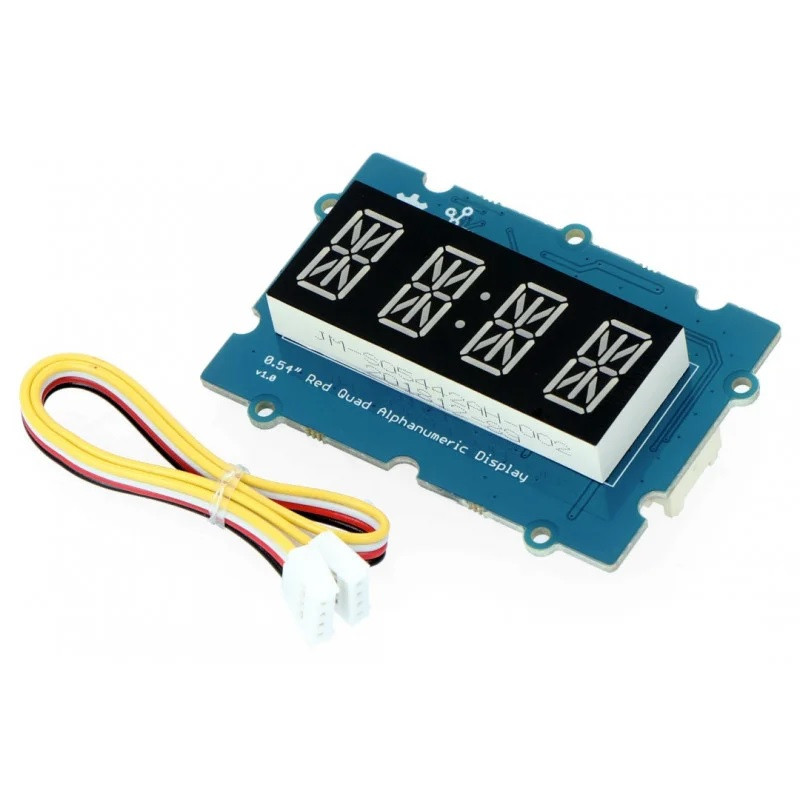

Package Includes :
1 x SeeedStudio Grove 1.37cm (0.54 inch) Red Quad Alphanumeric Display
1 x JST cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 895.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove 1.37cm (0.54 inch) Red Quad Alphanumeric Display
- Product Code: EC-8058
- Availability: Out Of Stock
-
Rs.843.00
- (Excluding 18% GST)
