Nextion is a Human Machine Interface(HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.
The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. Whats more and new? The audio, video, and animation play functions enrich users project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag .etc.
You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads.
- Model: NX1060P101-011C-I(HMI Capacitive Touch Display)
- NX1060P101-011C-I(10.1 IPS RGB 65K capacitive touchscreen)
- Onboard MCU 200MHz and up to 128MB for HMI project
- Built-in RTCEEPROM, 8 digital GPIOs (2 PWM capable)
- 4 pins (+5V, TX, RX, GND) TTL serial interface
- 300 nit Brightness with 1% interval adjustment
- Audio interface
- CE and RoHS Compliant
1 x XH2.54 4P Wire
1 x Power Supply Test Board
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 18524.82 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.

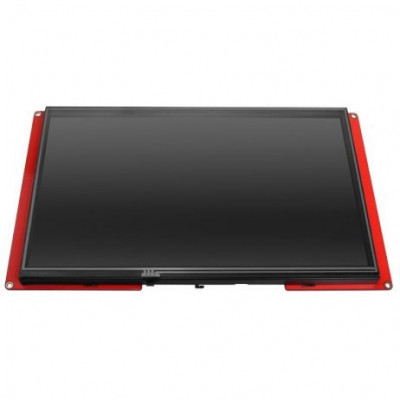

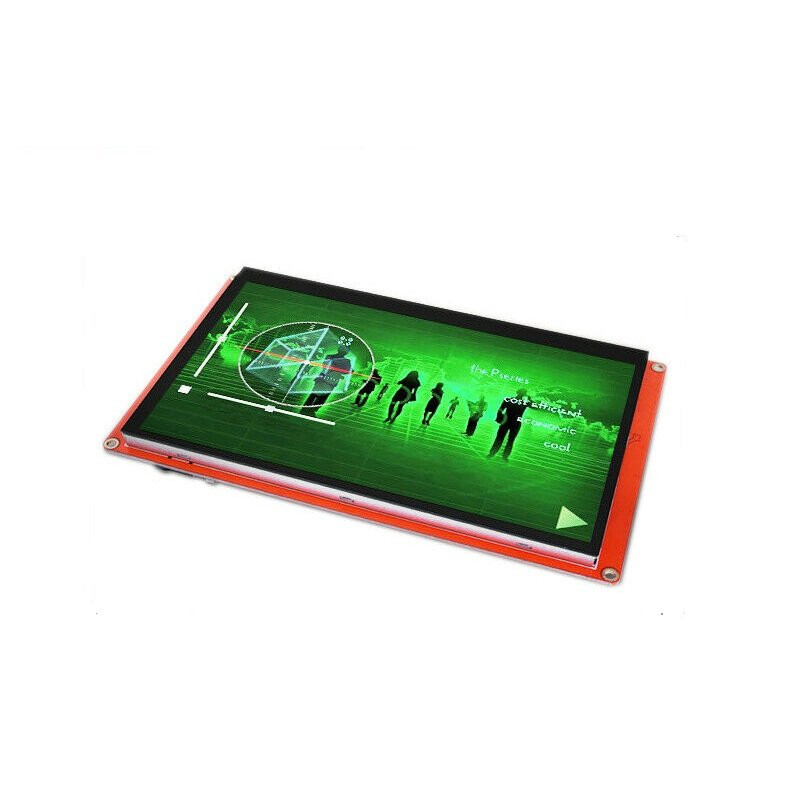

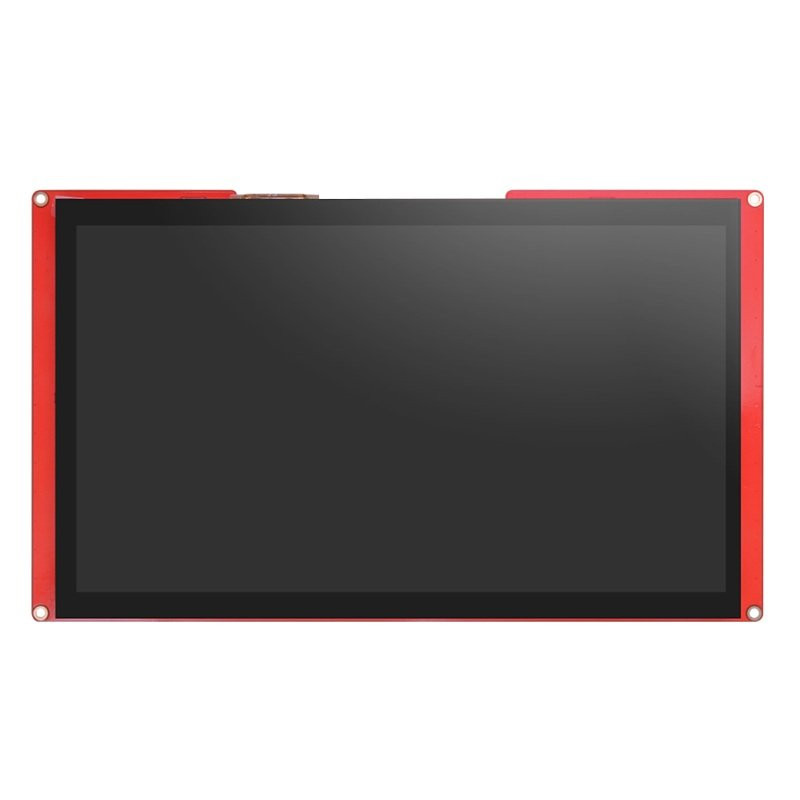

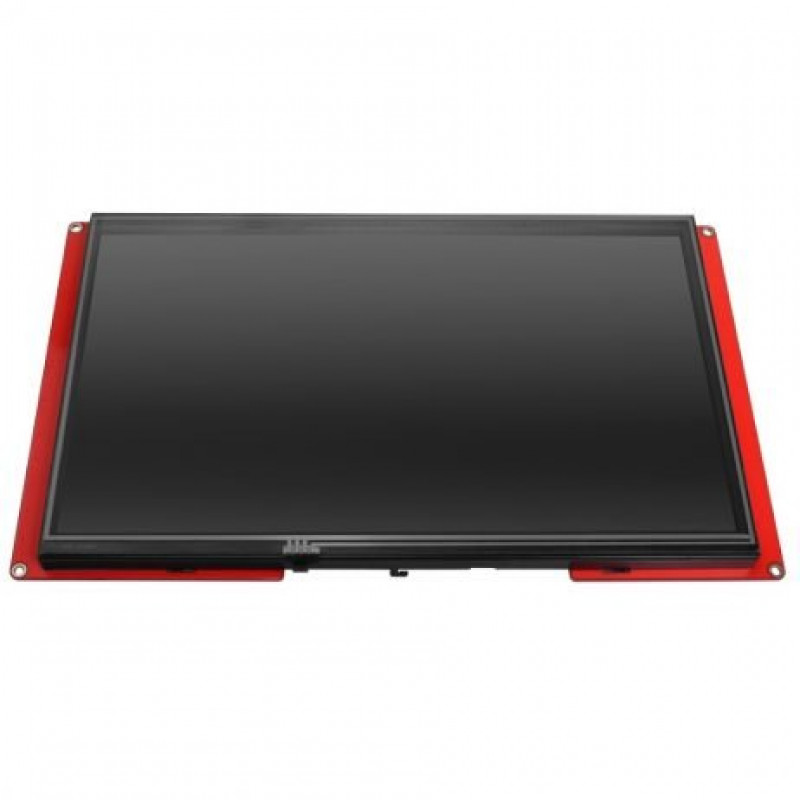

Nextion 10.1 inch Intelligent NX1060P101-011C-I HMI Capacitive Touch Display
- Product Code: EC-6750
- Availability: 10
- (Excluding 18% GST)
