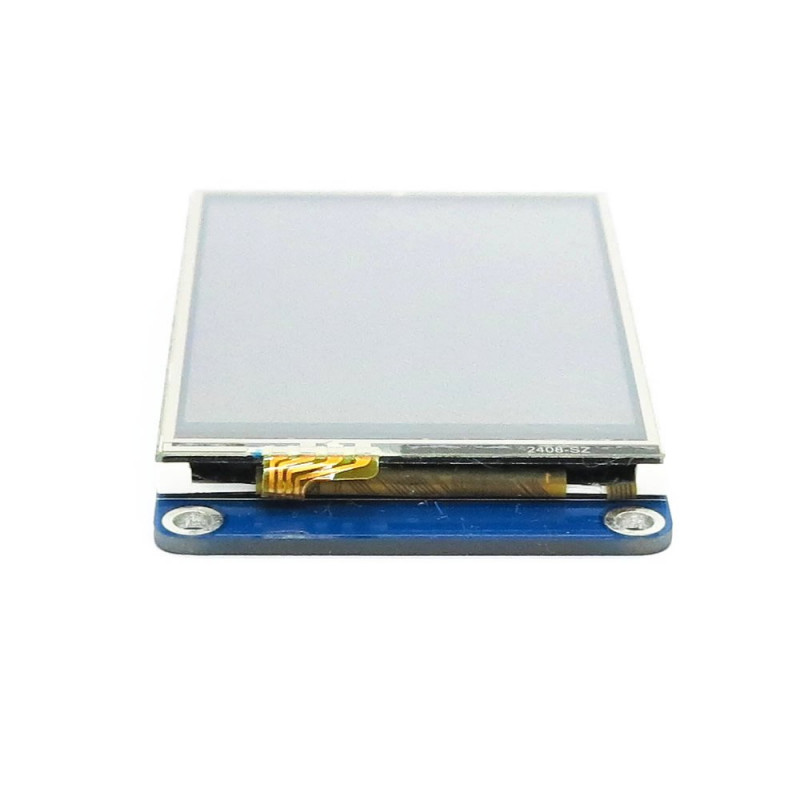

Nextion NX3224T024-Generic 2.4 TFT Intelligent Man Machine Interface HMI kernel LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor).The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART
Features:
- 320 x 240 Resolution
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel

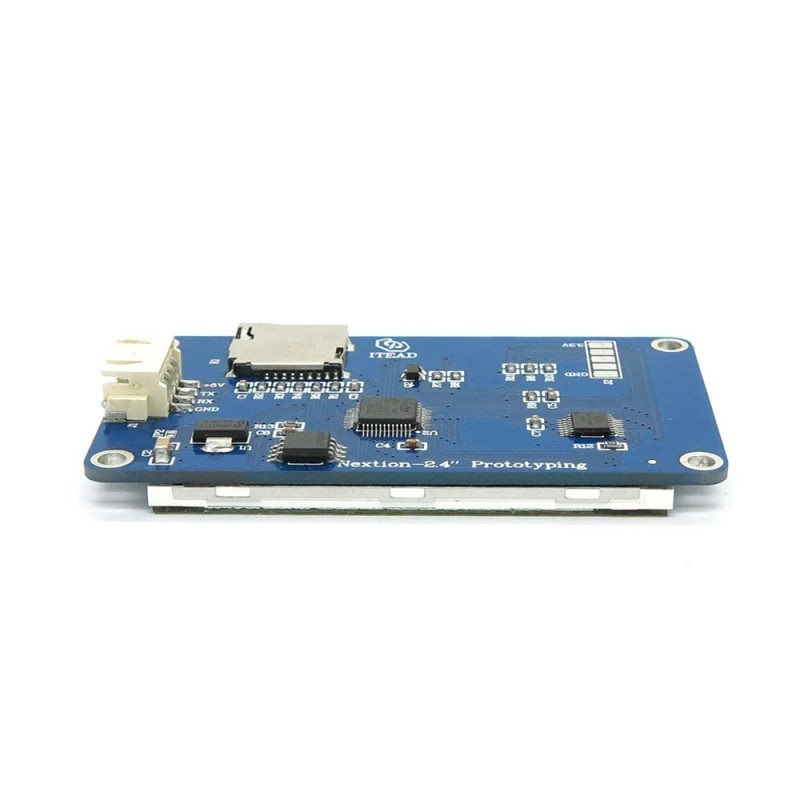

- Easy 4 pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data

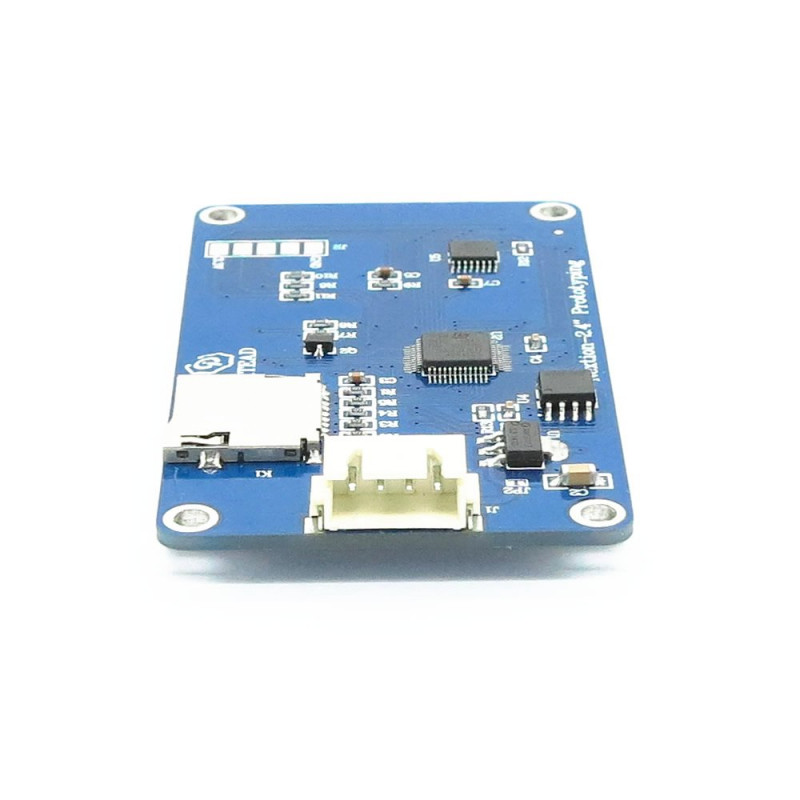

- Onboard micro-SD card for firmware upgrade
- Visual Area: 36.72mm(L)48.96mm(W)
- Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
- 5V90mA power consumption
- Generic using for all Arduino or Raspberry Pi project
- CE/EMC, RoHS certified (certificates)
Interfaces Performance:

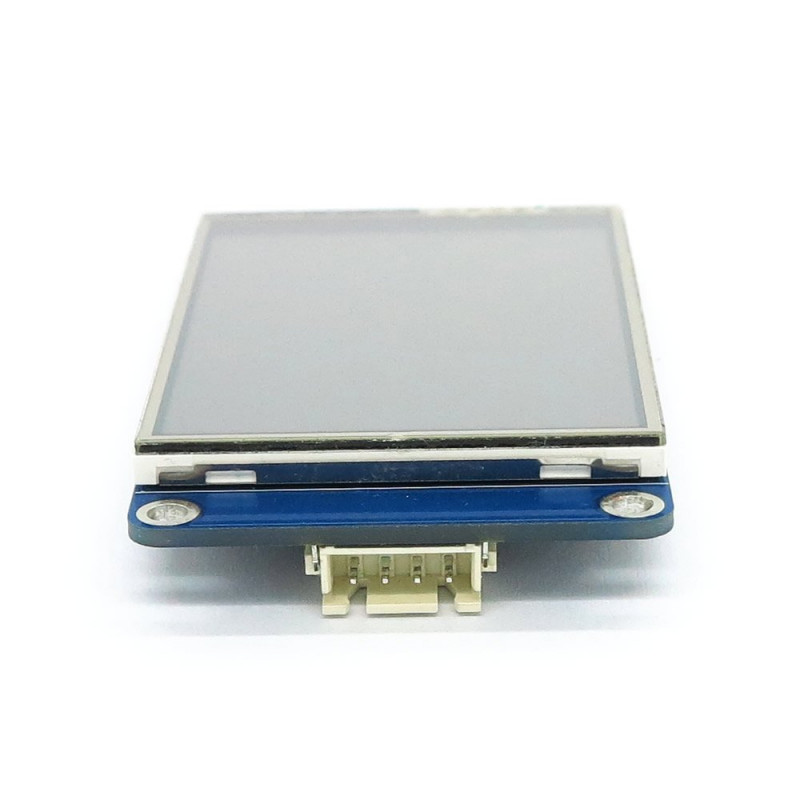

| Test Conditions | Min | Typical | Max | Unit | |
|---|---|---|---|---|---|
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output High Voltage | IOH=-1mA | 3.0 | 3.2 | V | |
| Output low Voltage | IOL=1mA | 0.1 | 0.2 | V | |
| Input High Voltage | 2.0 | 3.3 | 5.0 | V | |
| Input low Voltage | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card | ||||

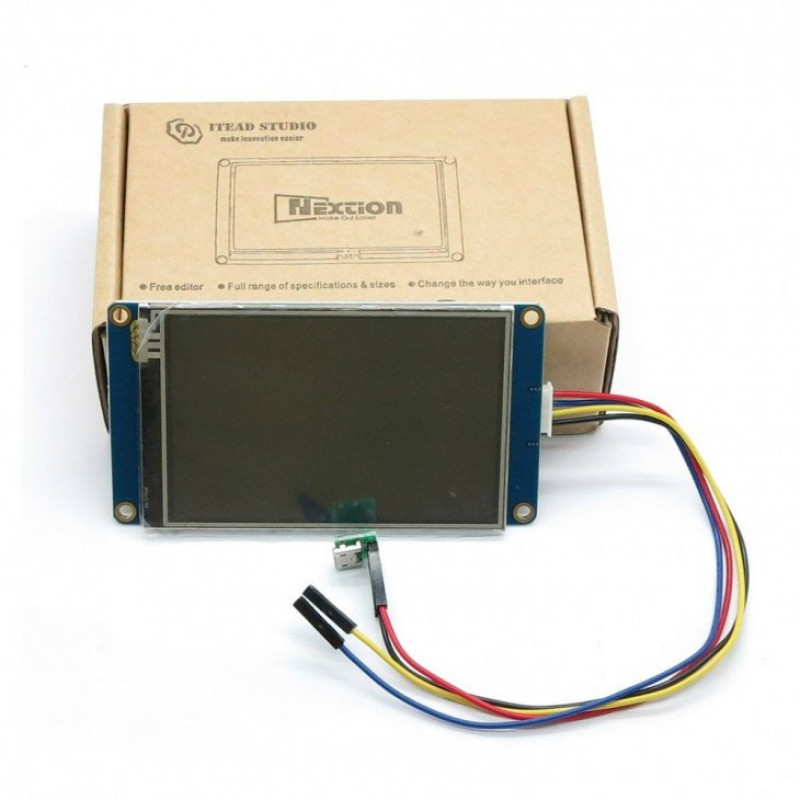

Package Includes:

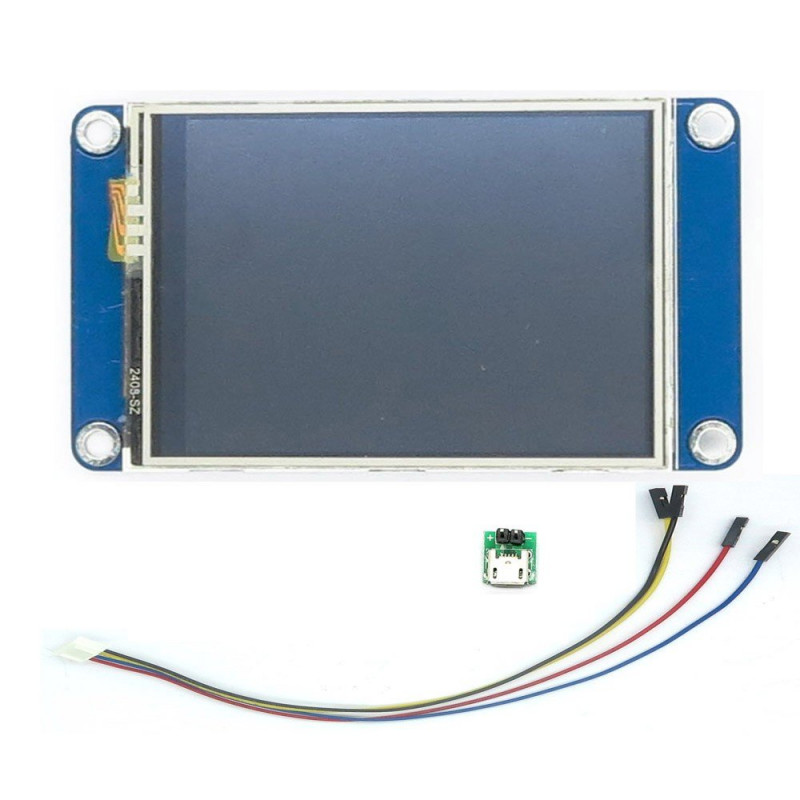

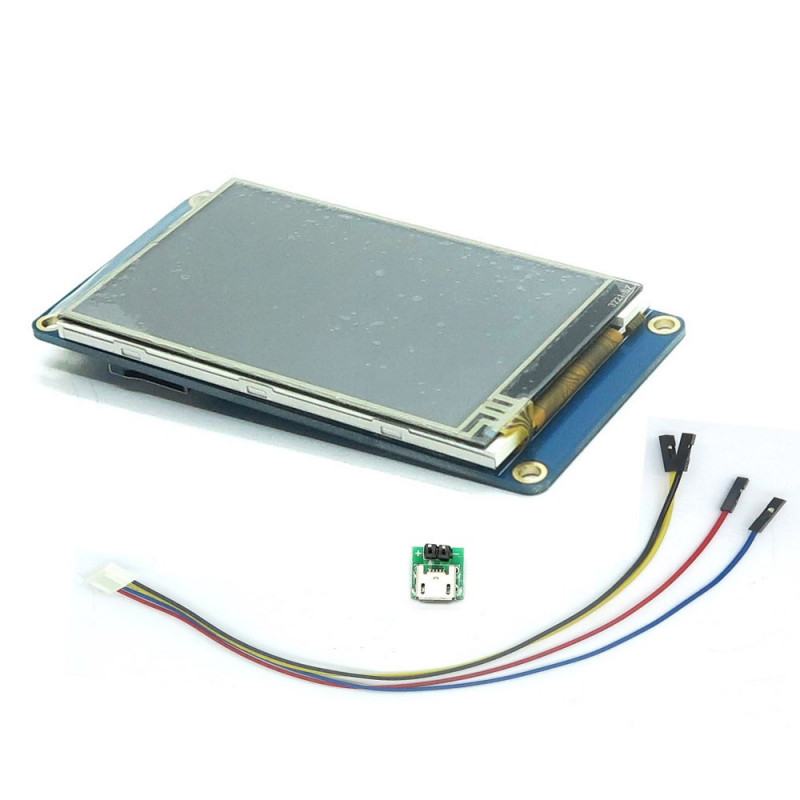

1 x Nextion NX3224T024 Generic 2.4 TFT Intelligent LCD Touch Display
1 x Connecting Cable
1 x Power Supply Test Board
Specifications :-

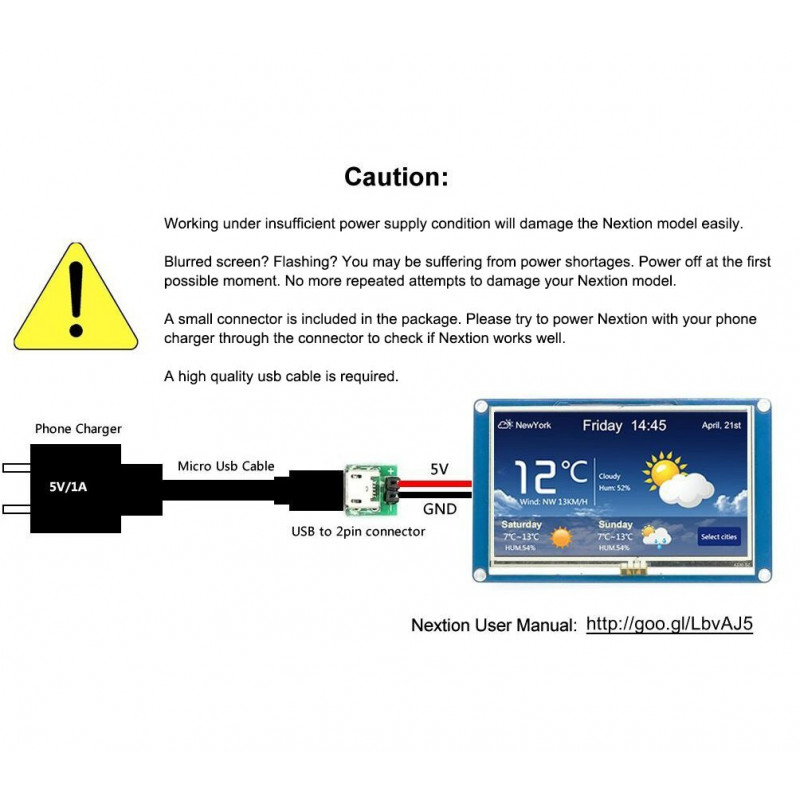

| Model No. | NX3224T024 |
| Display Type | NX3224T024_011R (R: Resistive touchscreen) |
| Operating Voltage (VDC) | 4.75 ~ 7 |
| Max. Operating Current (mA) | 90 |
| Display Layout Size (L x W x H) mm | 74.4 42.9 5.8 |
| Net weight (gm) | 31 |
| Touch Type | Yes |
| Colors | 65K (65536) |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range (C) | -20 to 70 |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory | 4 MB |
| RAM | 3584 BYTE |
| Brand/Manufacturer | Nextion |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2948.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Nextion 2.4 inch BASIC NX3224T024 TFT ManMachine Interface HMI kernel LCD Touch Display
- Product Code: EC-6734
- Availability: Out Of Stock
-
Rs.2499.00
- (Excluding 18% GST)
